SECTION 7—FOOTREST/ ANTI-TIPPER
Everyday and Sport Series Wheelchairs
68

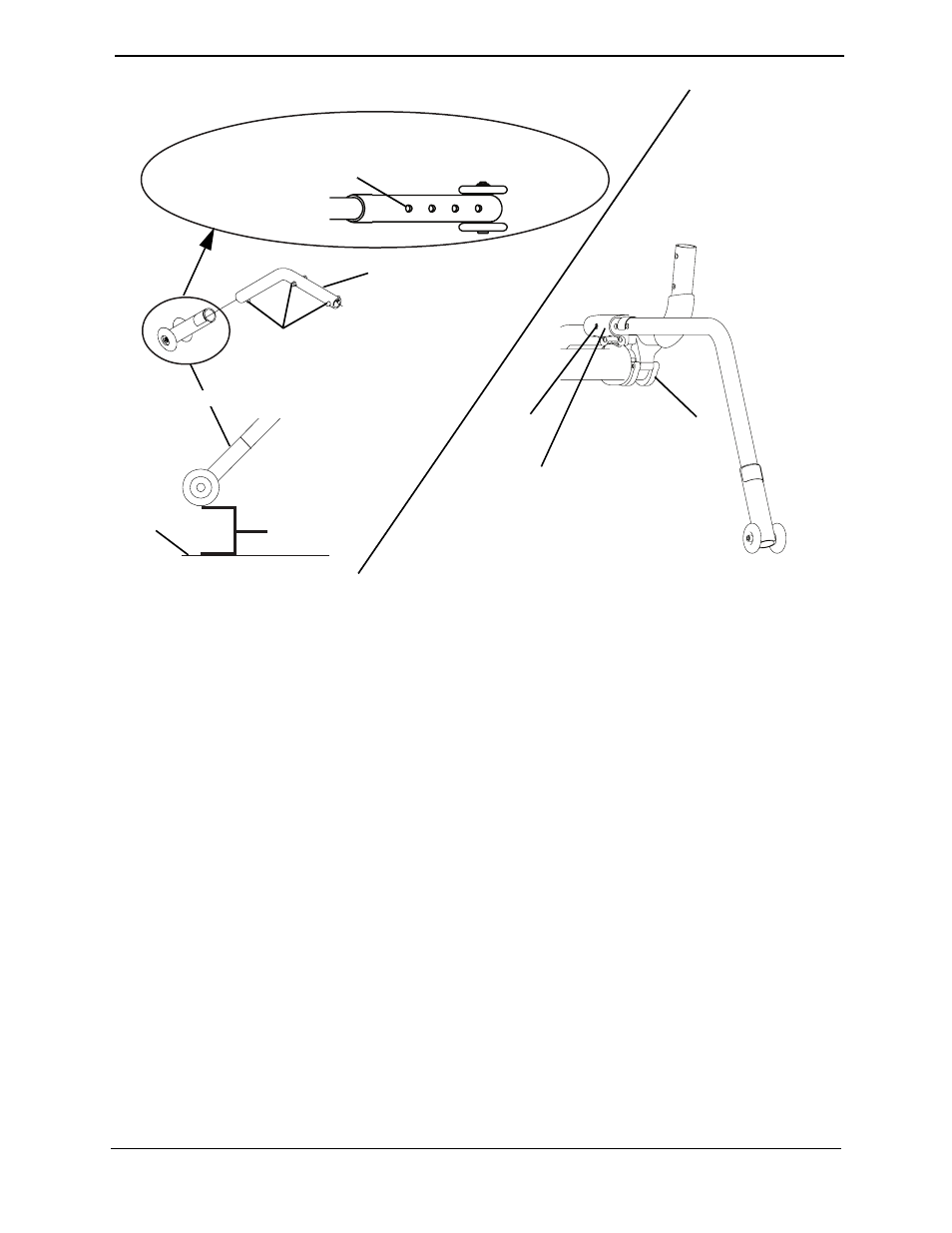

FIGURE 7.1 Adjusting/Replacing Anti-tipper
Installing/Removing/Adjusting Swivel Anti-Tip
NOTE: For this procedure, refer to FIGURE 7.2.
NOTE: This applies to any Terminator ordered with swivel anti‐tip.
Installing/Depth Adjustment
1. Loosen set screws on anti‐tip receivers (FIGURE 7.2).
2. Slide the swivel anti‐tip into the anti‐tip receivers. Position swivel anti‐tip so it is even
with wheels on chair or extends beyond them. Tighten set screws.
Removing
1. Loosen set screws on anti‐tip receivers (FIGURE 7.2).
2. Slide the swivel anti‐tip out of the receivers.
DETAIL “A” - ANTI-TIPPER
ADJUSTMENT HOLES
Top Adjustment Hole
Anti-Tipper Bar
Release Buttons
Camber Clamp
Ground/
Floor
1-1/2 to 2 inch
Clearance
Anti-Tipper
Socket
Hole
Anti-Tipper
