SECTION 7—FOOTREST/ ANTI-TIPPER
Part No 1114851 67 Everyday and Sport Series Wheelchairs
Adjusting Anti-tipper
ƽ WARNING
When anti-tippers are used, anti-tippers MUST be adjusted to maintain a 1-1/2 to
2-inch clearance between the bottom of the anti-tipper wheels and the ground/
floor. This spacing should always be checked whenever adjustments/changes are
made to the wheelchair. Failure to maintain proper spacing may result in the chair
tipping over backward causing serious injury or property damage.
1. Press in the release button that secures the anti‐tipper wheels to the anti‐tipper bar.
2. Adjust the height of the anti‐tipper wheels to between 1‐1/2 and 2‐inches of the
ground/floor.
3. Repeat STEPS 1‐2 for the opposite anti‐tipper.
Replacing Anti-tipper
ƽ WARNING
When anti-tippers are used, anti-tippers MUST be adjusted to maintain a 1-1/2 to
2-inch clearance between the bottom of the anti-tipper wheels and the
ground/floor. This spacing should always be checked whenever adjustments/changes
are made to the wheelchair. Failure to maintain proper spacing may result in the
chair tipping over backward causing serious injury or property damage.
1. Press in the release button that secures the existing anti‐tipper to the anti‐tipper socket
and remove the anti‐tipper from the anti‐tipper socket.
2. Insert the new anti‐tipper into the anti‐tipper socket until release button engages.
3. Press in the release button on the anti‐tipper bar and install the anti‐tipper wheels onto
the new anti‐tipper bar.
4. Repeat STEPS 1‐3 for the opposite anti‐tipper.
5. Measure the distance between the bottom of the anti‐tipper wheels and the ground
floor.
6. If necessary, adjust the height of the anti‐tippers. Refer to Adjusting Anti‐tipper on
page 67.

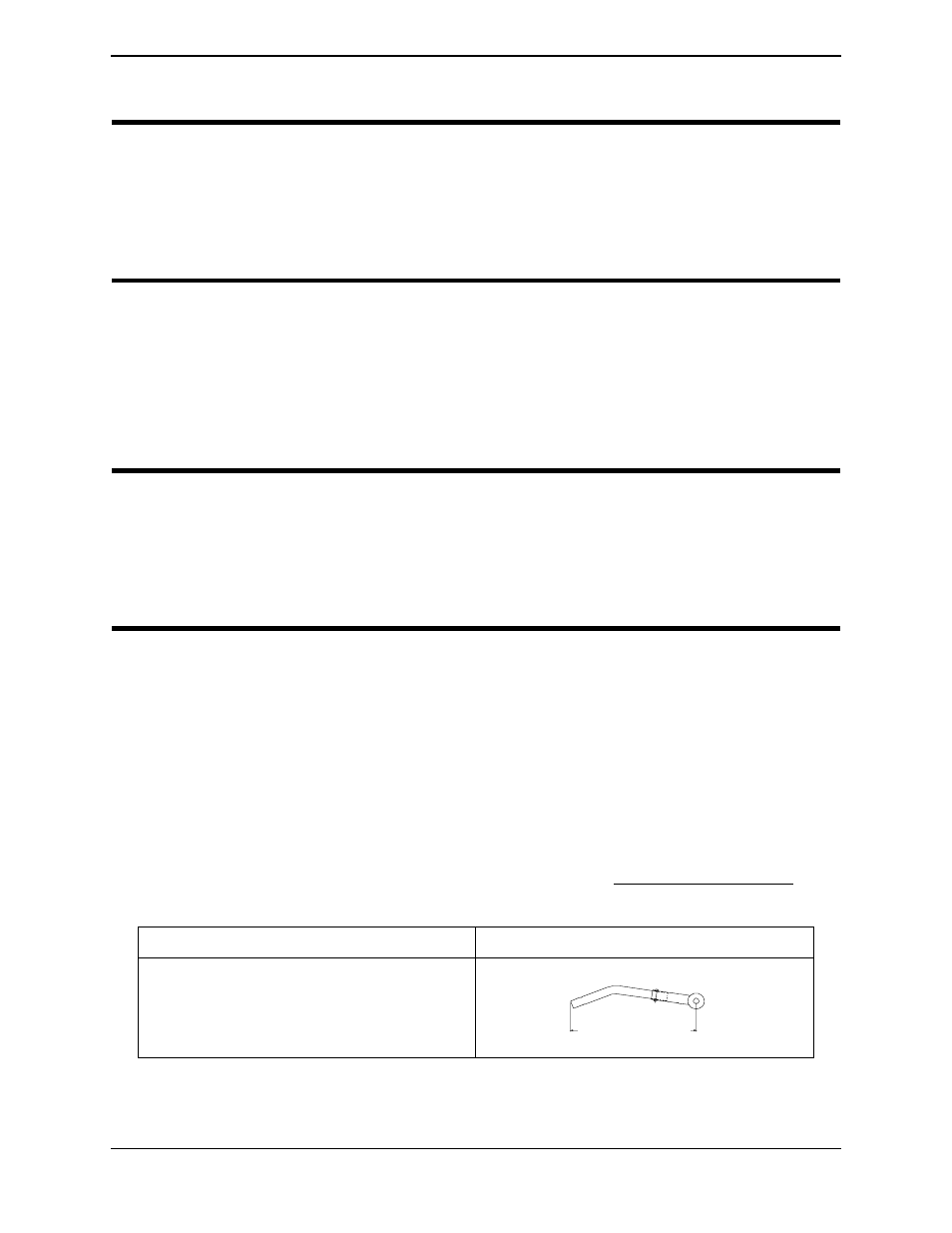

PART NUMBER MEASUREMENT
1112178
21 - 1/8-inches
