SECTION 5—WHEELS
41
Everyday and Sport Series Wheelchairs
Adjusting Rear Wheel Camber
NOTE: For this procedure, refer to FIGURE 5.7.
Camber Tube 2000
The axle tube must be replaced to change the camber. Refer to Replacing Axle Tube on
page 49.
A4 Camber System
NOTE: Perform this procedure to one side of
the wheelchair at a time for ease of adjustment.
1. Open the camber clamp. Refer to
Opening/Closing Camber Clamps on
page 39.
2. Pull one rear wheel with camber insert
out of axle tube.
3. Remove the rear wheel from the
camber insert.
4. Rotate the camber insert 180°.
5. Reinstall the rear wheel into the camber
insert.

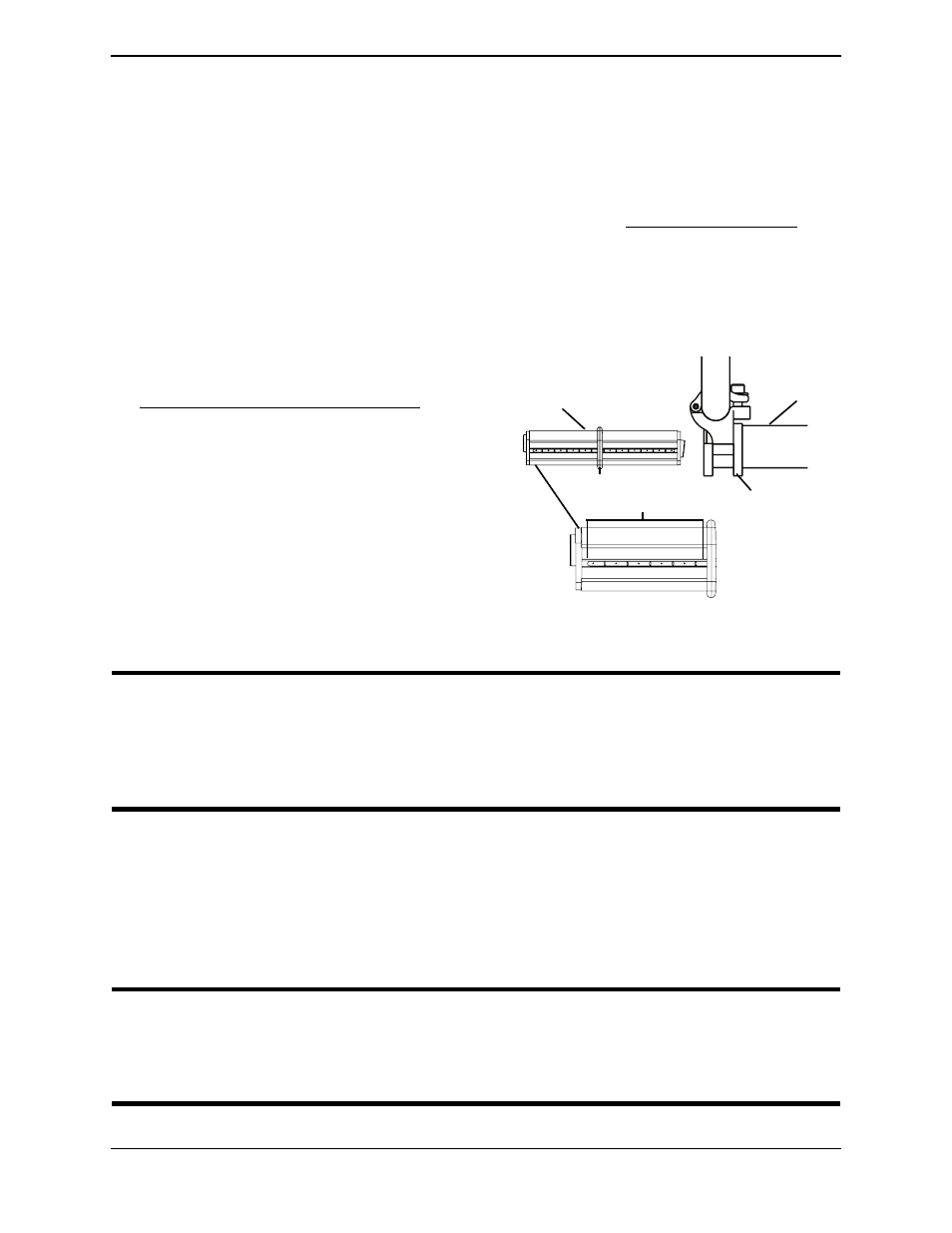

FIGURE 5.7 Adjusting Rear Wheel Camber
ƽ WARNING
NEVER position the camber inserts in the axle tube with more than 3-inches (12
indexing marks showing) of the camber insert outside of the axle tube. The camber
inserts will not be securely tightened in the axle tube. Possible injury to the user
and/or damage to the wheelchair may occur.
6. Position the camber insert to the desired position. Make sure there is no more than
3 inches (12 indexing marks) of the camber inserts outside of the axle tube.
7. Slide the indexing ring on the camber insert until it is flush with the camber clamp.
NOTE: Before using the wheelchair, make sure both camber inserts are set to the same indexing
mark. This will make sure the distance between the rear wheel and the wheelchair is the same on
both sides.
ƽ WARNING
QUICK RELEASE LEVERS - Make sure the quick release levers are pointing
towards the rear of the wheelchair and are in the closed position before using the
wheelchair, otherwise personal injury or damage to the wheelchair may occur.
Rear View of Wheelchair
Camber
Clamp
Axle
Tube
Camber Insert -
Rotate 180°
Indexing Ring
Indexing Marks
