SECTION 6—SEAT
Part No 1114851 59 Everyday and Sport Series Wheelchairs

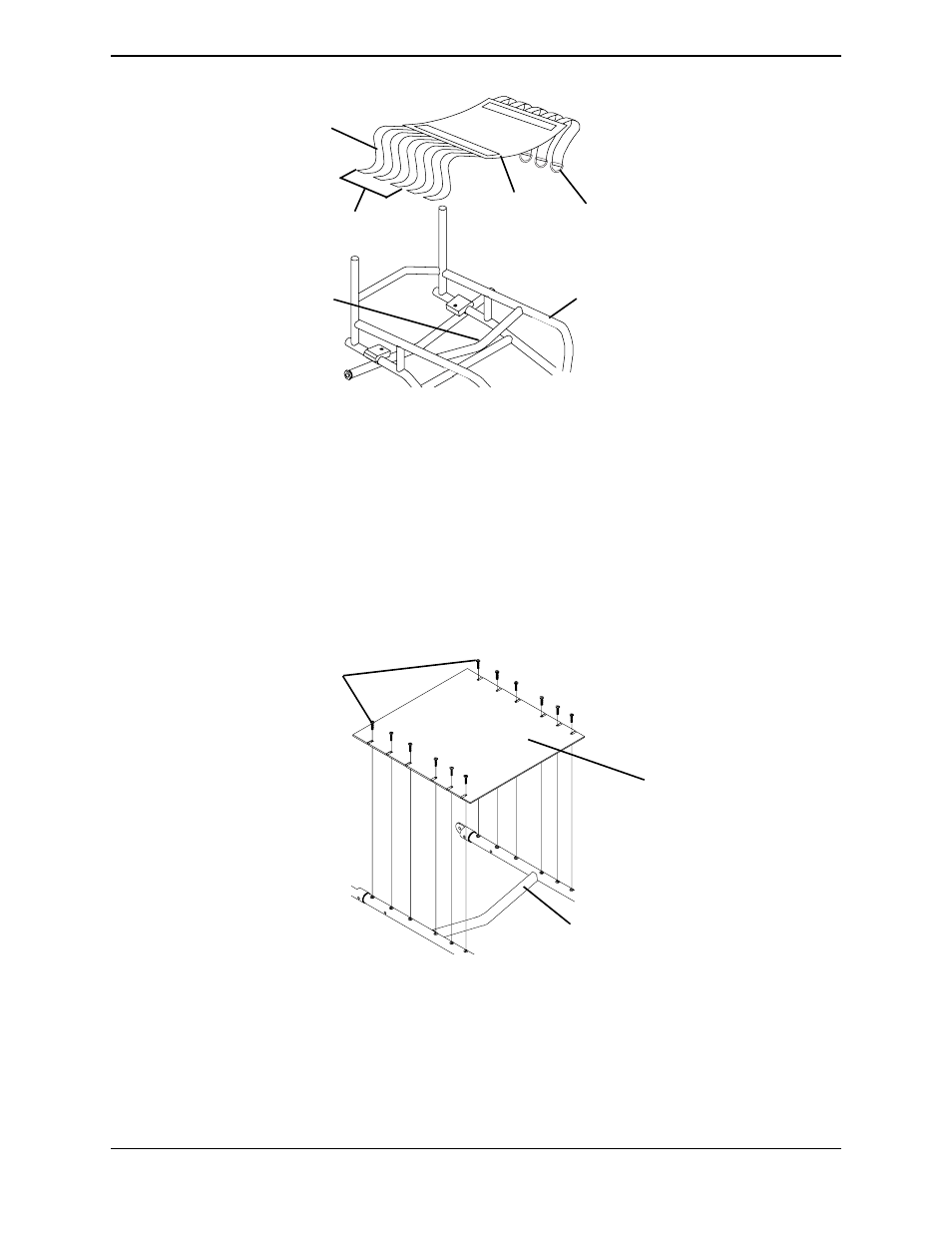

FIGURE 6.1 Replacing Adjustable Tension Seat Upholstery
Replacing Screw-On Seat Upholstery
NOTE: For this procedure, refer to FIGURE 6.2.
1. Remove the seat cushion from the wheelchair.
2. Remove the twelve mounting screws that secure the existing seat upholstery to the
seat frame.
3. Remove the existing seat upholstery.
FIGURE 6.2 Replacing Screw-On Seat Upholstery
Fastening Flaps
Seat
Upholstery Adjuster Straps (Rear)
Wheelchair Frame
(Top Bar)
Top Crossbar
Anchor Loop
Mounting
Screws
Seat
Upholstery
Seat Frame
