SECTION 5—WHEELS
Part No 1114851 49 Everyday and Sport Series Wheelchairs
ƽ WARNING
QUICK RELEASE LEVERS - Make sure the quick release levers are pointing
towards the rear of the wheelchair and are in the closed position before using the
wheelchair, otherwise personal injury or damage to the wheelchair may occur.
STANDARD AND SUSPENSION CAMBER CLAMPS - Make sure the hex screws
are securely tightened before using the wheelchair, otherwise personal injury or
damage to the wheelchair may occur.
4. Close the camber clamp. Refer to Opening/Closing Camber Clamps on page 39.
5. Repeat STEPS 1‐4 for opposite side of wheelchair.

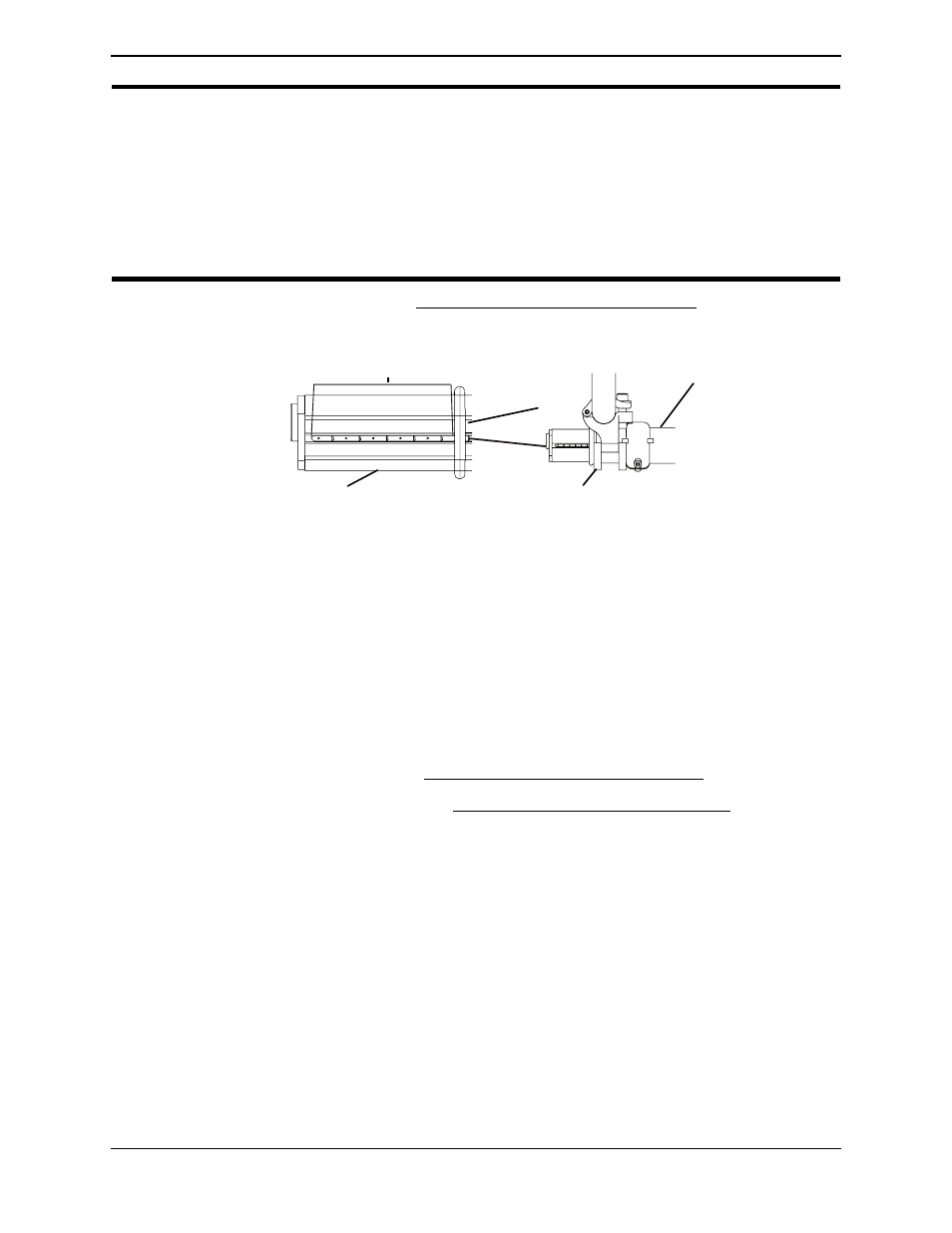

FIGURE 5.14 Adjusting Wheelbase Width - A4 Camber System
Replacing Axle Tube
NOTE: For this procedure, refer to FIGURE 5.15.
NOTE: The camber bar is always mounted to the bottom of the wheelchair frame.
NOTE: There is no need to remove the two camber clamps when replacing the axle tube.
1. A4 Camber System Only ‐ Note the position of the camber inserts so they can be
installed at the same position in the new axle tube.
2. Open the camber clamps. Refer to Opening/Closing Camber Clamps on page 39.
3. Remove the two rear wheels. Refer to Removing/Installing Rear Wheels on page 35.
4. A4 Camber System Only ‐ Remove the camber inserts positioned in the axle tube.
5. A4 Camber System Only ‐ Loosen, but DO NOT remove the two phillips screws that
secure the toe adjustment rings to the axle tube.
6. Pull the existing axle tube through one of the camber clamps.
7. A4 Camber System Only ‐ Remove toe adjustment rings from the existing axle tube.
8. Pull the existing axle tube through the other camber clamp and remove from the
wheelchair.
9. Slide the new axle tube through one of the camber clamps.
Axle
Tube
Camber Clamp Camber Insert
Indexing Marks
Indexing
Ring
