SECTION 4—BACK
Everyday and Sport Series Wheelchairs
34
*NOTE: Holes numbered from bottom to top for reference only. (There are no numbers on the back
canes.)
**NOTE: There is a 1‐inch adjustment pin on the back cane insert tube. To raise back to maximum
height, first make adjustment to the back cane inserts.
3. Reinstall the fastening flaps onto the back canes.
NOTE: The fastening flap with logo is for the left back cane.
NOTE: Right and left is determined by sitting in the wheelchair.
4. Adjust the new back upholstery to the desired tautness. Refer to Adjustable Tension

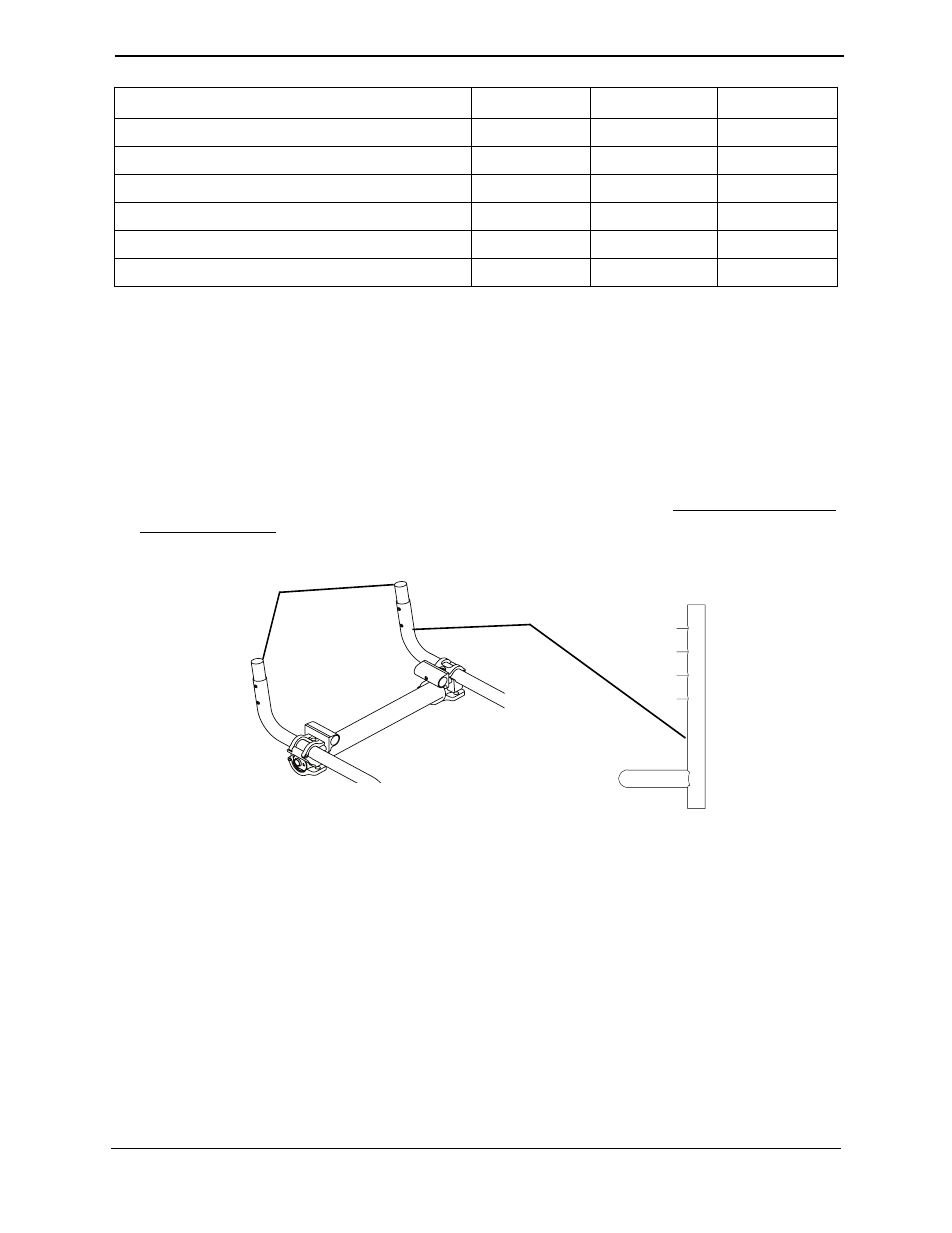

FIGURE 4.5 Back Height Adjustment (Adjustable Backs Only)
ORIGINAL BACK HEIGHT (IN INCHES)
11 - 15
14 - 18
16 - 20
Hole* Number
1
11
14
16
2
12
15
17
3
13
16
18
4
14
17
19
**
15
18
20
Back
Cane
Insert
Hole
Number
4
3
2
1
