SECTION 5—WHEELS
Everyday and Sport Series Wheelchairs 46 Part No 1114851
ƽ WARNING
STANDARD AND SUSPENSION CAMBER CLAMPS - Make sure the hex screws
are securely tightened before using the wheelchair, otherwise personal injury or
damage to the wheelchair may occur.
3. Close the camber clamp. Refer to Opening/Closing Camber Clamps on page 39.
NOTE: Rear wheels are removed from the
drawings for clarity, there is no need to remove
rear wheels from the wheelchair during
adjustment.
NOTE: FIGURE 5.11 shows one example of
how the adjustment rings can be positioned.

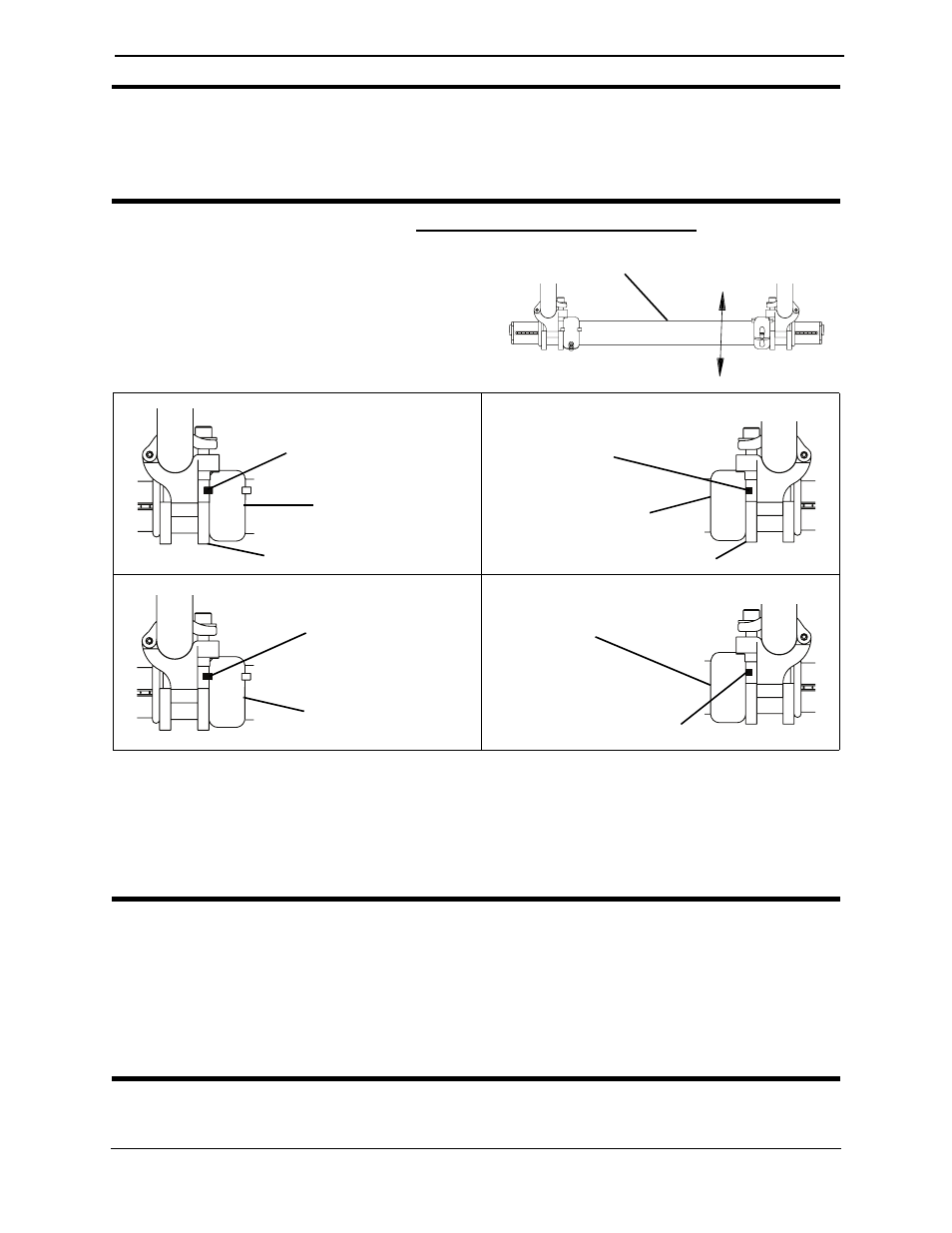

FIGURE 5.11 Adjusting Toe In/Toe Out - A4 Camber System - Fine Adjustment
Adjusting Wheelbase Length (Adjusting Center of
Gravity)
ƽ WARNING
ALWAYS perform this procedure in the presence of an assistant. The position of
the footrest, camber tube, back angle, the tautness of the back upholstery as well as
the user's condition are directly related to the wheelchairs stability. Any change to
one or any combination of the five may cause the wheelchair to decrease in stability.
Use EXTREME caution when using a new seating position. The addition of anti-tip-
pers may be required.
NOTE: For this procedure, refer to FIGURE 5.12.
Axle Tube - Rotates Up and Down
Stop - Not touching
camber clamp
Adjustment Ring
Camber Clamp
Adjustment Ring
Camber Clamp
Stop - In position for one
camber, touching camber clamp
Stop - In position for one
camber, touching
camber clamp
Adjustment Ring
Stop - Not touching
camber clamp
Adjustment Ring
