12
NOTE:.DIAGRAMS.&.ILLUSTRATIONS.ARE.NOT.TO.SCALE.

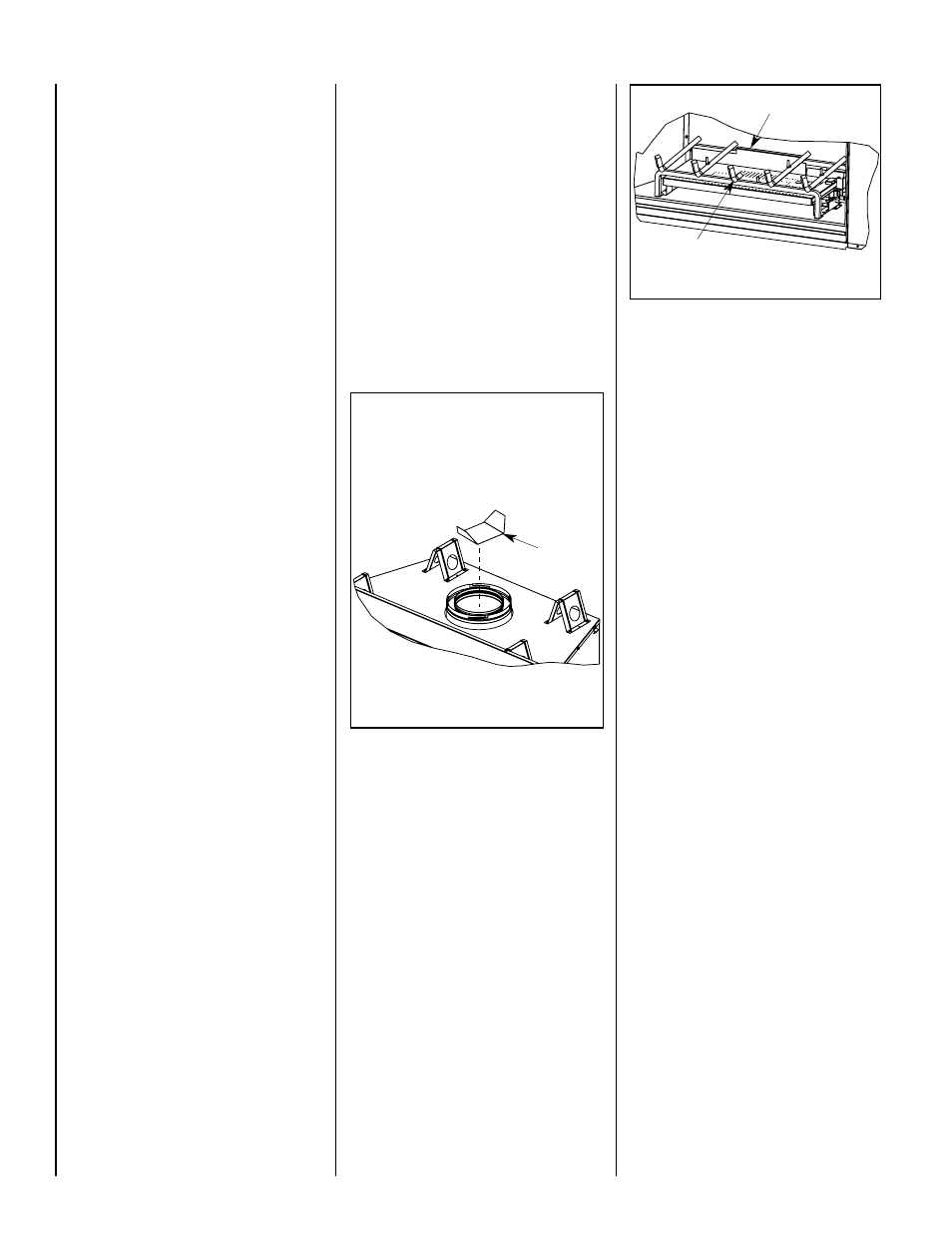

Figure 15
Figure 16
AIR INLET BAFFLE
GRATE
VENT RESTRICTOR INSTALLATION
RESTRICTOR
APPLIANCE VENT OUTLET
Install.the.restrictor.as.shown.from
inside.the.unit,.in.the.inner.fireplace.collar.
When.vertically.terminating.the.vent.system.above
the.roof,.install.a.vent.restrictor.in.the.top.vent.of
the.fireplace.outlet.
Step 3. INSTALL THE VENT SYSTEM .
General Information
These instructions should be used as a guide-
line and do not supersede local codes in any
way. Install vent according to local codes,
these instructions, the current National Fuel
Gas Code (ANSI-Z223.1) in the USA or the
current standards of CAN/CGA-B149.1 and
-B149.2 in Canada.
Ensure clearances are in accordance with
local installation codes and the requirements
of the gas supplier.
Dégagement.conforme.aux.codes.d'installation.
locaux. et. aux. exigences. du. foumisseunde.
gaz.
Use only approved venting components.
See Approved Vent Components on
Page 2.
These fireplaces must be vented directly
to the outside.
The. vent. system. may. not. service. multiple.
appliances,.and.must.never.be.connected.to.a.
flue.serving.a.solid.fuel.burning.appliance..The..
vent.pipe.is.tested.to.be.run.inside.an.enclosing.
wall.(such.as.a.chase)..There.is.no.requirement.
for.inspection.openings.in.the.enclosing.wall.at.
any.of.the.joints.in.the.vent.pipe..
Installation of Vent Restrictor
A.vent.restrictor.may.be.needed.with.this.appli-
ance...The.restrictor.is.installed.in.the.appliance.
top.flue.outlet.as.shown.in. Figure 15,
For vertical venting from 6 feet to 12 feet or
more, from the top of the fireplace to the top
of the termination, the installation of a vent
restrictor is required.
If.necessary,.install.a.vent.restrictor.in.the.ap-
pliance.flue.outlet.as.shown.in. Figure 15..It.is.
held.in.place.by.friction,.only.
Note: The restrictor is included within the
firebox.
Select Venting System - Horizontal or Verti-
cal
With. the. appliance. secured. in. framing,. de-
termine.vent.routing.and.identify.the.exterior.
termination.location..The.following.sections.
describe.vertical.(roof).and.horizontal.(exterior.
wall).vent.applications..Refer.to.the.section.
relating.to.your.installation. A list of approved
venting components is shown on Page 30.
