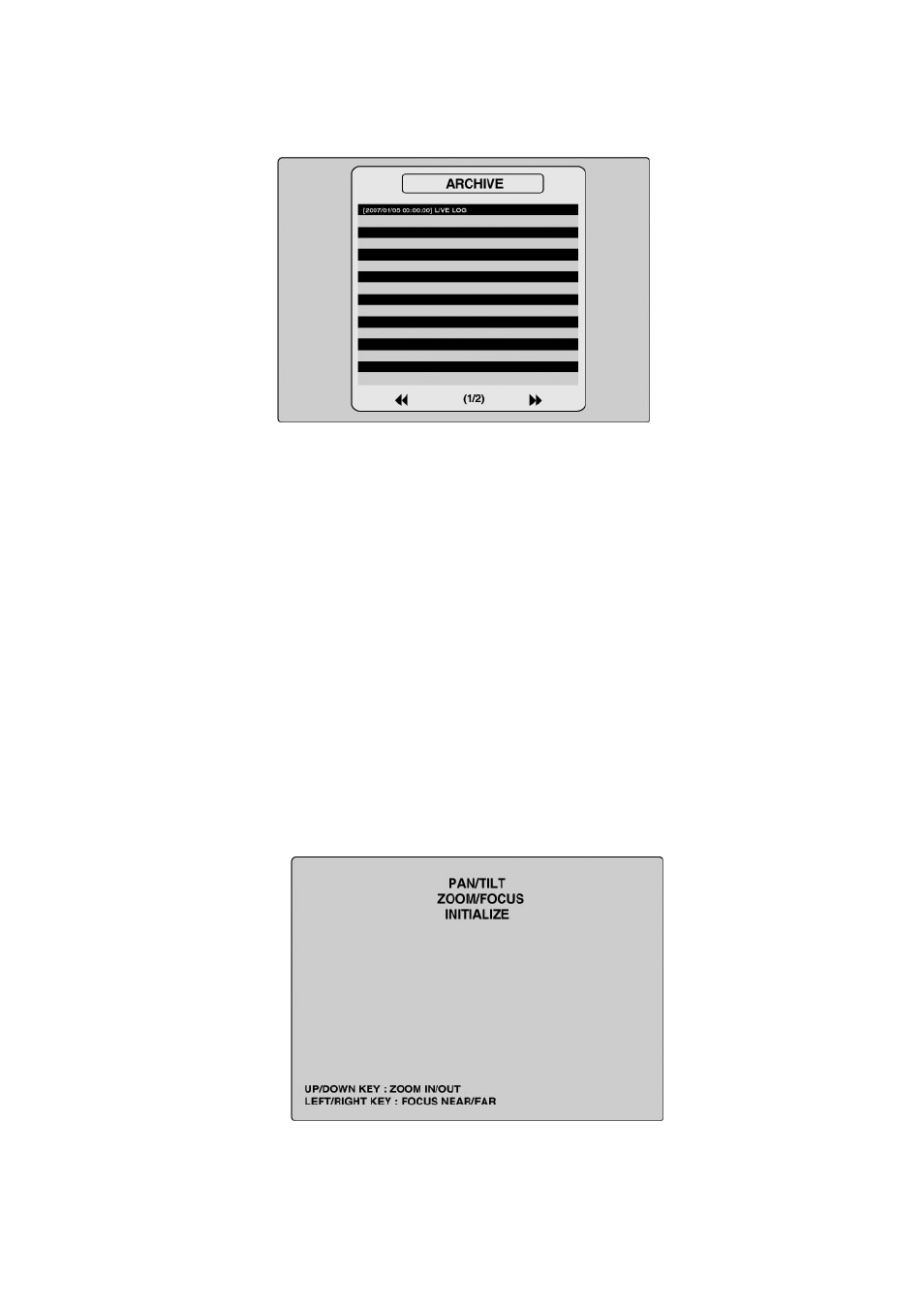

Figure 4.2.9. ARCHIVE SEARCH LIST screen
4-3. PTZ operation
To operate the PTZF functions, connect the controller to the RS-485 port on the rear panel. (figure 4.3.2)
In the PTZ control setting in the SETUP menu (refer to the figure 3.4.5 on page 26), user can select or
set the protocol type of the camera which is the same as the one that is installed on the site. If the
camera has a specific camera ID, select the camera ID using Left or Right button.
The PTZ function button is found on the front panel. Once you press the PTZ button, the screen will
appear as in figure 4.3.1. Highlight the item to select and control the cameras by using the UP and
DOWN or LEFT and RIGHT buttons. Please refer to the table 4.3.1. for description.
Figure 4.3.1. PTZF control screen
