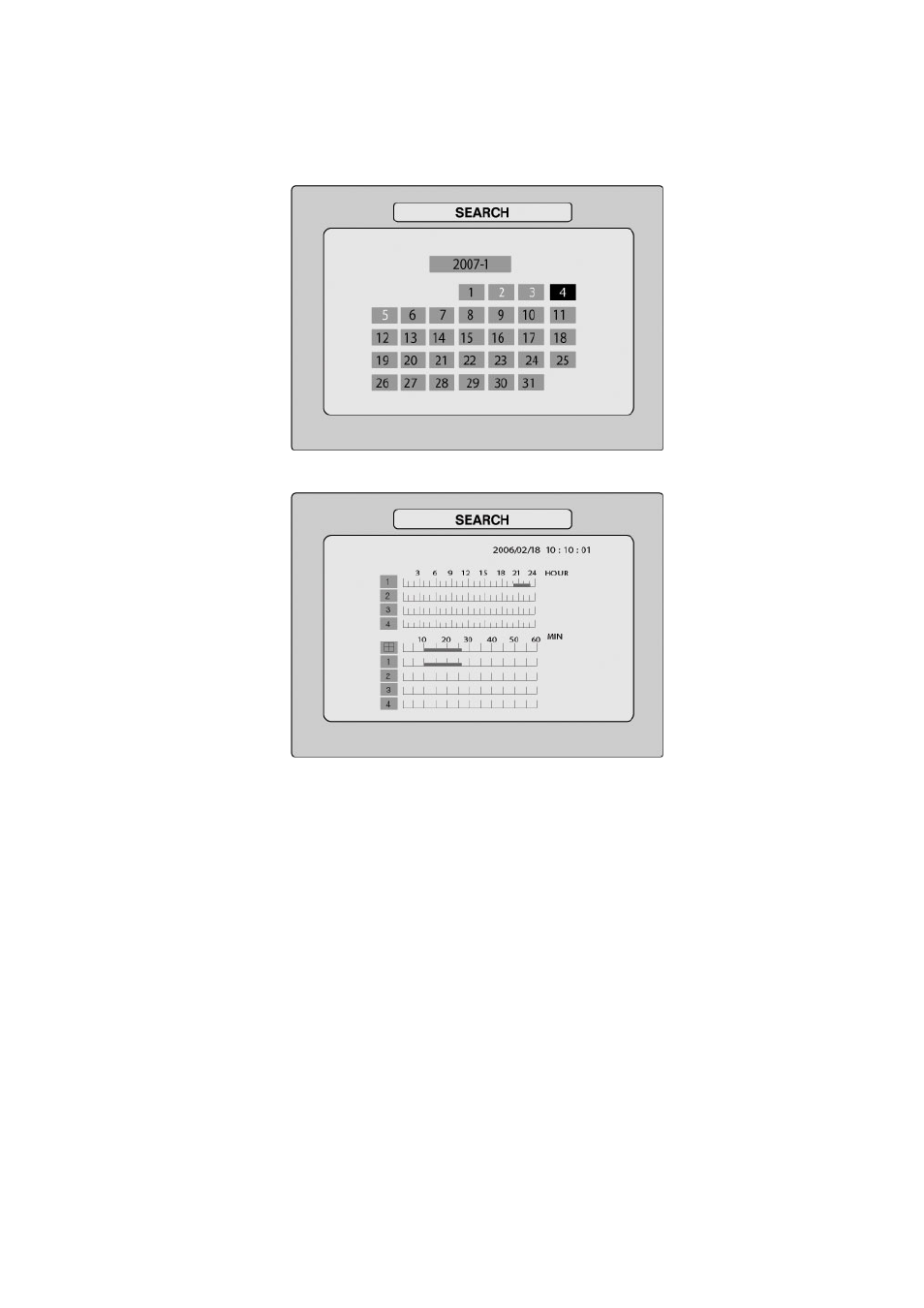

Figure 4.2.3. TIME LINE SEARCH screen

4-2-2. EVENT Search

The EVENT SEARCH screen is used to find the stored video. 3 categories of search filters can be

applied: DATE, CHANNEL, and TYPE. Use the SEL button to move down the categories and use the UP

button to move up the categories. The ESC button will return user to the live screen.

Searching for an event:

1. Select the date of the video to begin searching, Use the LEFT or RIGHT button to navigate through

the day. Use the UP or DOWN button to change the values.

2. Once you have selected the date, press the SEL button to move to the CHANNEL selector.

3. Use the LEFT or RIGHT button to change the channel selection from ALL to any of the four available

channels.

4. Once you have selected the channel, press the SEL button to move to the TYPE selector.

5. Use the LEFT or RIGHT button to change the type of recording to A(All), M(Motion), S(Sensor),
