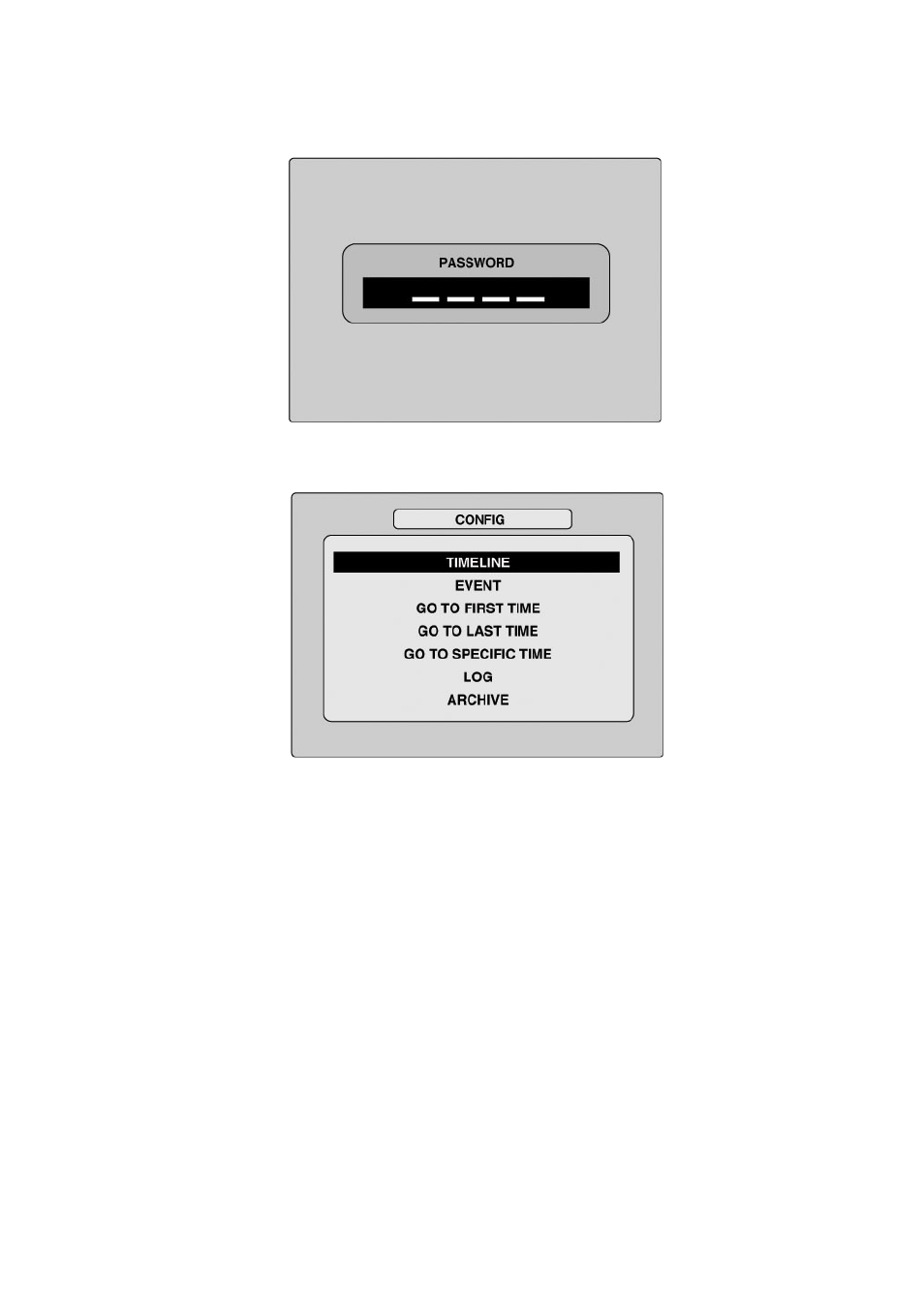

Figure 4.2.1. Password screen
Figure 4.2.2. SEARCH screen
4-2-1. TIME LINE Search
The TIME-LINE SEARCH screen is used to find the stored video by using the time line bar. (Figure 4.2.3)
1. Select the date of the video to begin searching by using the LEFT or RIGHT button to navigate
through the day.
2. Once you have selected the date, press the SEL button to move to the TIME LINE SEARCH screen.
3. Use the LEFT or RIGHT button to select a time zone on the 24hours time table. Once you have
selected the time zone, press the DOWN button to move to the 60 minutes time table and select all
or each channel for playing back the recorded video.
4. Once you select the time zone, then move the time line select Bar(yellow) to the point you wish to
start playing video (recorded video is indicated by a Red underline) by using the LEFT or RIGHT
button.
5. Press the SEL button to playback the recorded video.
6. Press the BACKUP button to archive the video into USB stick or CD media.
43
