Figure 3.4.1. Device mode setup screen
Table 3.4.1. Menu items in Device Setup screen
Item Description
PTZ Set the PTZ camera speed, number, type and ID.
CHANNEL Select specified channel for motion zone and sensor/alarm setup.
MOTION ZONE Select Full Zone or Partial Zone for motion sensing.
MOTION SENSITIVITY Set the motion sensitivity for the specified channel.
Control the motion sensitivity from 1 to 9.
SENSOR TYPE Set the type of sensor for the specified channel. Options are: None,
N/O (normal open), and N/C (normal closed).
ALARM Select alarm from 1 to 4.
ALARM DURATION Set the dwell time of alarm from1 to 60seconds.
KEY TONE Enable/disable key tone.
REMOTE CONTROL ID Select an ID of remote control.
1. Select ID.
2. Press the same number as ID set in DVR on a remote controller.
3. Then icon will be displayed on Live screen of DVR that
respond to the remote control.
3-4-1. PTZ Setup
To control the PTZ functions of the camera, connect the controller to the RS-485 port.

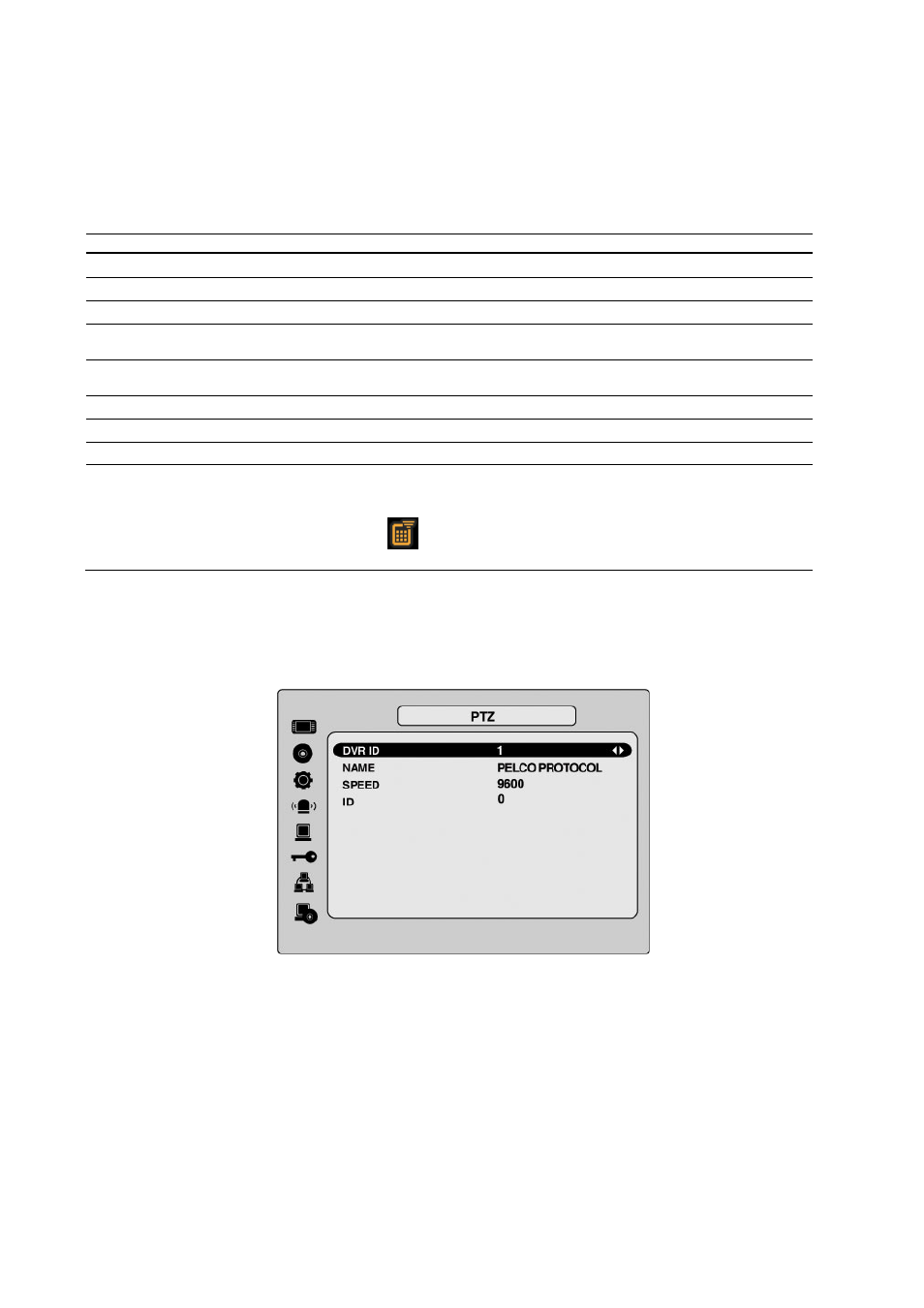

Figure 3.4.2. PTZ Control Setup Screen
Note: For speed dome cameras that support RS-485, connect them directly to the RS-485 port. If the camera
is controlled with RS-232C, use an RS-485 to RS-232C signal converter.
On the PTZ control Setup screen, you can select or set the protocol type of the camera that is the same as
the one installed on the site. If the camera has a specific camera ID, select the camera ID using the LEFT
and RIGHT arrow controls.
27
