Maxtor SSA-0412 - Manual (Page 47)

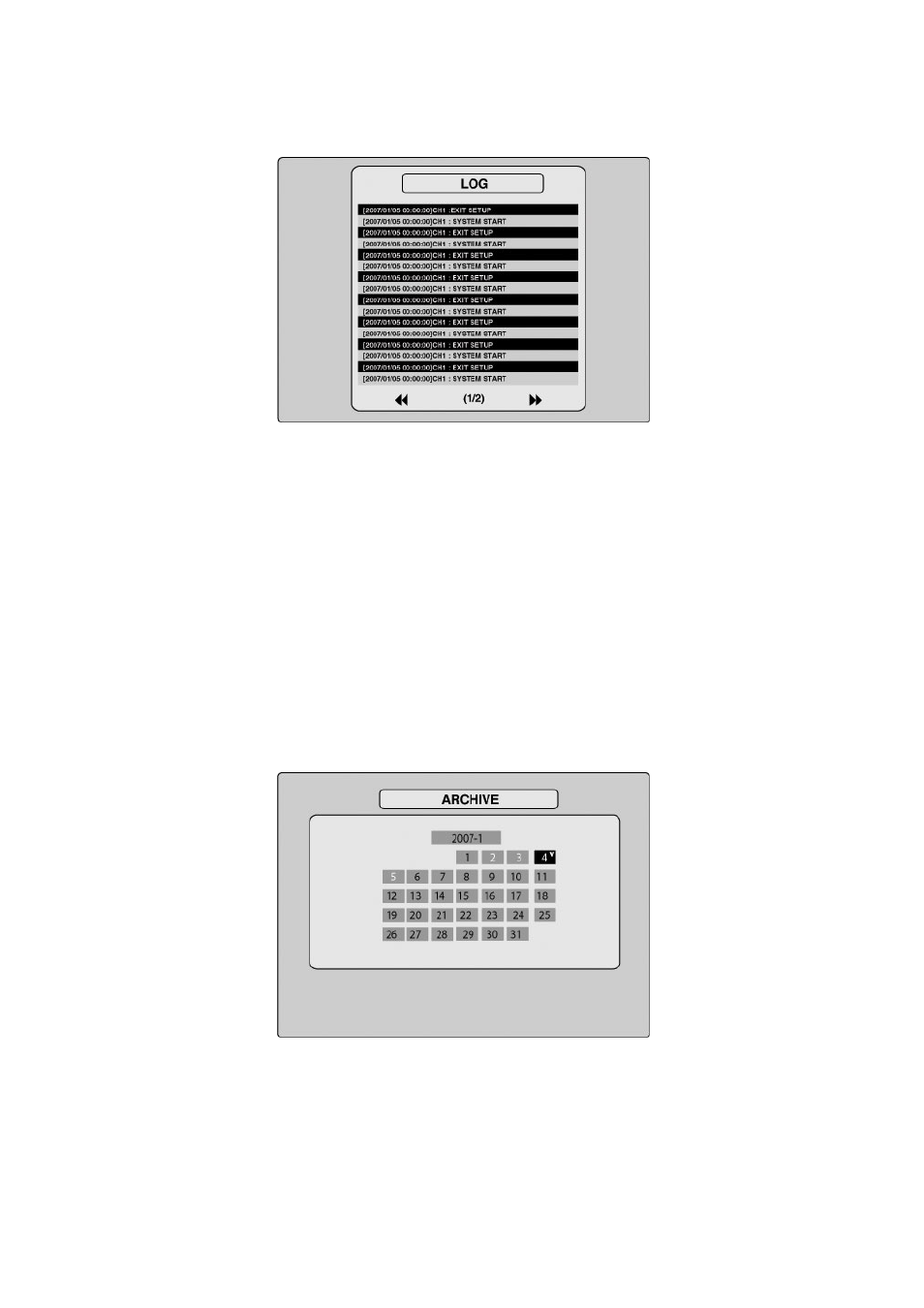

Figure 4.2.7. LOG LIST screen
4-2-7. ARCHIVE Search
The ARCHIVE SEARCH screen (figure 4.2.8) is used to find the stored video.
1. Select the date on the calendar to begin searching by using the LEFT or RIGHT button.
2. Once you have selected the date, press the SEL button to move to the list of recording data. (figure
4.2.9)
3. Use the UP or DOWN button to scroll through the onscreen listings.
4. Once the desired event has been selected, press the SEL button to see the selected video in paused
mode.
5. Press the BACKUP button to archive the still image or video into USB memory stick or CD media.
Figure 4.2.8. ARCHIVE SEARCH screen
47
