GATEWAY The IP address of the Gateway
SUBNET MASK The subnet mask for the LAN
DNS The address for the DNS server
3-8-2-2. DHCP
An IP address is automatically assigned by the DHCP server, which automatically assigns IP address and
other parameters to new devices.
When ADSL or other network being used adopts variable IP method, not fixed IP. This option is used as a
way to automatically get IP address.

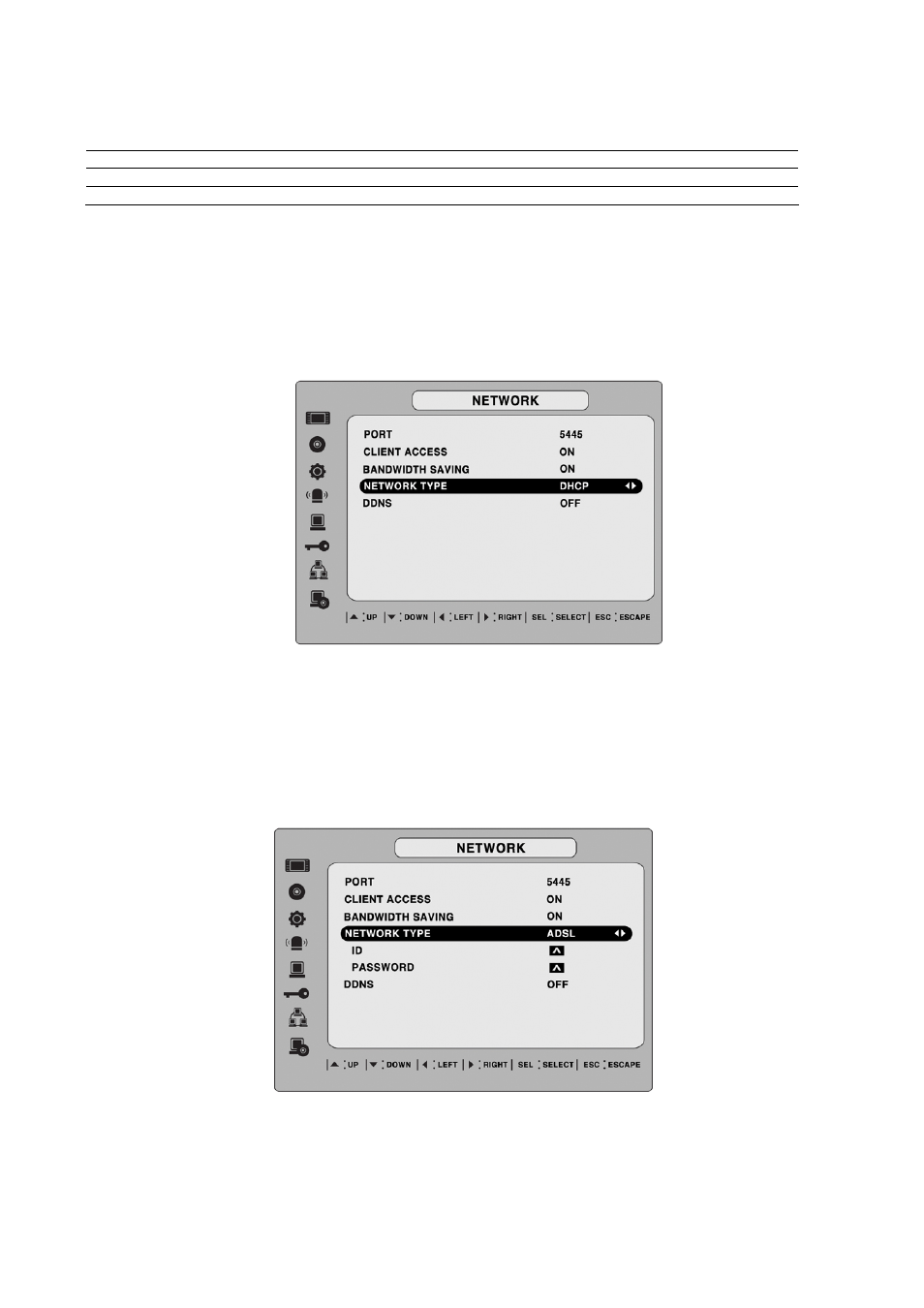

Figure 3.8.3. Network setup screen - DHCP
3-8-2-3. ADSL (PPPoE)
Use this ADSL (PPPoE) function when the network type connected to the DVR is PPPoE method.
If ADSL type is not using inputting IP and Password like VDSL or DVR is installed in IP sharer, a user can not
select this function. In this case, a user should select DHCP or LAN.
Figure 3.8.4. Network setup screen - ADSL
Table 3.8.3. ADSL
37
