Maxtor SSA-0412 User Manual
Page 19

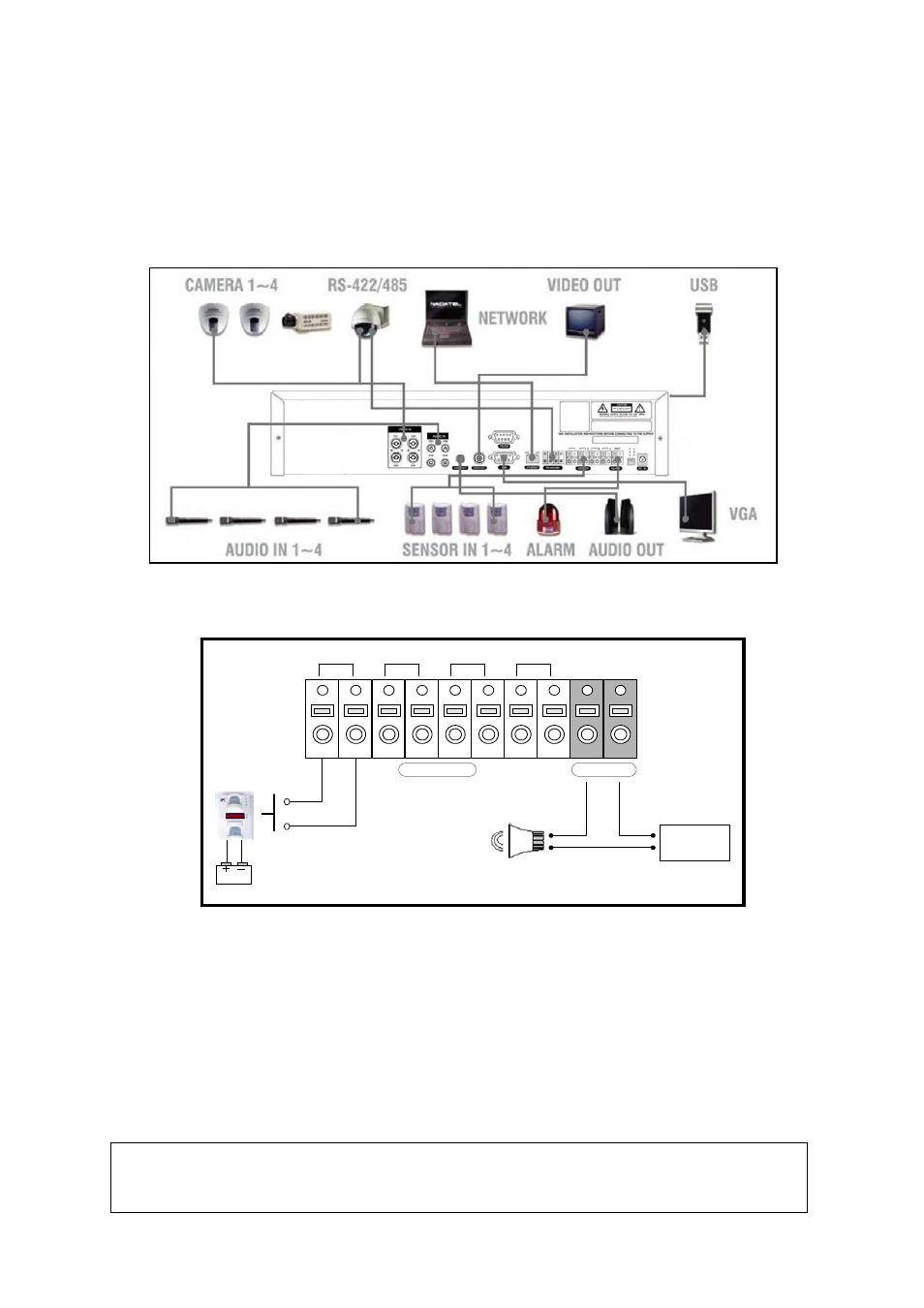

Figure 2.2. Rear Panel Connections
Figure 2.3. Sensor input / Alarm output connections
Dried Contact
1
2
3
4
OUT
(+)
(-)
(+)
(-)
+12VDC
ALARM
SENSOR
Sensor
Adapter
SENSOR INPUT: Connect two signal lines of sensor (infrared rays sensor, heat perception sensor, magnetic
sensor) to the desired sensor number. (You can set the type-NC or NO- of sensor at “Setup” mode).
ALARM OUTPUT: Use this at 30V/300mA or less operating voltage and current. When controlling lamp and
AC operated equipment, control it using separate outside relay. During normal operation the control output
contact is maintained at “Open” status, and during control output the output contact is changed to
Close(short)” status.
19
NOTICE
SENSOR inputs need dried contact only. Do not input any electric signal.
