Maxtor SSA-0412 - Manual (Page 36)

3-8-2. Network Types
3-8-2-1. LAN
1. Regarding to the use of fixed IP please ask your network administrator if you do not have this
information.
2. When DVR is installed in IP sharer that is connected with ADSL, a user can assign fixed IP to DVR
from IP sharer itself using “DMZ” function out of such sharer.
Input IP set in DMZ on “IP” field and Gateway of ADSL modem on “Gateway” field. Similarly, for Subnet
Mask, DNS address, input relevant values in IP sharer.

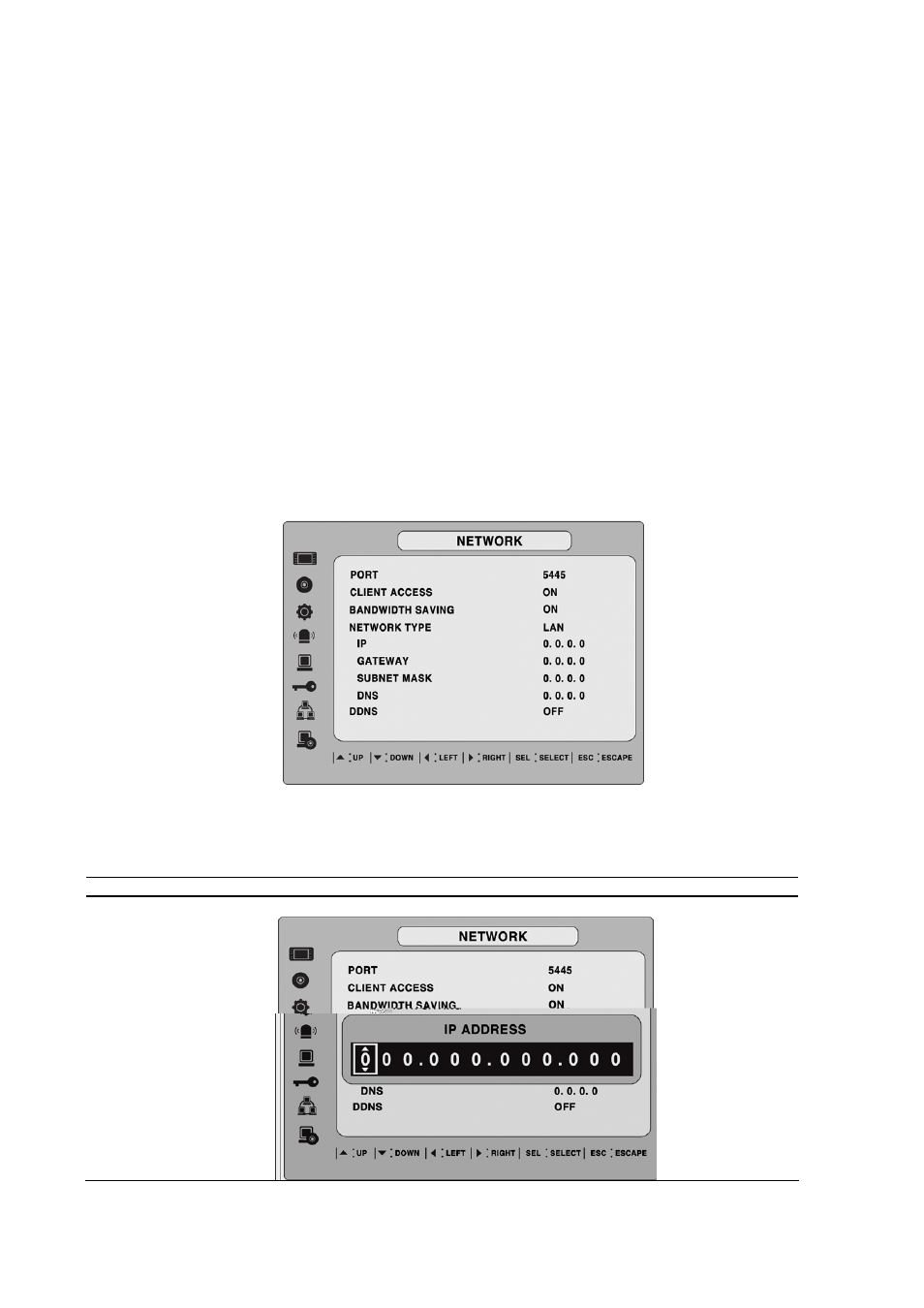

Figure 3.8.2. Network setup screen - LAN
Table 3.8.2. LAN
Item Description
IP The fixed IP address of the DVR unit
36
