The following options are available on the PTZ control screen.
CHANNEL (channel number that the PTZ is connected to)
NAME (protocol type)
SPEED (19200, 14400, 9600, 4800, 2400)
ID (0-63)
3-4-2. Motion Zone Setup
When you select Partial Zone in the Motion Zone menu, you can set-up the motion sensing zones in the
screen. To move around each rectangular zone, use the arrow controls. Press the SEL button on each
rectangular zone you want to include as part of the motion sensing zone.
If you select each zones, the color changes. Press ESC button to return to the DEVICE menu.

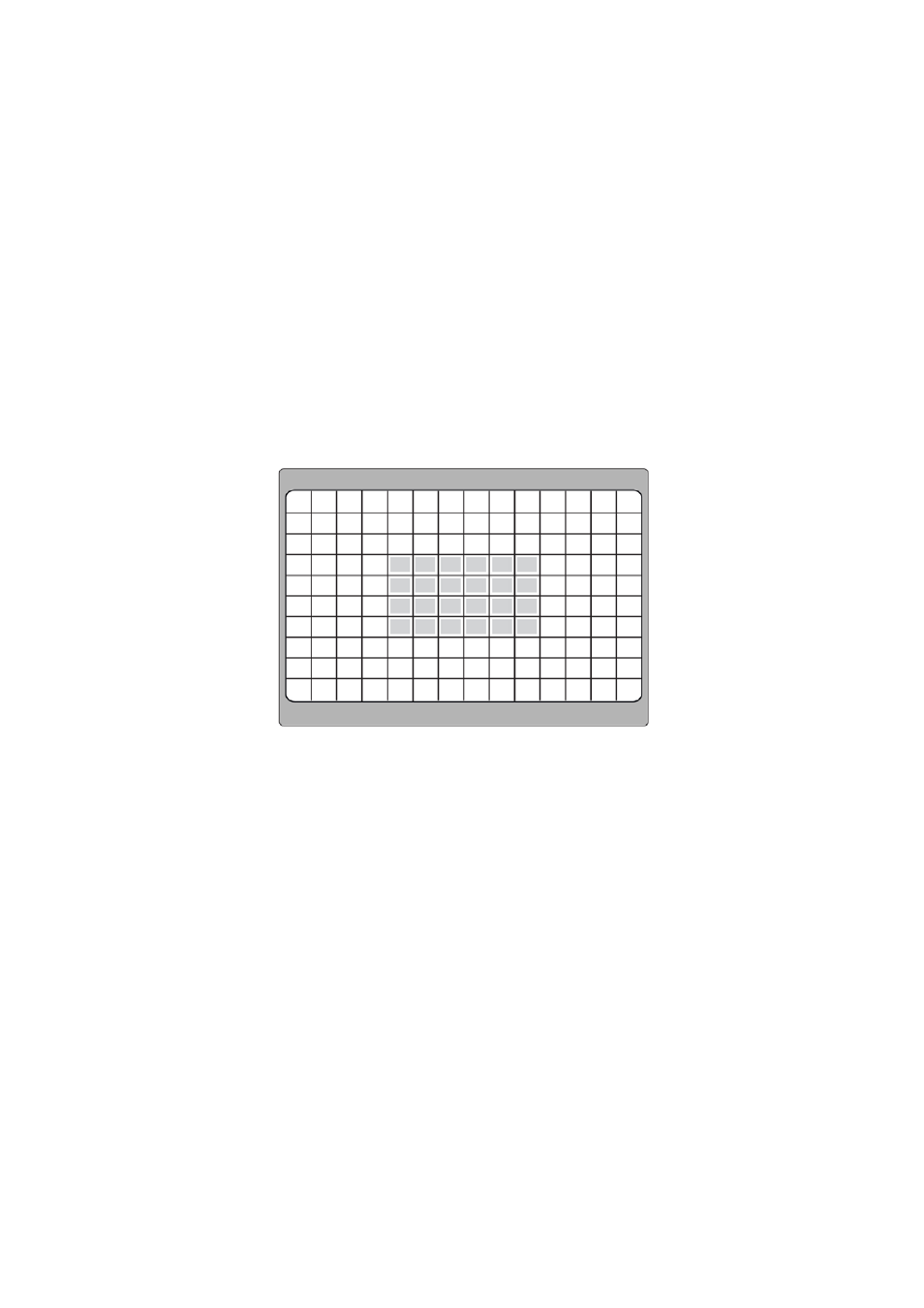

Figure 3.4.3. Motion Zone selection screen
3-5. Setup – Storage Mode
Set the storage parameters in the Storage setup screen.
28
