2. Rear Panel and Connections

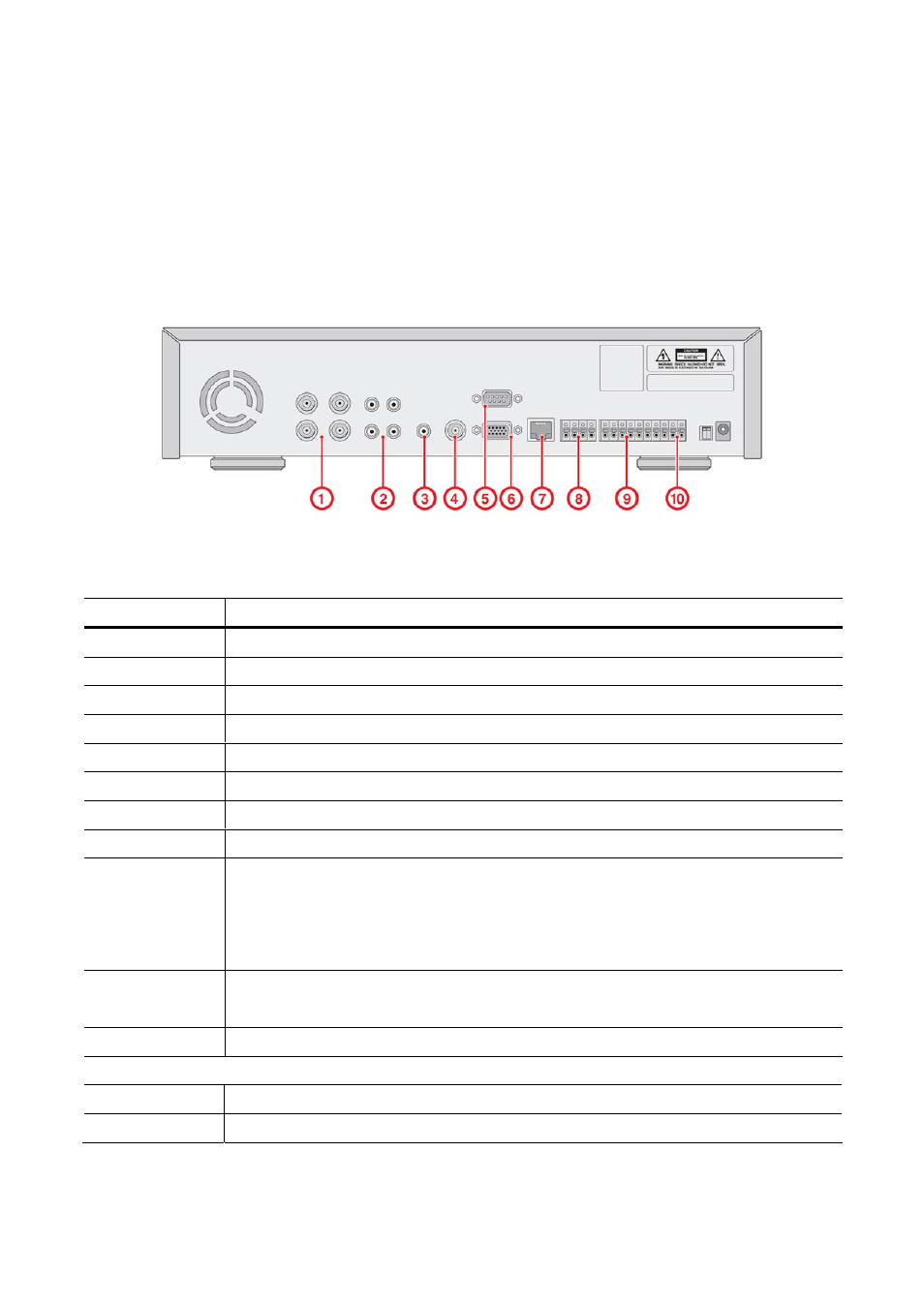

Figure 2.1. Rear Panel
Table 2.1. Rear panel connections
Connection DESCRIPTION
n
VIDEO IN Four connectors for video input. Connect camera output to Video-in (NTSC/PAL)
o
AUDIO IN Four connectors for audio input.
p
AUDIO OUT One connector for audio output.
q
VIDEO OUT Composite video output in NTSC or PAL format
r
RS-232 For engineering use only
s
VGA Connector for VGA monitor
t
ETHERNET RJ45 connector for LAN connection
u
RS-485/422 For camera control use
v
SENSOR IN
Connector for sensor device connection. 4 sensors can be connected to the equipment
sensor 1, 2, 3, 4 are dedicated to Video channel 1, 2, 3, 4, respectively. Either normal
open (NO) or normal close (NC) sensor can be selected for each sensor. Simple On/Off
switching.
w
ALARM OUT
Connector for alarm device connection.
Provides simple On/Off switching using relay. 0.5A/125V, 1A/30V
DC INPUT Apply 12V DC using the DC adaptor supplied with the equipment.
SWITCHES
PAL Set to ON position when video is PAL
VGA Set to ON position when VGA monitor is used.
* Refer to the detail setting of video switch on Page 7 “Video Signal Select / Setting”.
