CONTRAST Change the contrast value for the specified channel
HUE Change the hue value for the specified channel
SATURATION Change the saturation value for the specified channel
3-3. Setup – RECORD Mode
Set the values for recording video. Navigate through menu items by pressing the UP/DOWN buttons. User
can change the value of the menu item by pressing the LEFT/RIGHT buttons.

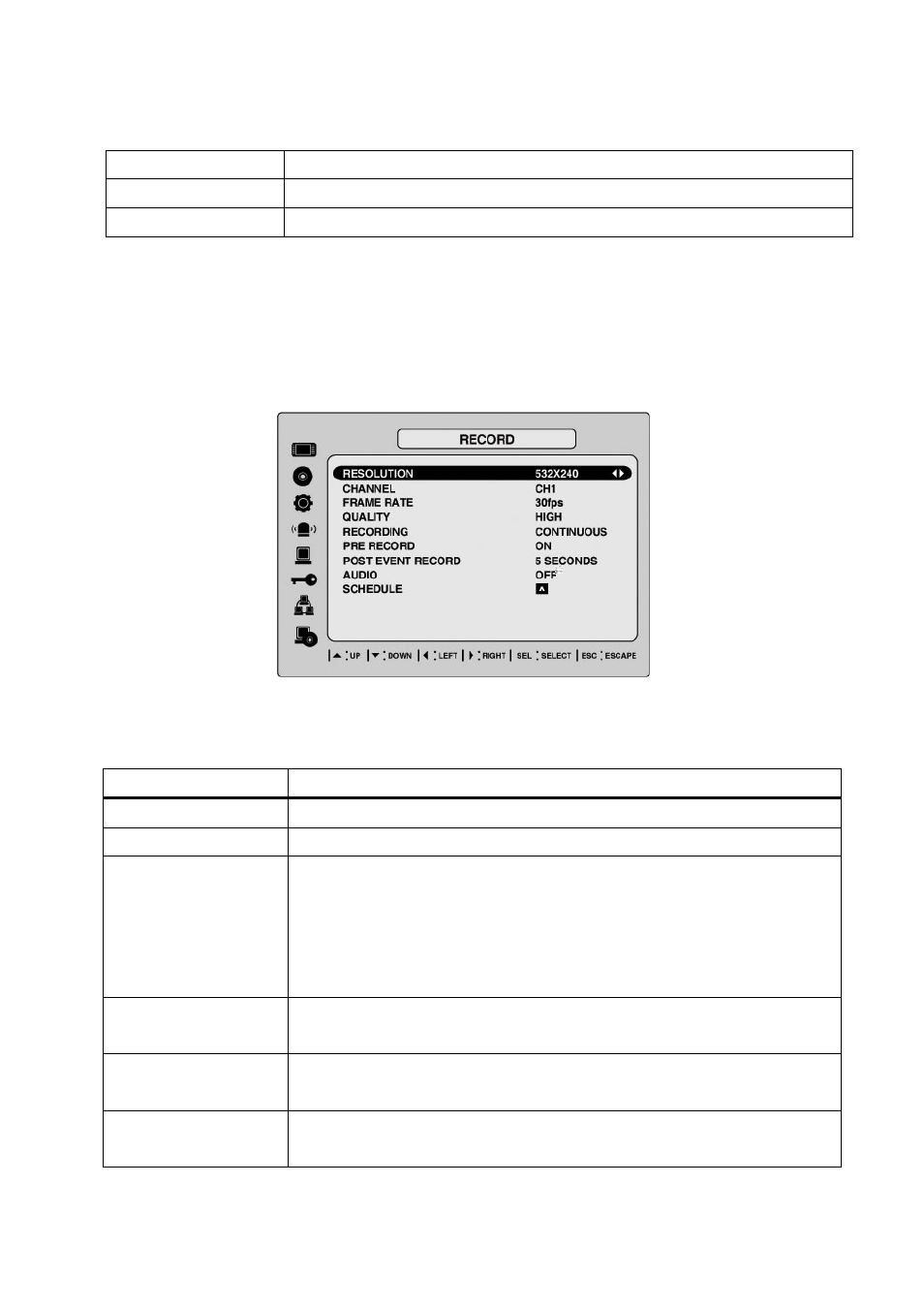

Figure 3.3.1. RECORD mode setup screen
Table 3.3.1. Menu items in RECORD mode setup
MENU ITEM DESCRIPTION
RESOLUTION Set resolution to either full or quad.
CHANNEL Select the channel for applying the following settings.
FRAME RATE
Set the frame rate for the specified channel. The sum of the frame rate values
from each channel cannot exceed maximum frame rates for a particular
recording resolution. Typical values of the maximum frame rate for NTSC
video are 120/100fps for QUAD (352*240(NTSC)/352*288(PAL)) and 30/25
fps for FULL (704*480(NTSC)/704*576(PAL)).
QUALITY Select the recording quality for the specified channel from LOW, NORMAL
and HIGH
RECORDING Assign the recording mode for each channel. Recording modes: Continuous,
Motion, Sensor, Schedule and Disable.
MOTION ZONE Select Full Zone or Partial Zone for motion sensing. If the Partial Zone is
selected, screen will be change as shown in figure 3.3.2.
