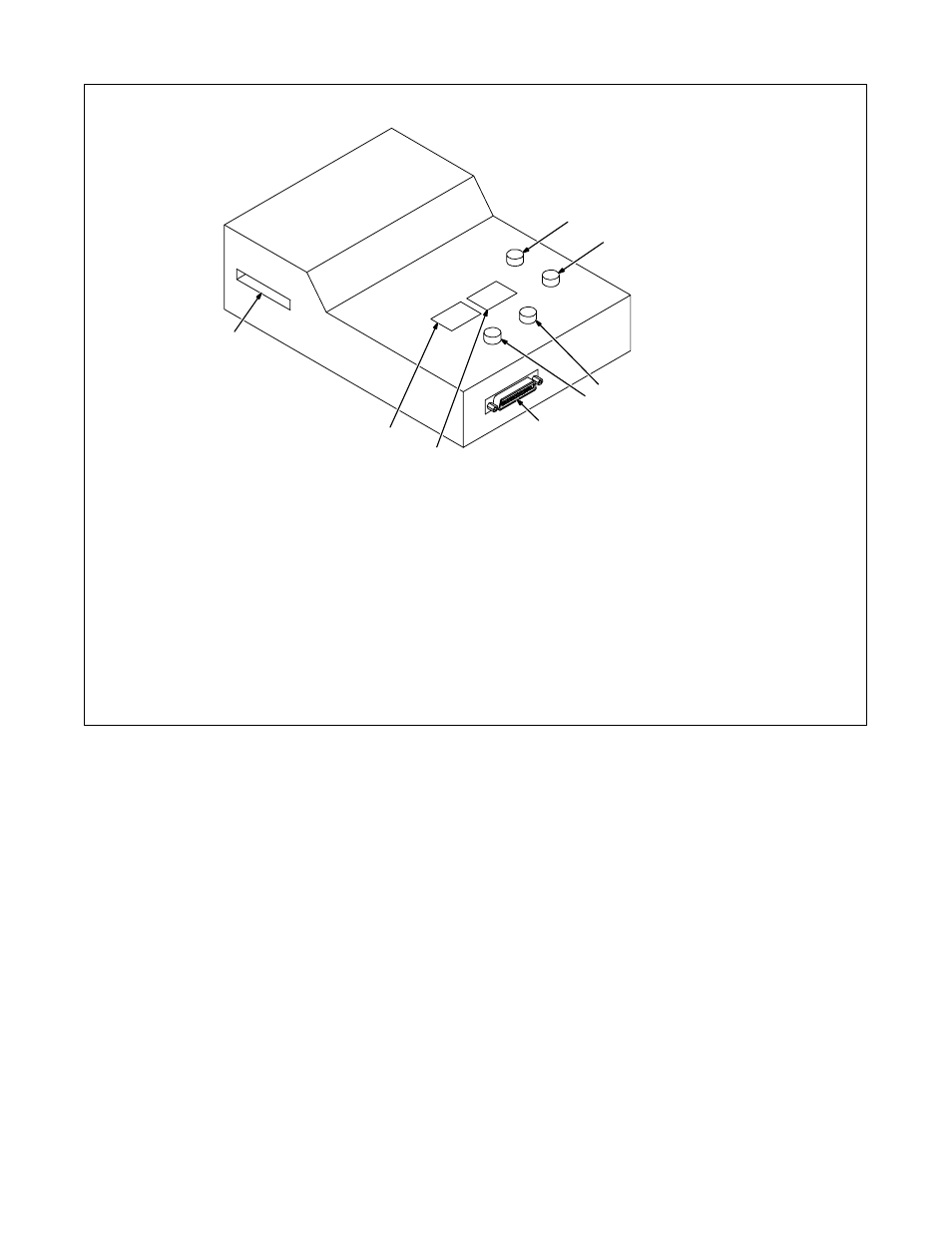

4-7. Setup Pendant Controls
1 Increase Button
Works with security feature on welding
power source to allow increasing weld
parameter values within the allowable range.
2
Decrease Button
Works with security feature on welding
power source to allow decreasing weld
parameter values within the allowable range.
3 Parameter Select Button
Press button to move indicator in right
window display, and to make selections in
setup screens.
4 Mode Select Button
Press button to move indicator in left window
display.
5
Interconnecting Cable Receptacle
6 Parameter Display
7 Mode Display
8 Card Slot
802 815
2
1
3
4
5
6
8
7
