GENERATOR STARTUP PROCEDURE (MANUAL)
Press the
14.
main circuit breaker "ON" switch (Figure 52).

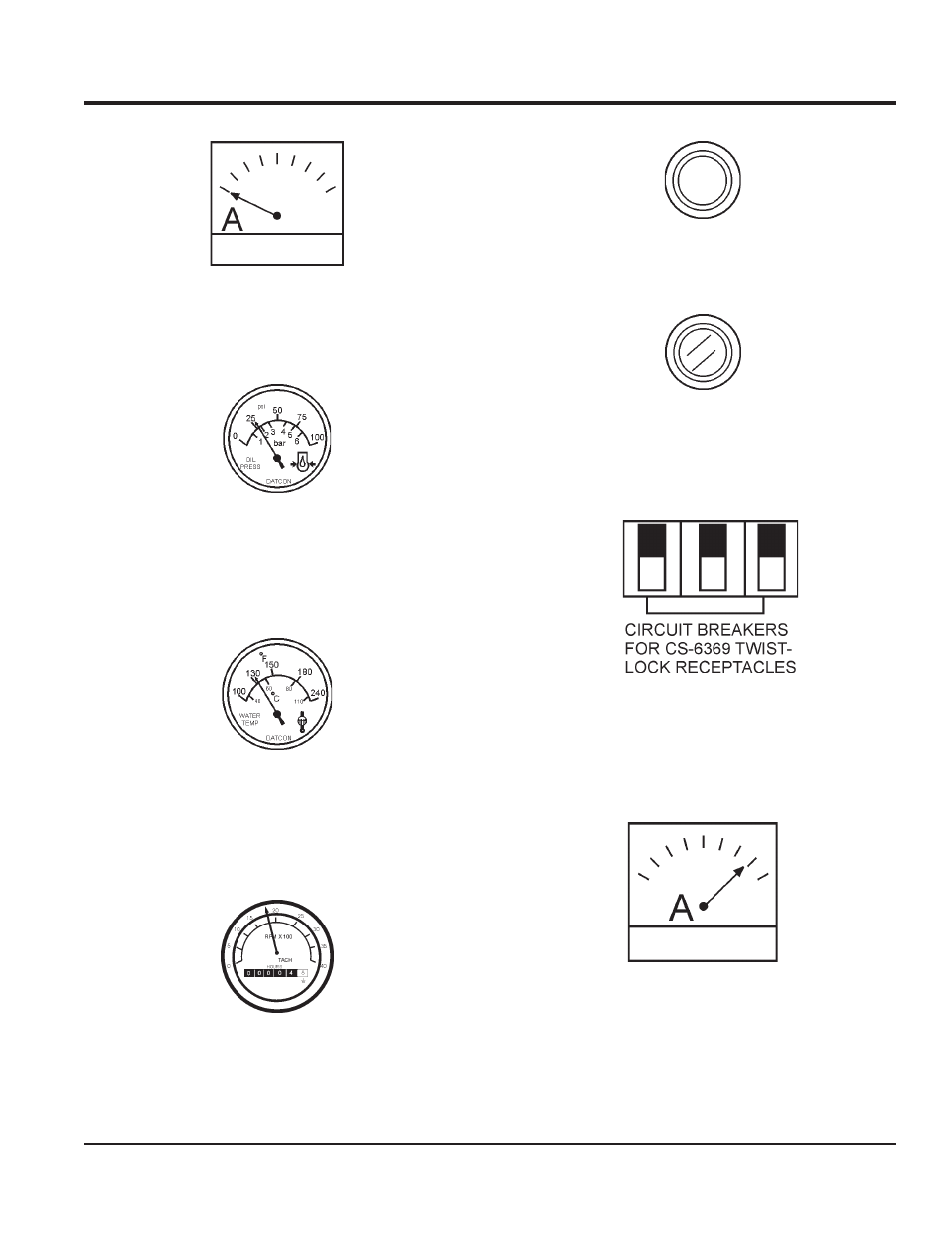

Main Circuit Breaker ON Switch
Figure 52.
Verify that the main circuit breaker "
15.
ON" lamp (Figure 53)
is lit (ON).
Main Circuit Breaker ON Lamp
Figure 53.
Place the three
16.
auxiliary circuit breakers in the ON
position (Figure 54).
Main, Aux. and GFCI
Figure 54.
Circuit Breakers (ON)
Verify that the generator’s ammeter (Figure 55) reads
17.
the anticipated amount of current with respect to the
load. The ammeter will only display a current reading
if a load is in use.
Ammeter (Load)
Figure 55.
The generator will run until manually stopped or an
18.
abnormal condition occurs.
Ammeter (No Load)
Figure 48.
The engine oil pressure gauge (Figure 49) will indicate
11.
the oil pressure of the engine. Under normal operating
conditions the oil pressure is approximately 28 to 85
psi. (193~586 kPa).
Oil Pressure Gauge
Figure 49.
The
12.
coolant temperature gauge (Figure 50) will
indicate the coolant temperature. Under normal
operating conditions the coolant temperature should
be between 167°~203°F (75°~95°C) (Green Zone).
Coolant Temperature Gauge
Figure 50.
The
13.
tachometer gauge (Figure 51) will indicate the
speed of the engine when the generator is operating.
Under normal operating conditions this speed is
approximately 1800 RPM’s.
Engine Tachometer Gauge
Figure 51.
