DCA800SSK2 60 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #0 (09/03/09) — PAGE 25
GENERATOR OUTPUTS
Generator Amperage
Table 8 shows the maximum amps the generator can
provide. DO NOT exceed the maximum amps as listed.
Generator Maximum Amps Table 8.
Rated Voltage Maximum Amps
1Ø 120 Volt 1777.8 amps (4 wire)
1Ø 240 Volt 888.9 amps (4 wire)
3Ø 240 Volt 1924.6 amps
3Ø 480 Volt 962.3 amps
GENERATOR OUTPUT VOLTAGES
A wide range of voltages are available to supply voltage
for many different applications. Voltages are selected by
applying jumpers (6) to the voltage changeover board
(Figure 11). To obtain some of the voltages as listed in
Table 7 (see below) will require a fi ne adjustment using
the voltage regulator (VR) control knob located on the
control panel.

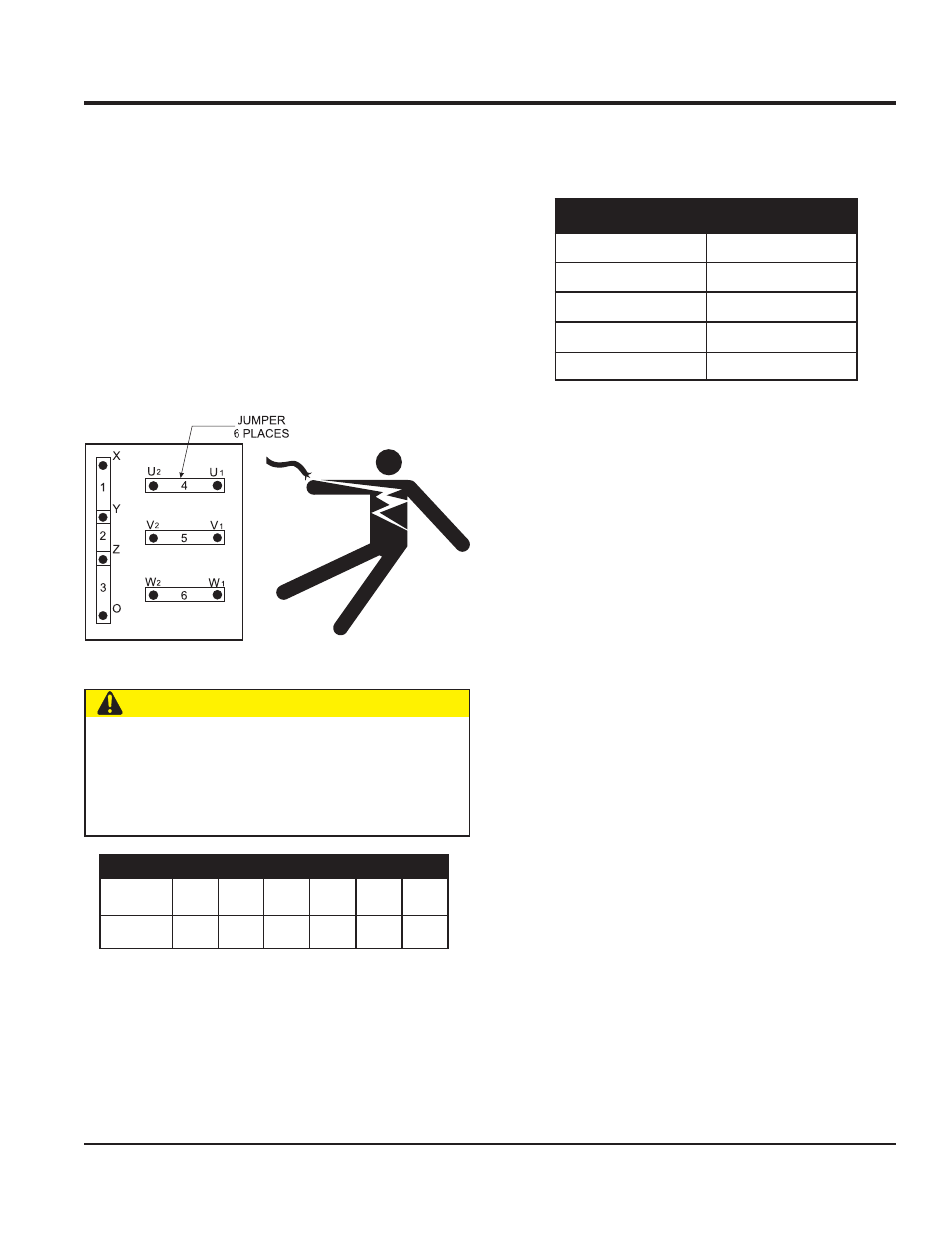

Voltage ChangeOver Board
The voltage changeover board (Figure 11) is located on
the control box, behind the generator control panel. This
board has been provided for ease of voltage selection.
Voltage ChangeOver Board Figure 11.
CAUTION
NEVER attempt to place jumper plates on the voltage
changeover board while the generator is in operation.
There exist the possibility of electrocution, electrical
shock or burn, which can cause severe bodily harm
or even death!
Voltages Available Table 7.
Three Phase
(Switchable)
208V 220V 240V 416V 440V 480V
Single Phase
(Switchable)
120V 1127V 139V 240V 254V 277V
