DCA800SSK2 60 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #0 (09/03/09) — PAGE 13

DIMENSIONS

Dimensions

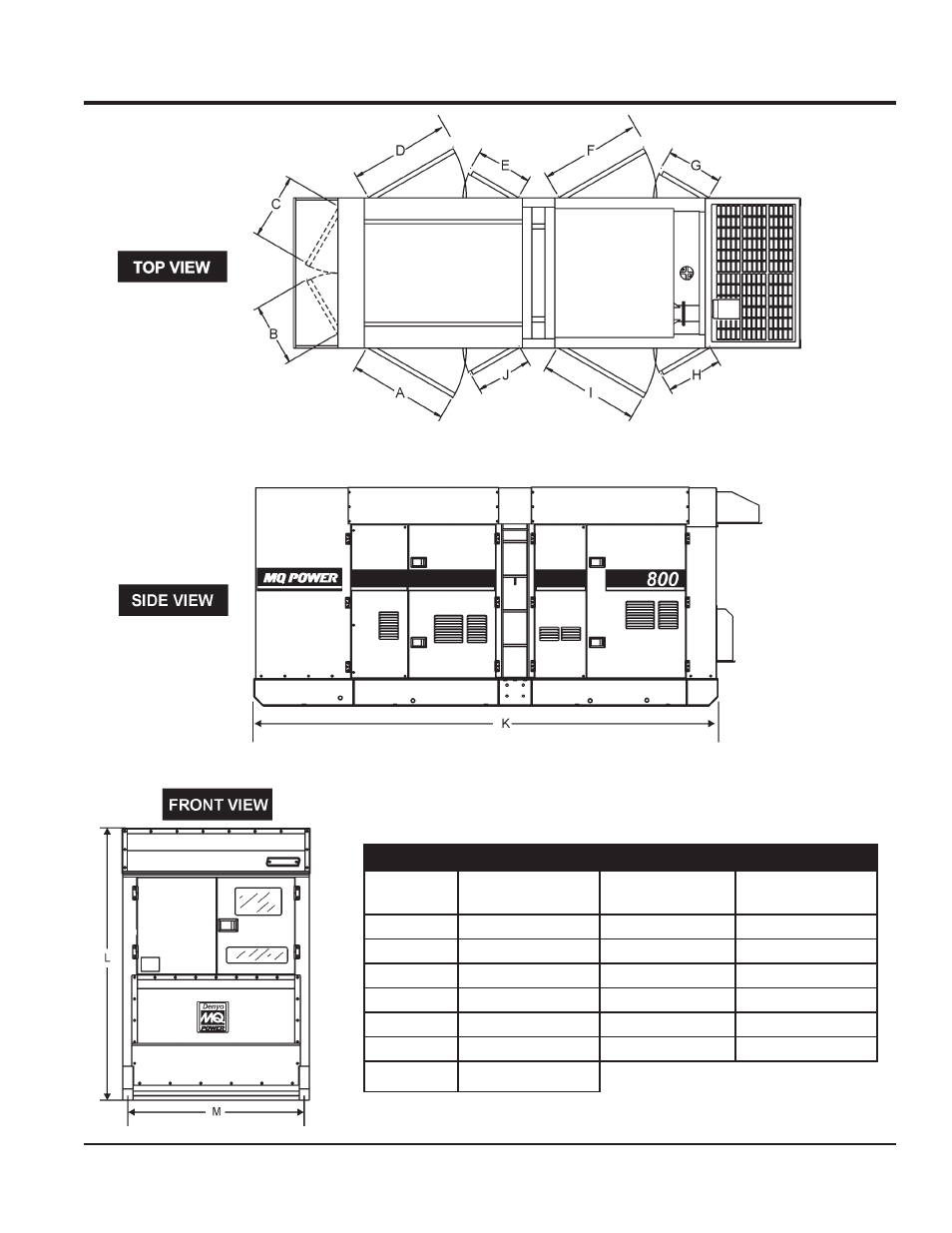

Figure 1.

Dimensions

Table 3.

Reference

Letter

Dimension in. (mm)

Reference Letter

Dimension in. (mm)

A

43.31 in. (1,100 mm.)

H

32.68 in. (830 mm.)

B

36.22 in. (920 mm.)

I

39.37 in. (1000 mm.)

C

27.17 in. (690 mm.)

J

29.53 in. (750 mm.)

D

43.31 in. (1,100 mm.)

K

240.54 in. (6110 mm.)

E

29.53 in. (750 mm.)

L

98.43 in. (2500 mm.)

F

39.37 in. (1000 mm.)

M

76.77 in. (1950 mm.)

G

32.68 in. (830 mm.)
