1 - 18
1. FUNCTIONS AND CONFIGURATION

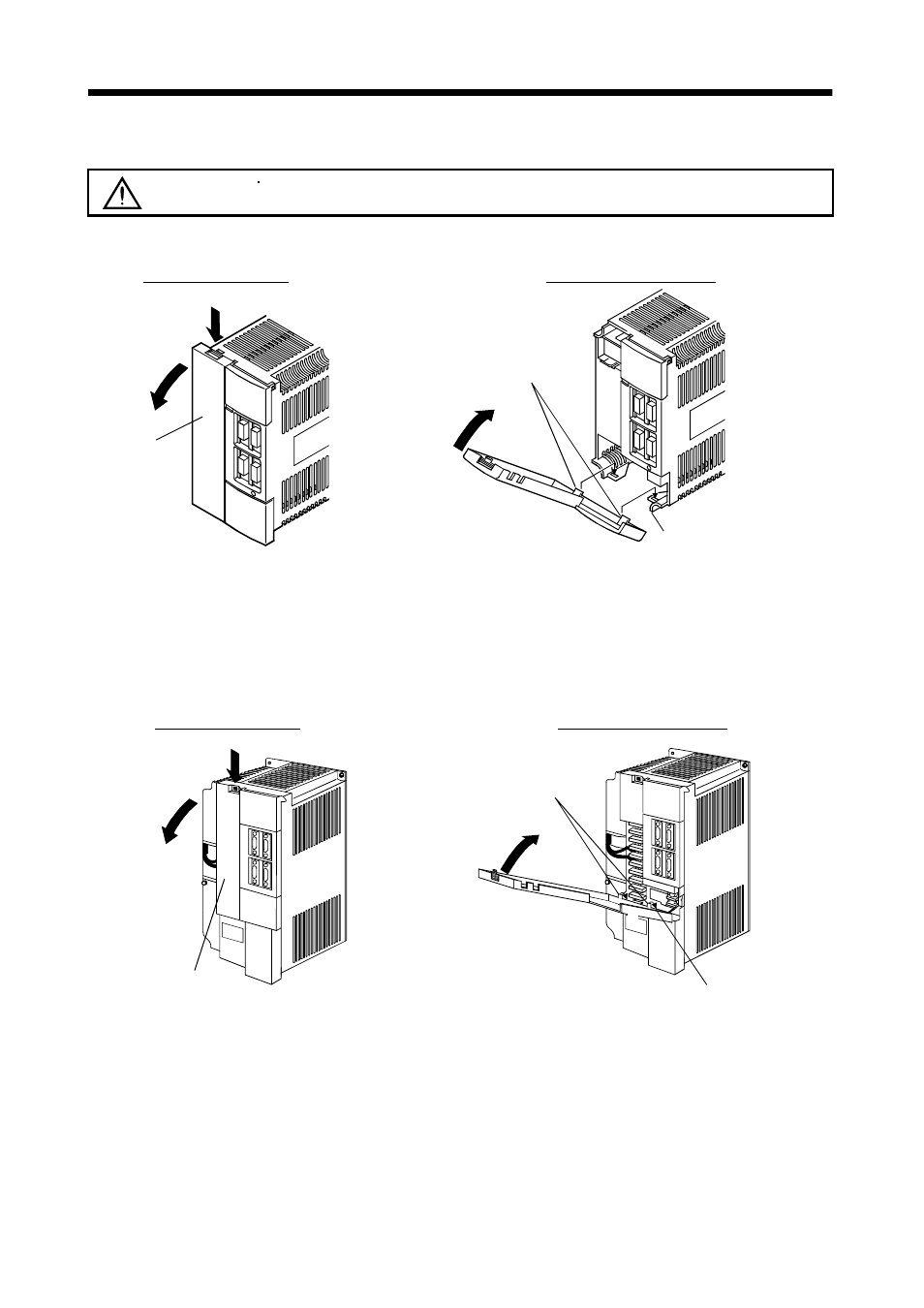

1.6.2 Removal and reinstallation of the front cover
CAUTION
To avoid the risk of an electric shock, do not open the front cover while power is
on.
(1) For MR-J2S-200CL or more
Front cover hook
(2 places)
Front cover socket
(2 places)
2)
1)
Front cover
2)
1)
Removal of the front cover Reinstallation of the front cover
1) Insert the front cover hooks into the front cover sockets of
the servo amplifier.
2) Press the front cover against the servo amplifier until the
removing knob clicks. 1) Hold down the removing knob.
2) Pull the front cover toward you.
(2) For MR-J2S-500CL
Front cover socket
(2 places)
Removal of the front cover Reinstallation of the front cover
1) Insert the front cover hooks into the front cover sockets of
the servo amplifier.
2) Press the front cover against the servo amplifier until the
removing knob clicks. 1) Hold down the removing knob.
2) Pull the front cover toward you.
2)
1)
Front cover hook
(2 places)
2)
1)
Front cover
