14. OPTIONS AND AUXILIARY EQUIPMENT
HF3040-TM HF-3050A-TM
K
L L
G F E D
C C
B
A
M
J
H

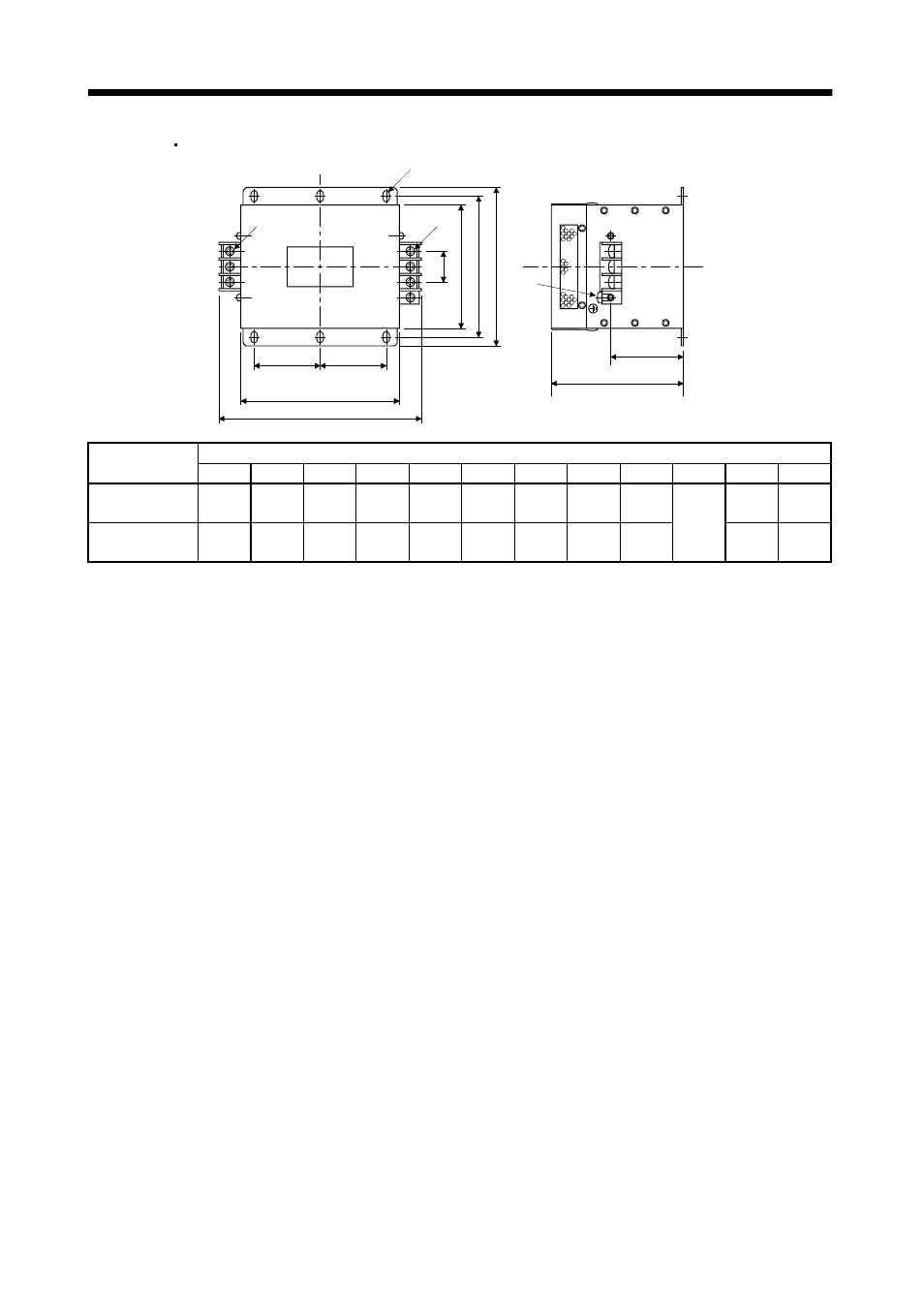

Dimensions [mm(in)]
Model
A B C D E F G H J K L M
HF3040A-TM
260
(10.23)
210
(8.27)
85
(3.35)
155
(6.10)
140
(5.51)
125
(4.92)
44
(1.73)
140
(5.51)
70
(2.76)
M5 M4
HF3050A-TM
290
(11.42)
240
(9.45)
100
(3.94)
190
(7.48)
175
(6.89)
160
(6.30)
44
(1.73)
170
(5.51)
100
(3.94)
R3.25,
length 8
M6 M4
