1 - 6
1. FUNCTIONS AND CONFIGURATION
(3) Operation using communication
(a) Description
Analog input, forced stop (EMG) and other signals are controlled by external I/O signals and the
other devices controlled through communication. Also, you can set each program, selection of the
program, and change or set parameter values, for example. Up to 32 axes may be controlled.

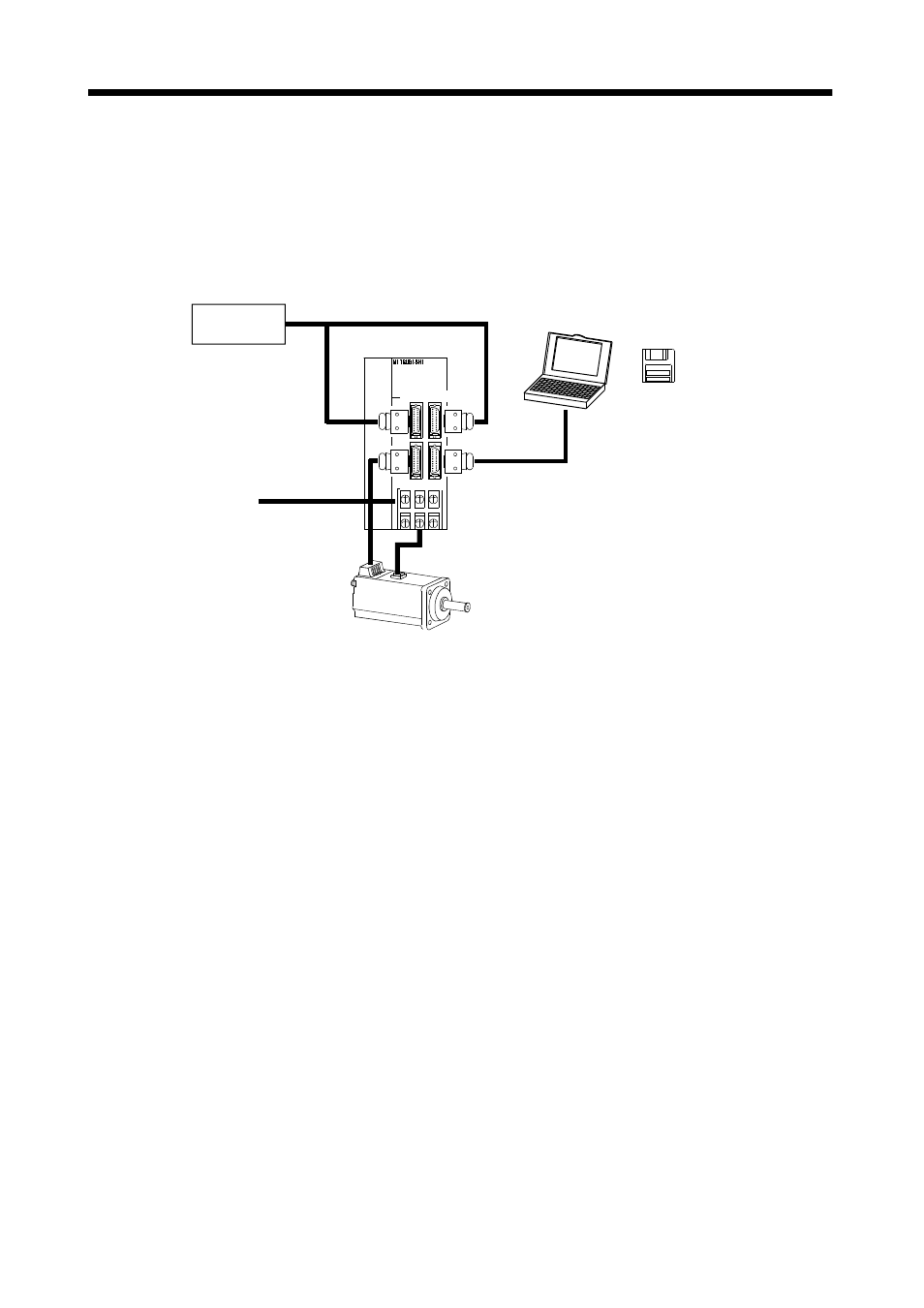

(b) Configuration
1) One servo amplifier is connected with the personal computer by RS-232C.
Servo amplifier
External I/O
signals
Power supply
Servo motor
RS–232C
Servo configuration
Software
Personal
computer
CN1A CN1B
CN2 CN3
