1. FUNCTIONS AND CONFIGURATION
Function Description Reference
Analog monitor The servo status is output in terms of voltage in real time. Section 5.2.4
Alarm history
By using the Servo configuration Software, the current alarm and
five past alarm numbers are stored and displayed.
Section 6.8
I/O signal selection (Device setting)
By using the Servo configuration Software, any devices can be
assigned to 9 input, 5 output and 1 I/O pins.
Section 6.6
Torque limit
Servo motor-torque is limited.
Parameter 2 limit value
Analog input 1 limit value
Section 3.2.5
Override (speed limit)
The servo motor speed is limited by analog input.
The ratio of override to the set speed can be changed between 0 to
200%.
Section 3.2.4
Status display The servo status is displayed. Section 7.2
Test operation mode
Jog, Positioning, Operation w/o motor, Forced output, Program
test
Section 6.7
Limit switch
The servo motor travel region can be limited using the forward
rotation stroke end (LSP)/reverse rotation stroke end (LSN).
Section 5.2.5
Software limit
The travel region is limited using parameters in terms of address.
The function similar to that of a limit switch is limited by
parameter.
Section 5.2.9

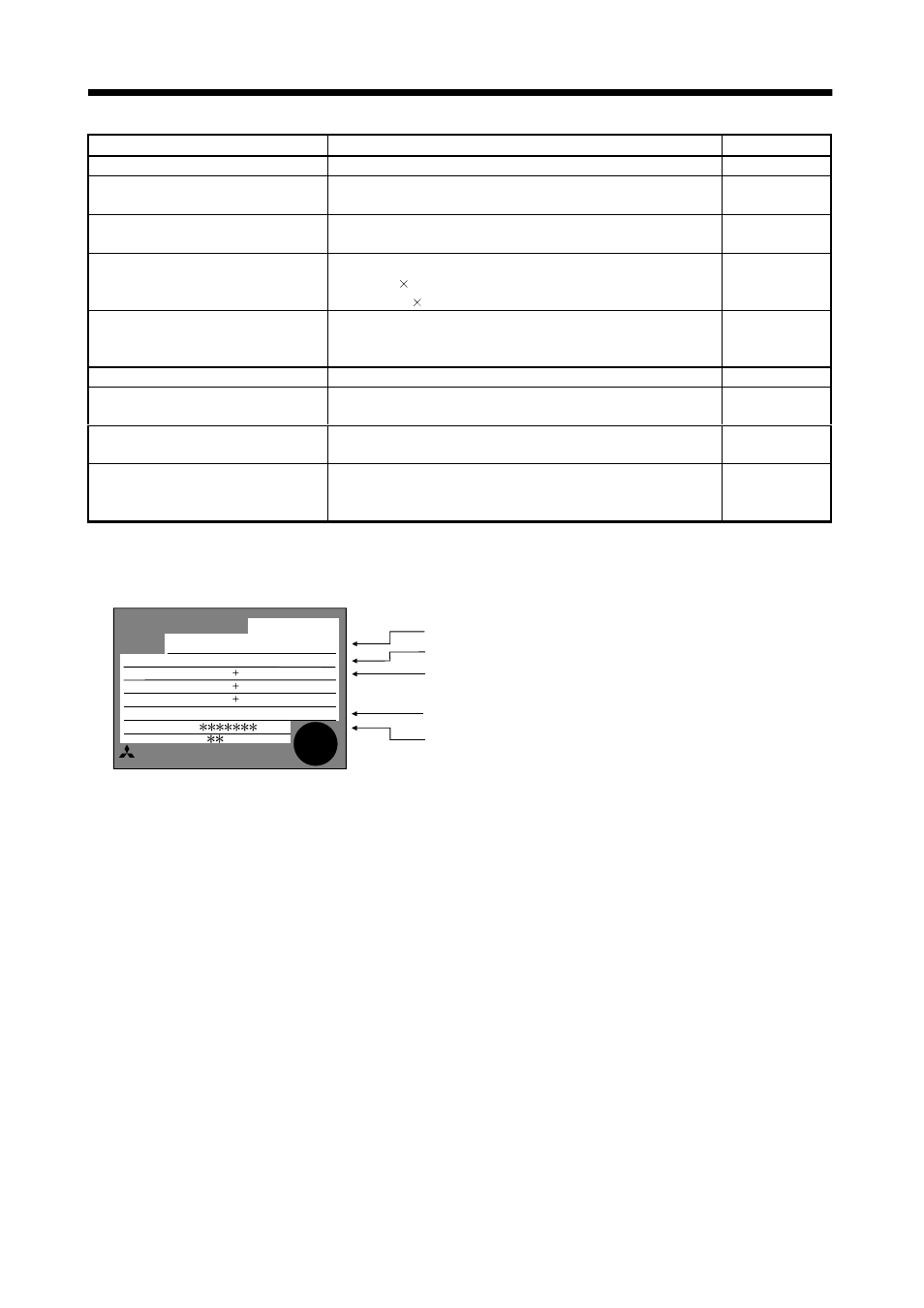

1.4 Model code definition
(1) Rating plate
POWER
MITSUBISHI
AC SERVO
MADE IN JAPAN
MODEL MR-J2S-60CL
MITSUBISHI ELECTRIC CORPORATION
600W
3.2A 3PH 1PH200-230V 50Hz
170V 0-360Hz 3.6A
POWER :
INPUT :
OUTPUT :
SERIAL :
AC SERVO
A5
PASSED
Model
Capacity
Applicable power supply
Rated output current
Serial number
3PH 1PH200-230V 60Hz
5.5A 1PH 230V 50/60Hz
TC3 AAAAG52
