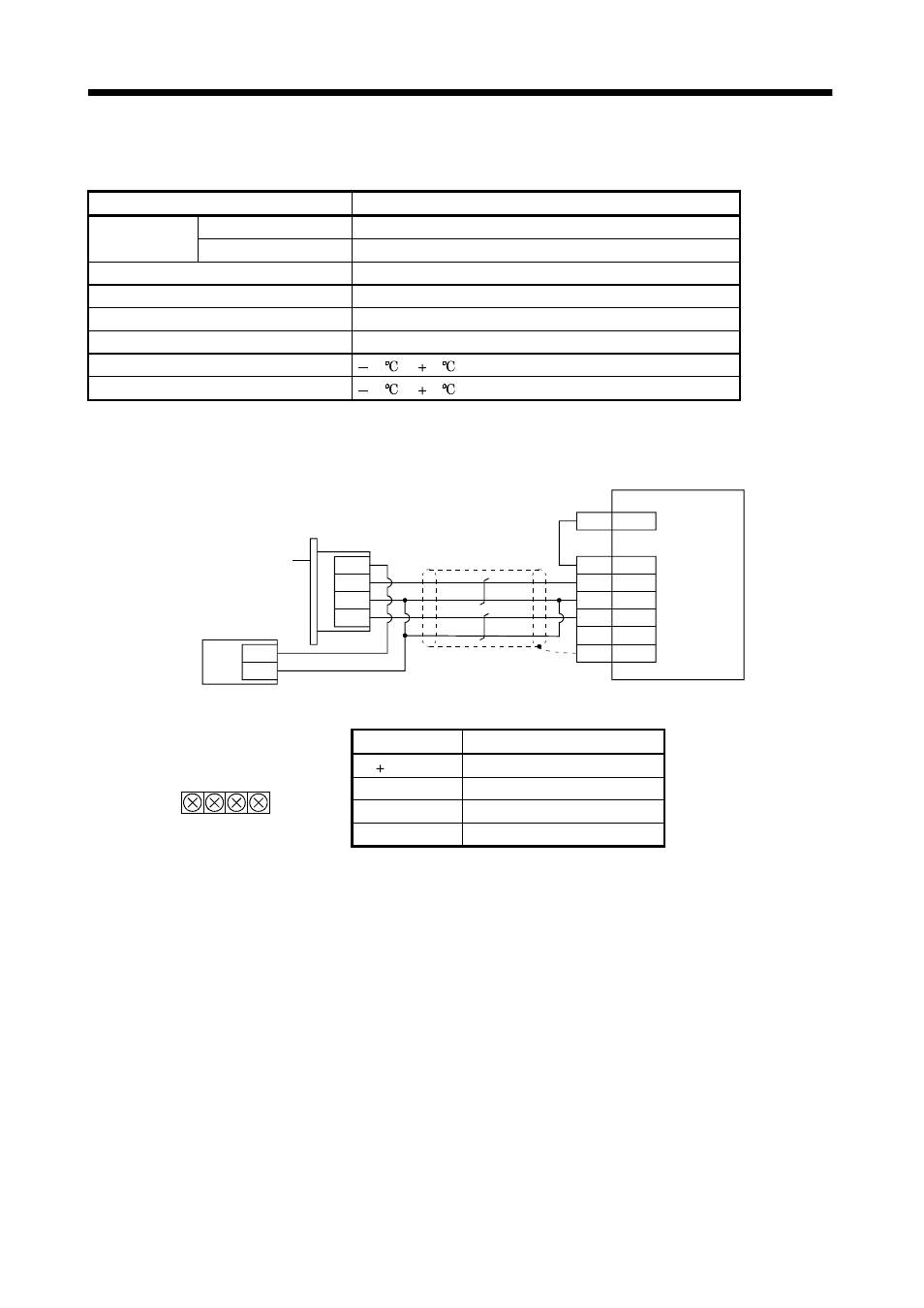

MITSUBISHI ELECTRIC MR-J2S- CL - Manual (Page 281)

14 - 28
14. OPTIONS AND AUXILIARY EQUIPMENT
14.1.8 Manual pulse generator (MR-HDP01)
(1) Specifications
Item Specifications
Voltage 4.5 to 13.2VDC
Power supply
Current consumption 60mA max.
Interface Output current max. 20mA for open collector output
Pulse signal form 2 A-phase and B-phase signals with 90°phase difference
Pulse resolution 100pulse / rev
Max. speed Instantaneous max. 600r/min, ordinary 200r/min
Operating temperature range 10 to 60
Storage temperature range 30 to 80
(2) Connection example
Use an external power supply to supply power to the manual pulse generator.
Manual pulse generator
MR-HDP01
SV
A
OV
B
External
power
supply +5
GND
VDD
OPC
PP
SG
NP
SD
3
11
3
10
2
Plate
Servo amplifier
CN1B
CN1A
(3) Terminal arrangement
Signal name Description
5 to 12V Power input
0V Power and signal common
A A-phase pulse output
+5 to
12V 0V A
B
B B-phase pulse output
