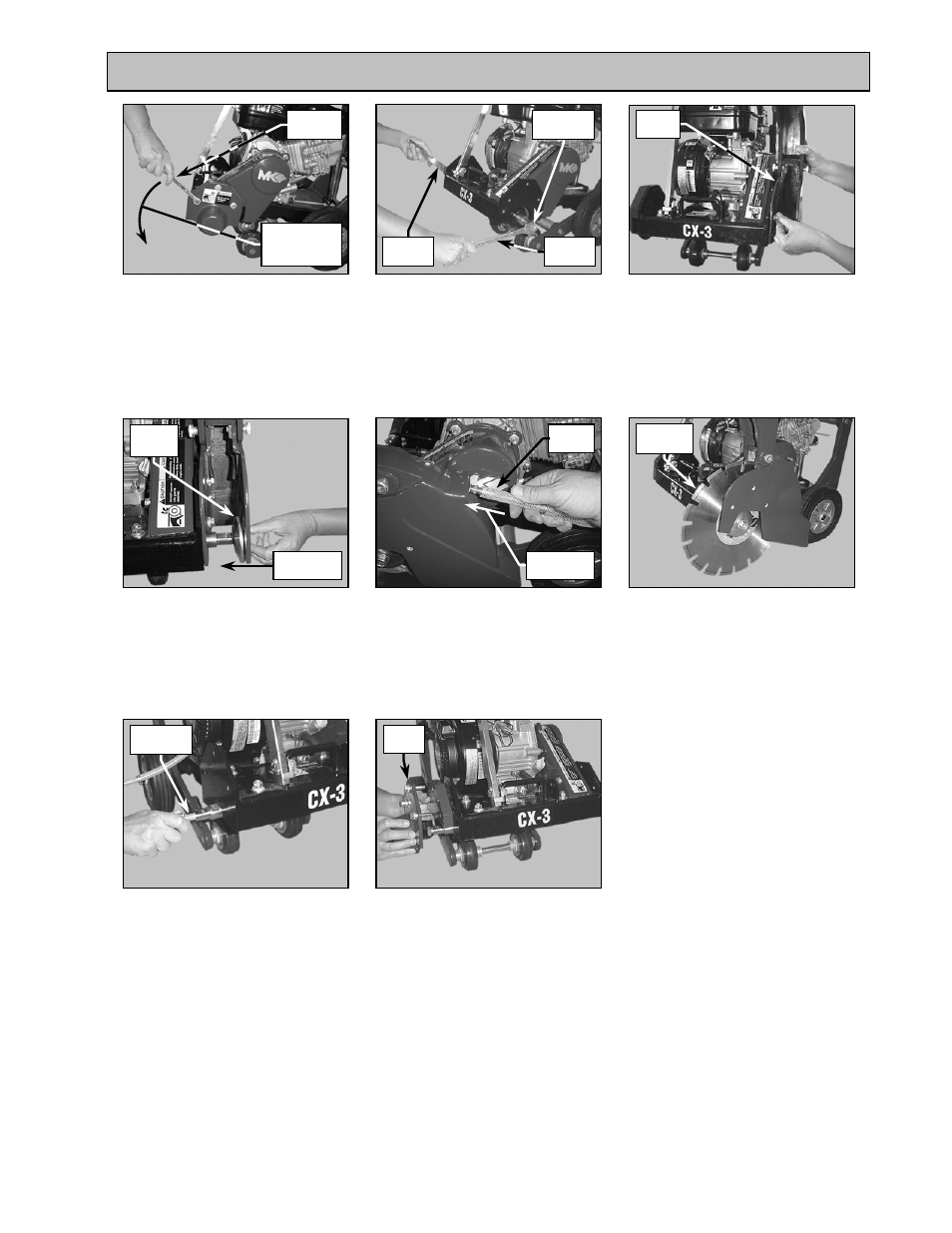

MAINTENANCE AND TROUBLESHOOTING
(H)
Remove the Shaft Thread
Protection Screw using the Shaft
Wrench and a 5/8” Wrench
(G)
Remove the Blade Shaft Cover
Retaining Screws and the Blade
Shaft Cover
(I)
Install the Blade Guard on the
opposite side of the CX-3
(K)
Install the Cooling Transfer Hose
from the Blade Guard
(J)
Install the Inner Blade Flange
(L)
Install the Blade
(See Blade Removal /Installation
section)
(N)
Install the Blade Shaft Cover
(M)
Install the Shaft Thread Protection
Screw
7/16”
Wrench
Cooling
Hose
Inner
Flange
Direction of
Installation
Turn counter-
clockwise to
loosen
5/8”
Wrench
Protection
Screw
Shaft
Wrench
Blade
Guard
Direction of
Installation
Diamond
Blade
Protection
Screw
Shaft
Cover
