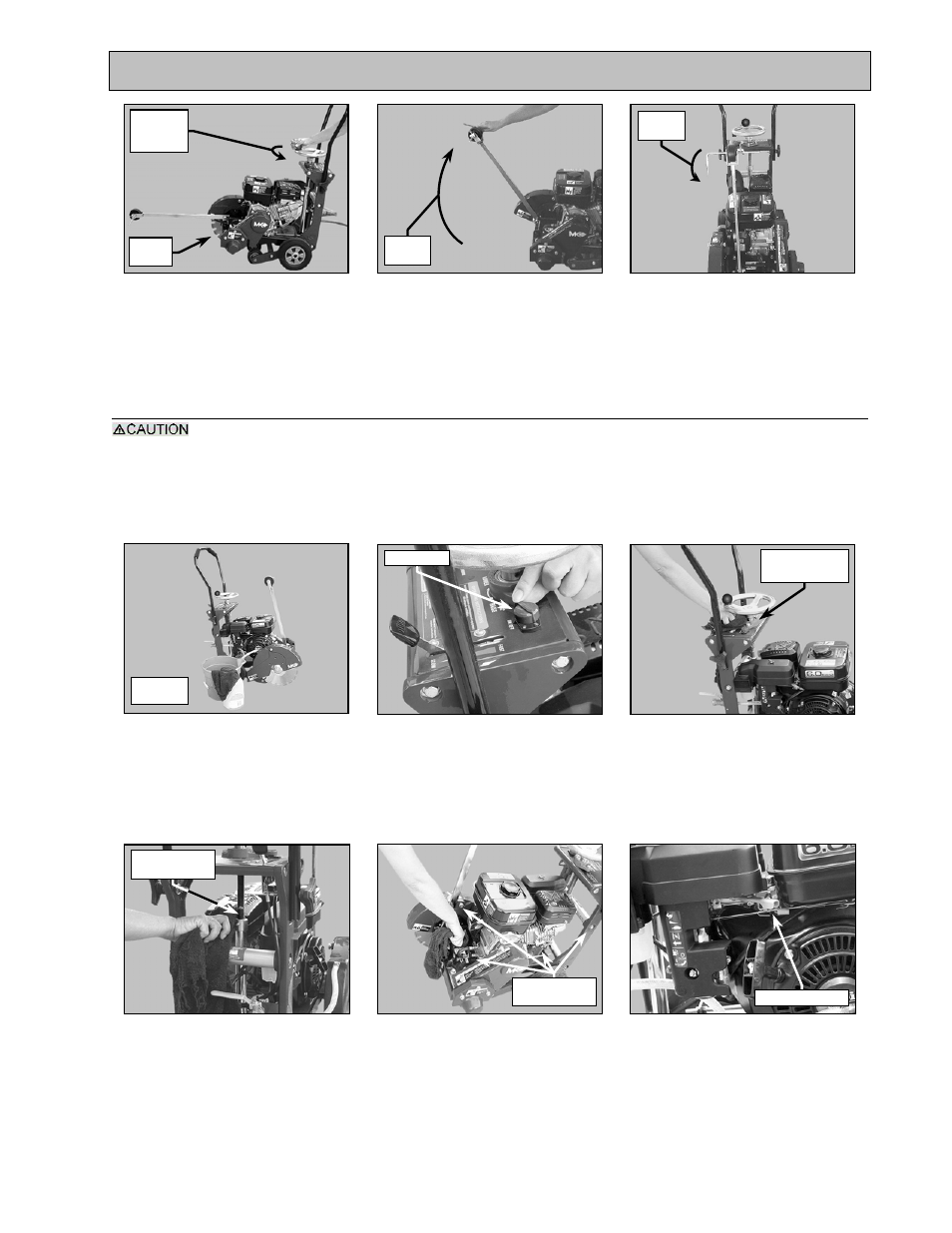

SETUP, STARTUP, ADJUSTMENT, OPERATION and SHUTDOWN
6. Cleanup:
Engine parts are extremely hot following use, allow engine to cool 1/2-hour before cleaning. Use
care during cleanup to avoid injury.
NOTE: 1. To extend operating life, the Concrete Saw should be cleaned following every use.
2. Using a garden hose or pressure washer can force water into the air cleaner or muffler opening.
3. Use care when cleaning around electrical components.
(F)
Clean engine throttle linkage with a
dry cloth
(C)
Clean around the Depth Control
Wheel bearing
Soap and
Water
(A)
Clean the CX-3 with soap and
water
(E)
Clean the remainder of the exterior
surface of the CX-3 (except the
engine)
(D)
Clean the Depth Control Screw
Depth Control
Wheel Bearing
(B)
Verify the engine is off and cool
before beginning to clean
Depth Control
Screw
(D)
Raise the Blade
Blade
Raised
Rotate
clockwise
to raise
(E)
Raise the Pointer Assembly
Raise
Pointer
(F)
Rotate the Pointer downward
Lower
Pointer
Engine Off
Clean Exterior
Surfaces Throttle Linkage
