MK CX-3 Revision 09/04, Effective Date September 17, 2004 Page 21

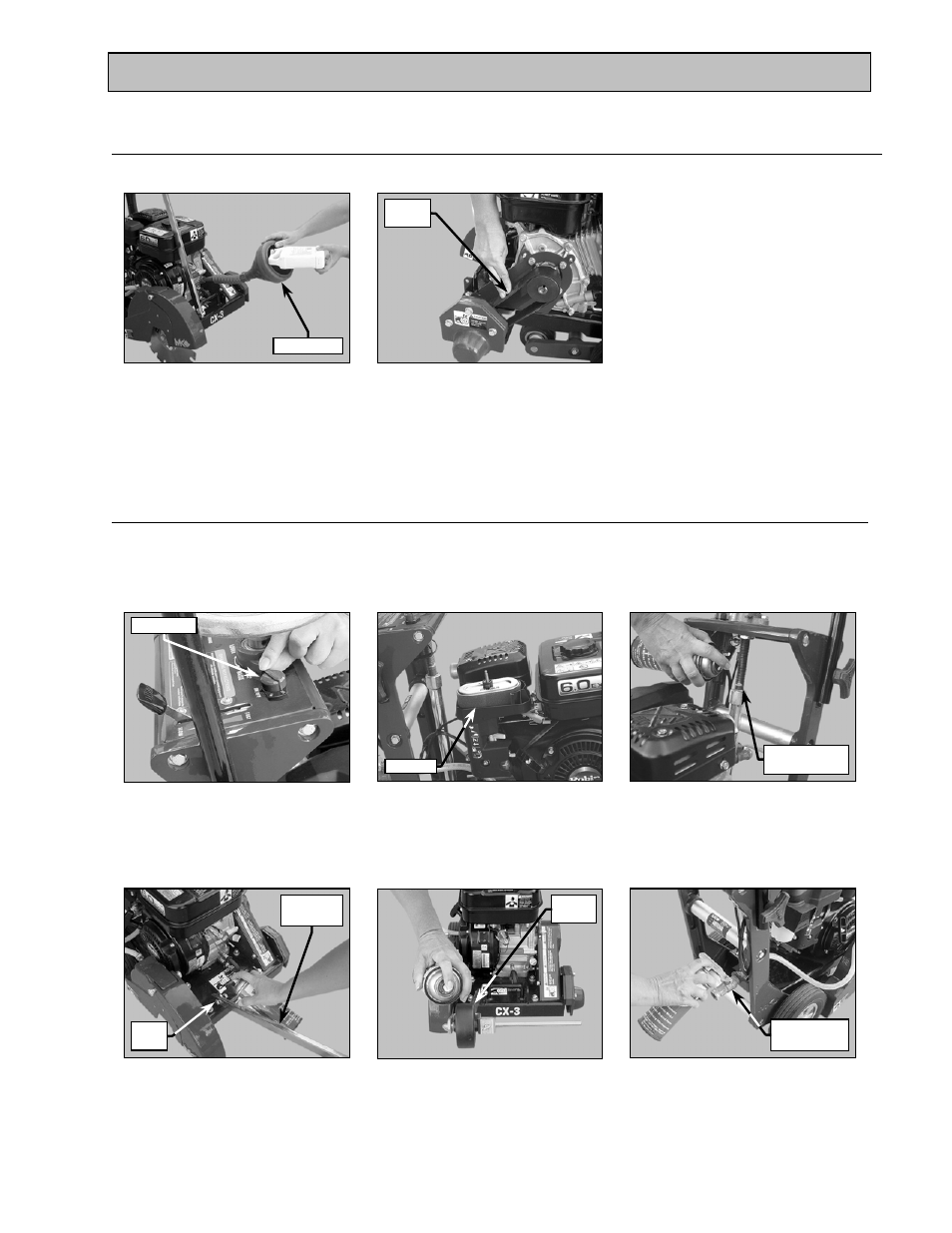

MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE:
1. New Maintenance:
Perform the following after initial purchase and operation of the saw.
2. Maintenance Following Use:
The following maintenance should be performed following each use. Use Light oil, such as WD-40 or 3 in 1
when lubricating parts.
NOTE: Due to the material used in the Blade and Shaft, it is critical that Steps C and D be performed.
(B)
Check Air Filter for cleanliness
(See Maintenance section if dirty)
(E)
Lubricate the Pointer Wheel
Assembly
(B)
Check and adjust tension on all V-
belts following 1 st 48 hours of
operation (See V-belt Inspection)
(D)
Lubricate the pivot point of the
Pointer Assembly
(A)
Change engine oil after 1 st month or
1 st 20 operating hours (See Engine
Oil Change)
Change Oil
(A)
Shutdown the Engine
(See Normal Engine Shutdown)
(C)
Lubricate the Grease fitting
Inspect
V-belt
Engine Off
Air Filter
Grease
Fitting
(F)
Lubricate the Cooling Supply Valve
Pointer
Wheel
Cooling
Supply Valve
Pivot
Point
Pointer
Assembly
