MK Diamond Products MK CX-3 - Manual (Page 33)

MK CX-3 Revision 09/04, Effective Date September 17, 2004 Page 33

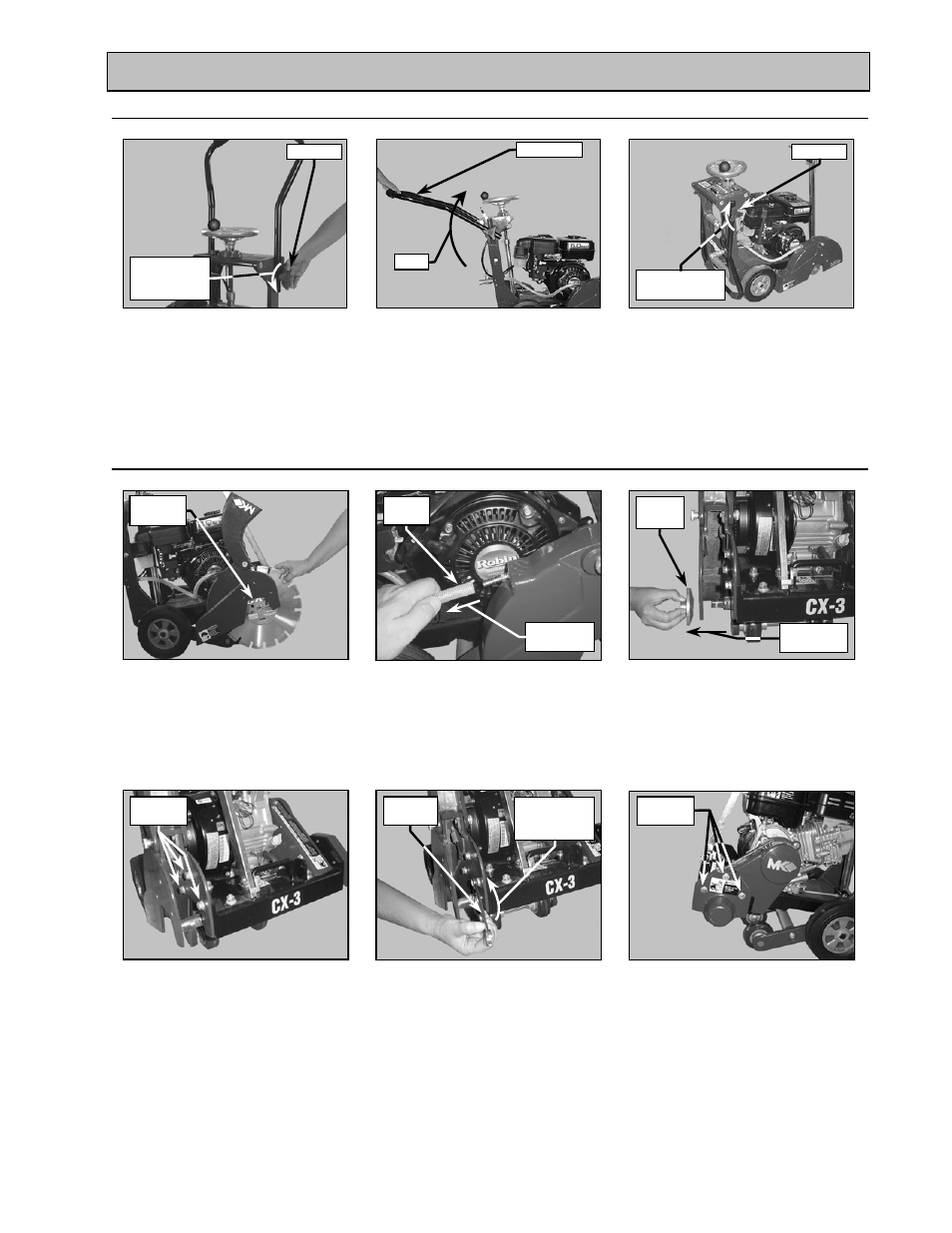

MAINTENANCE AND TROUBLESHOOTING
13. Handlebar Repositioning for Storage:
14. Blade Repositioning:
(C)
Tighten the Tri-Knobs on both
sides of the Handlebar
(B)
Pivot the Handlebar in the forward
direction towards the motor
(E)
Remove the Blade Guard Retaining
Screws and Remove the Blade
Guard
(D)
Locate the 3 Blade Guard Retaining
Screws
(A)
Loosen the Tri-Knobs on both
sides of the Handlebar
Tri-Knob
Turn counter-
clockwise to
loosen
Handlebar
Pivot
Tri-Knob
Turn clockwise
to tighten
(F)
Locate the Blade Shaft Cover
Retaining Screws
(A)
Install new Diamond Blade onto
Blade Shaft
Diamond
Blade
(C)
Remove the Inner Blade Flange
(B)
Remove the Cooling Transfer Hose
from the Blade Guard
Direction of
Removal
7/16”
Wrench
Cooling
Hose
Inner
Flange
Direction of
Removal
Retaining
Screws
Retaining
Screws
Turn counter-
clockwise to
loosen
