UNPACKING, TRANSPORT and ASSEMBLY

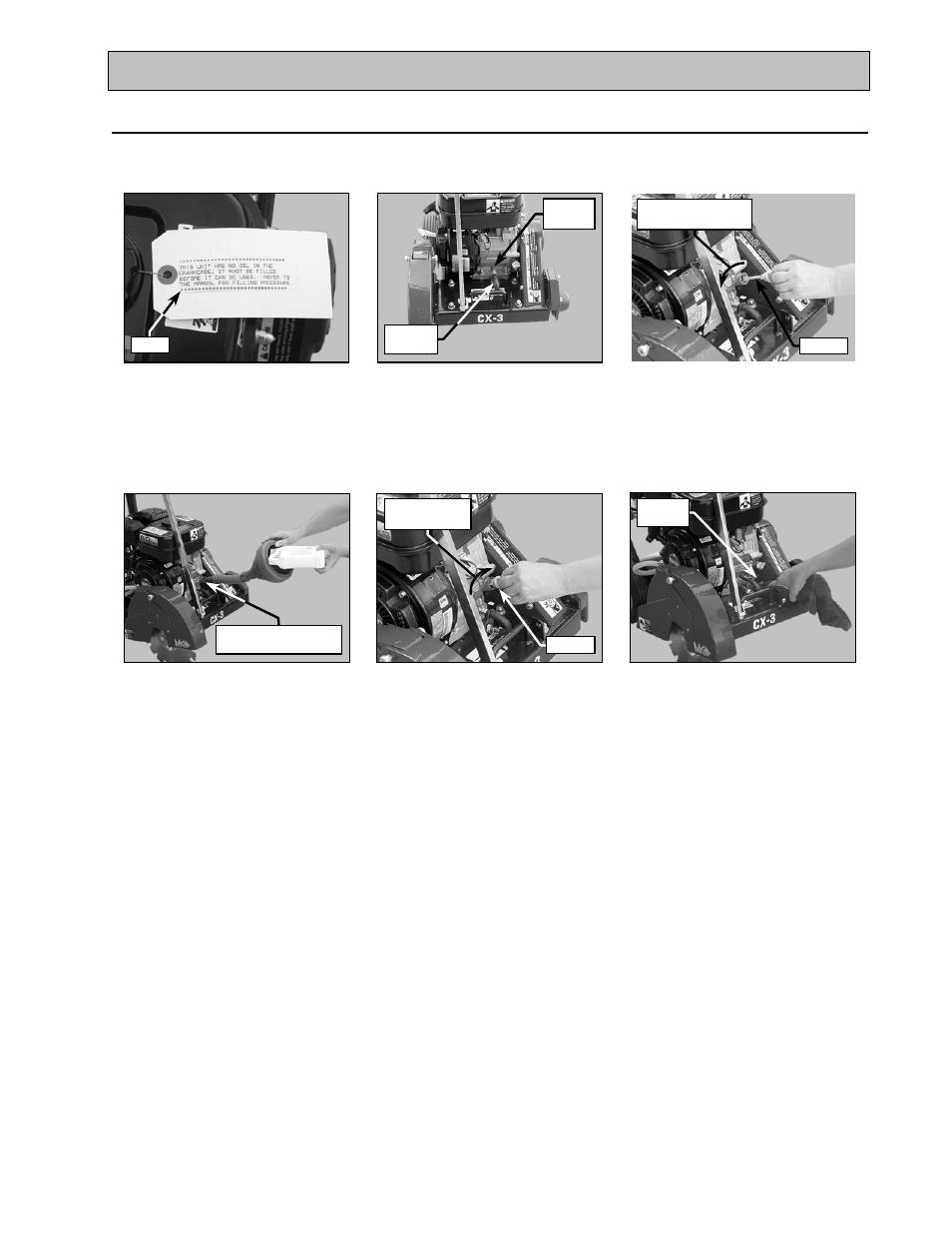

4. Filling Oil Reservoir:
NOTE: SAE 10W-30 is recommended for general use in temperatures of – 4ºF (20ºC) and above. If you
are operating outside of this range, consult the chart in this manual.
Engine Oil Capacity is 0.63 US qt (0.6l).
(C)
Remove the Oil Reservoir
“Dipstick”
(B)
Verify the Oil Drain Cap is
installed onto the Oil Drain Line
and is tight
(A)
Read and remove caution tag
attached to the Gas Cap
(F)
Cleanup any excess oil
(E)
Install the Oil Reservoir
“Dipstick”
(D)
Fill the Oil Reservoir
(CAUTION: Do not overfill)
Read
Turn counter-
clockwise to tighten
Dipstick
Oil Drain
Cap
Oil Drain
Line
Fill through Reservoir
oil level hole Dipstick
Turn clockwise
to tighten
Wipe up
excess oil
