MK CX-3 Revision 09/04, Effective Date September 17, 2004 Page 11

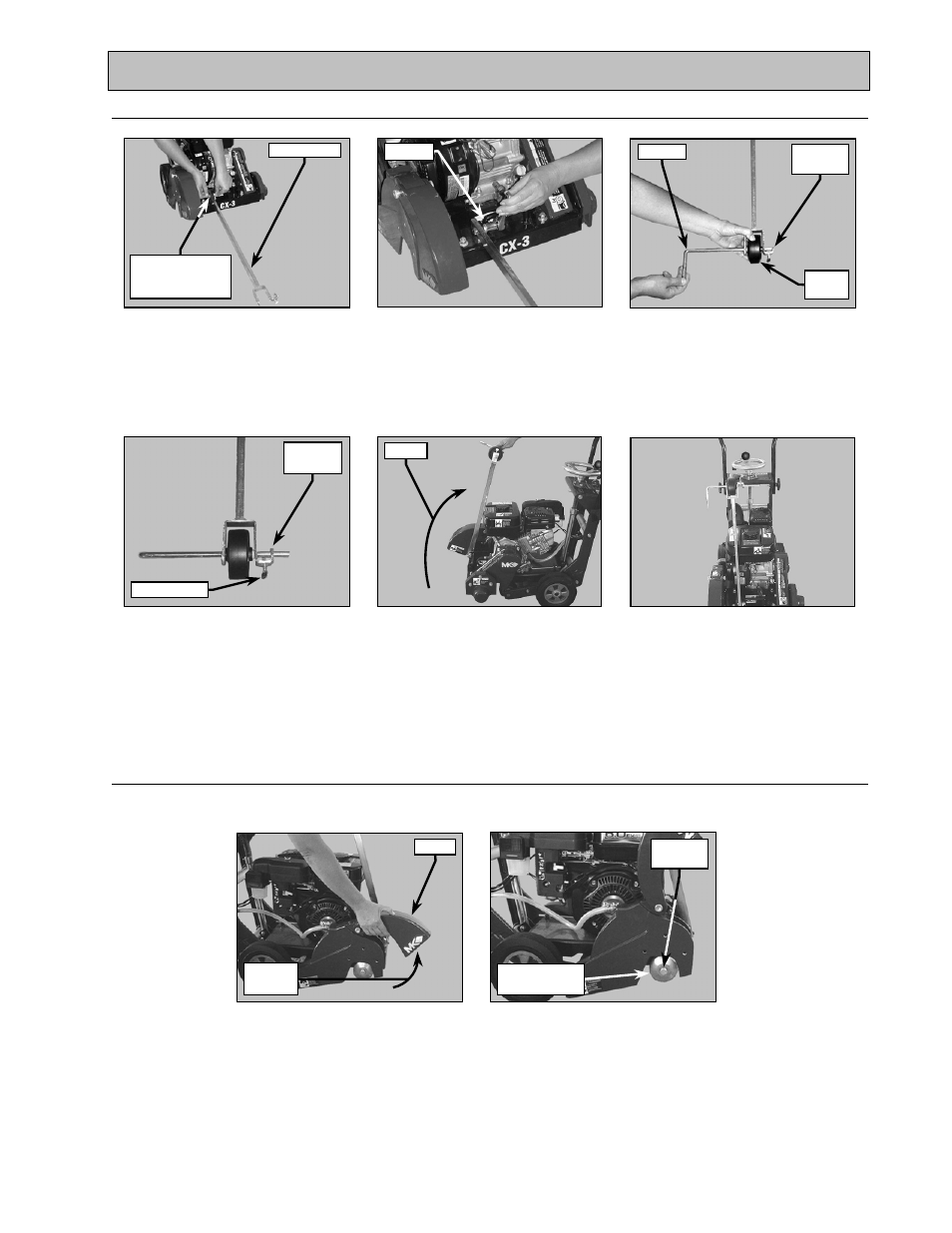

UNPACKING, TRANSPORT and ASSEMBLY
2. Cutting Pointer Arm Installation:
3. Diamond Blade Installation:
NOTE: When installing the diamond blade retaining-bolt, ensure the threads of the bolt are aligned with the
threads of the drive shaft so as not to “cross-thread" the bolt.
(B)
Locate the Blade Retaining Screw,
the Outer and the Inner Flange
(A)
Open the Blade Guard Cover
Direction
to Open
Cover
Inner and Outer
Flanges
Retaining
Screw
(C)
Install the Pointer Wheel, the
Pointer and the Pointer Retaining
Clip
(B)
Tighten the Nylock Nut and 3/4-
inch screw
(A)
Install the Pointer Arm using the
Stop Clip, a 3/4-inch screw, flat
washer and a Nylock Nut
(F)
Rotate the Pointer down
(E)
Rotate the Pointer Arm into the
upright position
(D)
Tighten the Retaining Clip
Thumbscrew
Stop Clip, Screw,
Flat Washer and
Nut
Pointer Arm Tighten Retaining
Clip
Pointer
Wheel
Pointer
Retaining
Clip
Thumbscrew
Rotate Pointer Rotate
