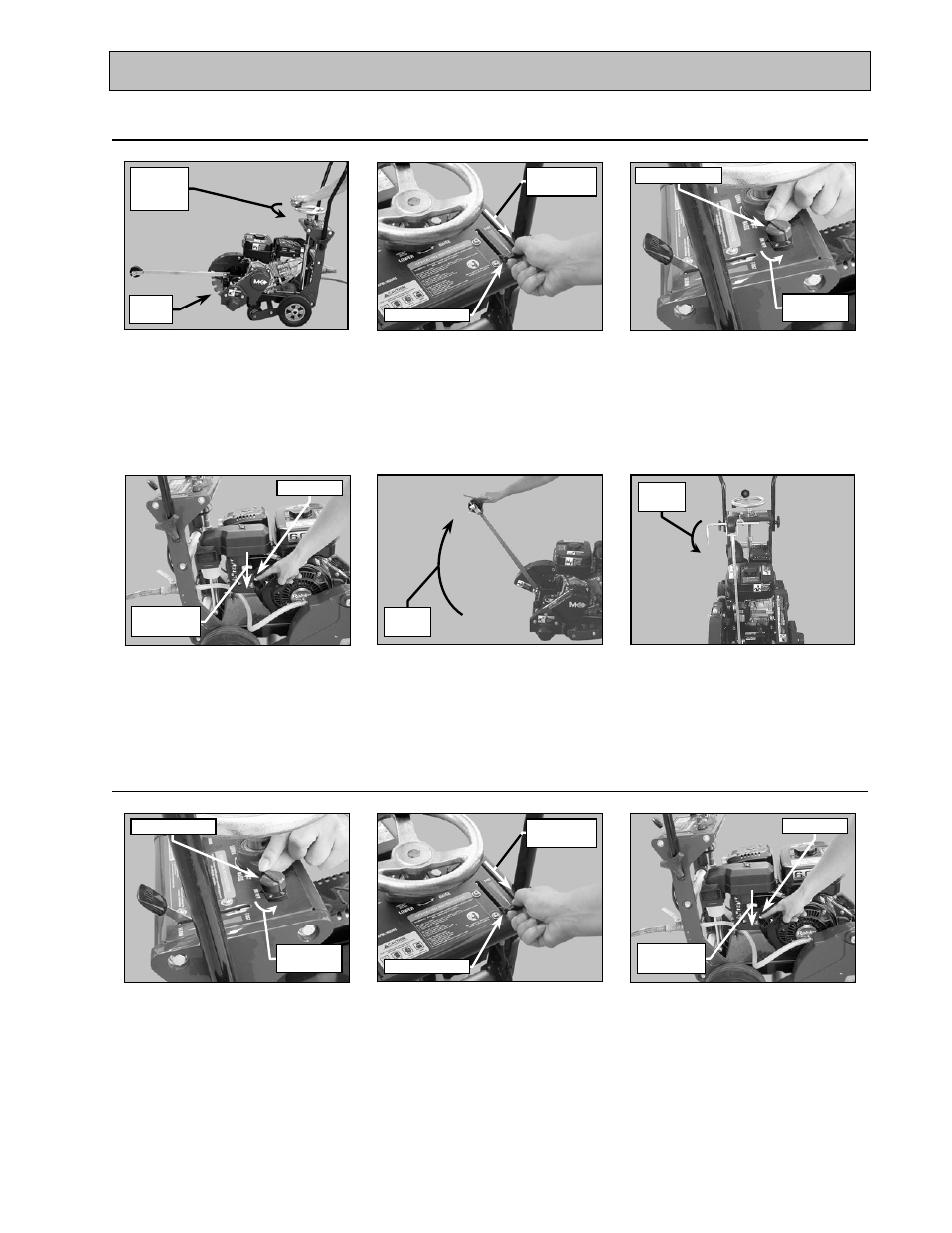

SETUP, STARTUP, ADJUSTMENT, OPERATION and SHUTDOWN
SHUTDOWN:
4. Normal Engine Shutdown:
5. Emergency Engine Shutdown:
(C)
Place Engine Master Switch in the
OFF position
(B)
Move the Throttle Lever to the
minimum “Slow” position to lower
the Blade speed
(D)
Place Fuel Valve in the OFF
position
(B)
Move the Throttle Lever to lower
blade speed
(A)
Raise or Verify the Blade is
raised
(A)
Place Engine Master Switch in the
OFF position
(C)
Place Fuel Valve in the OFF
position
Direction of
Movement
Throttle Lever
Blade
Raised
Rotate
clockwise
to raise
Direction of
Movement
Engine Switch
Direction of
Movement
Fuel Valve
(E)
Raise the Pointer Assembly
Raise
Pointer
(F)
Rotate the Pointer downward
Lower
Pointer
Direction of
Movement
Engine Switch Direction of
Movement
Throttle Lever
Direction of
Movement
Fuel Valve
