MK CX-3 Revision 09/04, Effective Date September 17, 2004 Page 17

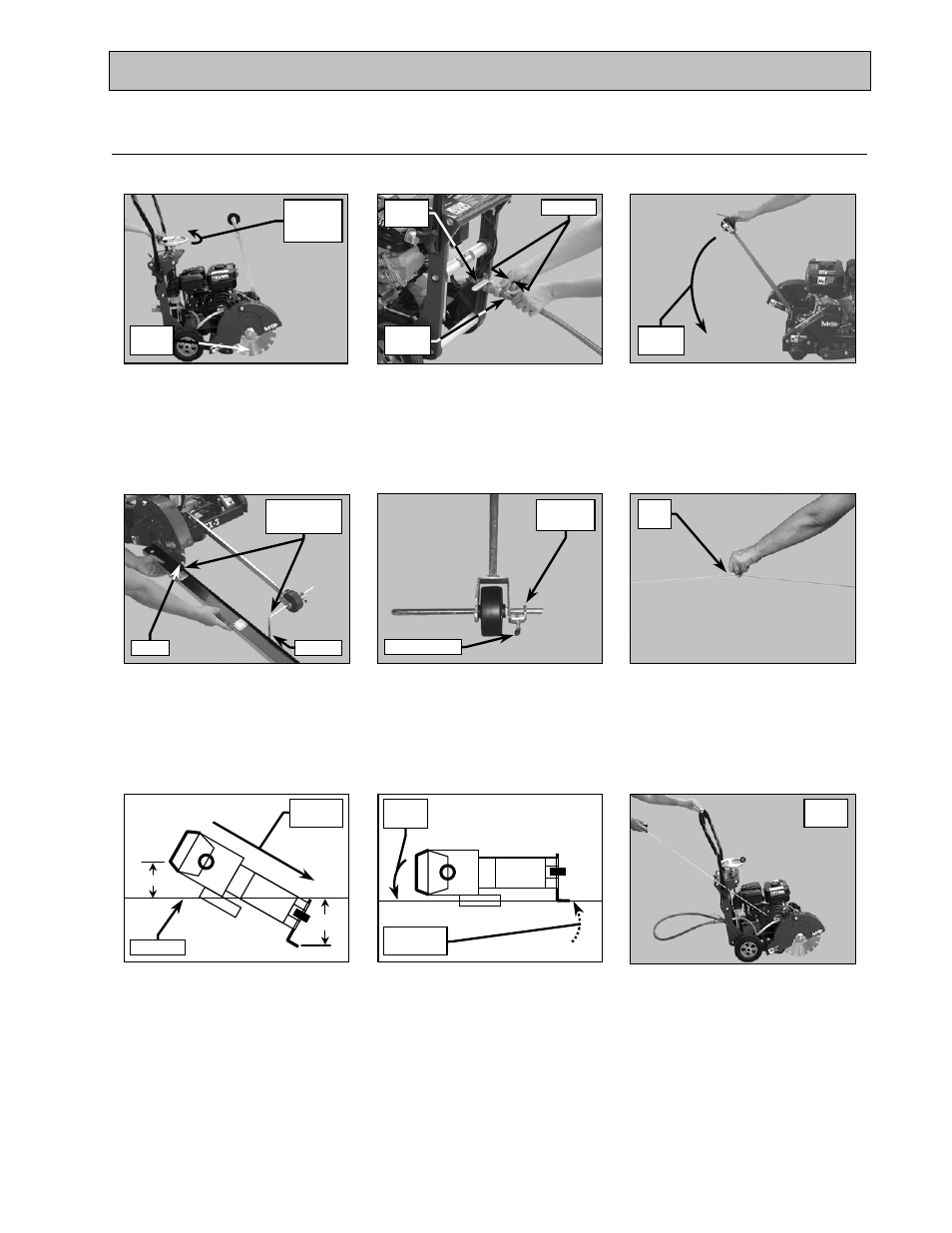

SETUP, STARTUP, ADJUSTMENT, OPERATION and SHUTDOWN
OPERATION:
3. Standard Operation:
The following is a brief overview of operating the CX-3.
A
B
(C)
Lower the Pointer Assembly
(B)
Attach the cooling supply hose to
the Cooling Inlet of the CX-3
(A)
Verify the Blade is clear of the
operating surface
Blade
Raised
Rotate
clockwise
to raise
(E)
Layout and mark the area to be cut
using a Chock-line or etc.
(D)
Using a Straightedge, align the
Pointer to the Blade
(H)
Start the CX-3 using the Engine
Start procedure on Page 16
(G)
Lift the rear wheels slightly off the
ground and swing the rear of the
saw around until the pointer and
Blade are over the line; do not tilt
the saw too far forward to keep
the Blade from contacting the
concrete
(F)
Push the saw diagonally across the
marked cut line and stop when the
distance from the rear of the saw to
the line (distance A) and the
distance from the pointer to the line
(distance B) are approximately
equal
(D)
Tighten the Retaining Clip
Thumbscrew
Retaining
Clip
Thumbscrew
Cooling
Inlet
Connect
Cooling
Supply
Lower
Pointer
Align with
Straightedge
Blade Pointer
Mark
Line
Pointer
Movement
Lift and
Move
Cut Line
Direction
of Push
Start
CX-3
