MK CX-3 Revision 09/04, Effective Date September 17, 2004 Page 30
MAINTENANCE AND TROUBLESHOOTING

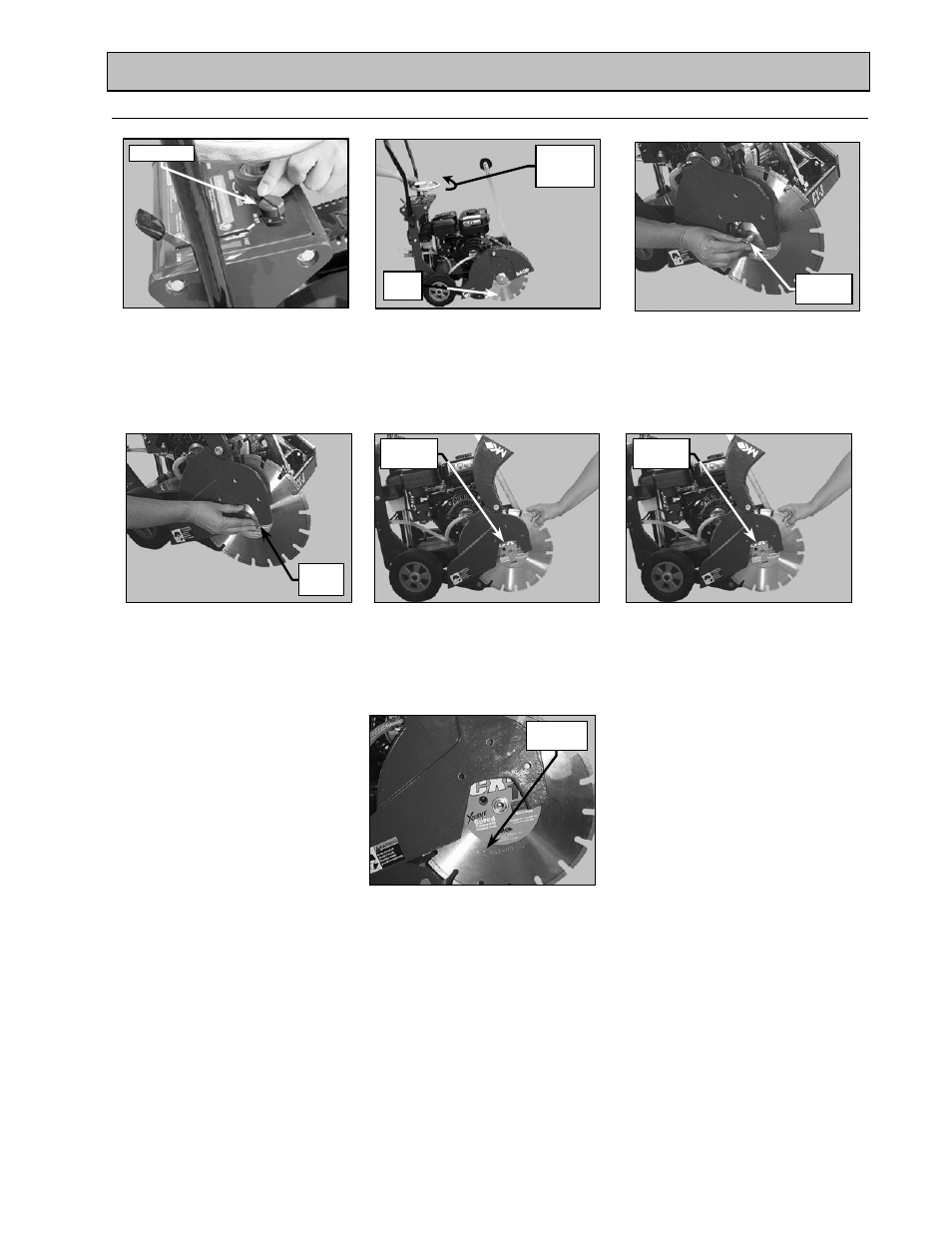

10. Diamond Blade Change-out:
(A)
Verify the Engine Switch is in the
OFF position
Engine Off
(B)
Use the Depth Control Wheel to
raise the Blade clear of the floor
Raise
Blade
Rotate
clockwise
to raise
(F)
Install new Diamond Blade onto
Blade Shaft
(E)
Remove the old Diamond Blade
Diamond
Blade
Diamond
Blade
(C)
Remove the Blade Retaining Screw
Retaining
Screw
(D)
Remove the Outer Flange
Outer
Flange
(G)
Verify the direction of rotation
arrow of the Blade matches the
direction of rotation on the CX-3
Rotational
Arrow
