Chapter 2: Installing and Setting Up your Autoloader www.gateway.com
16
Installation in a .375 square-hole rack
To install the rail in a .375 square-hole rack:
1 Identify the correct mounting holes on the vertical rail, making sure that
the selected holes are on the same level as the mounting holes on the
other three vertical rails.
2 Mount the front cover plate to the vertical rail in the identified holes by
using 10-32 x .625 bolts in the center two holes of the plate.
3 Install the chassis into the rack by aligning the chassis-mounted rails with
the mounted rail assemblies, then pushing the chassis into the rack.
4 Secure the chassis into the rack by bolting the autoloader tabs to the
upper and lower holes in the front cover plate using 10-32 x .625 bolts.

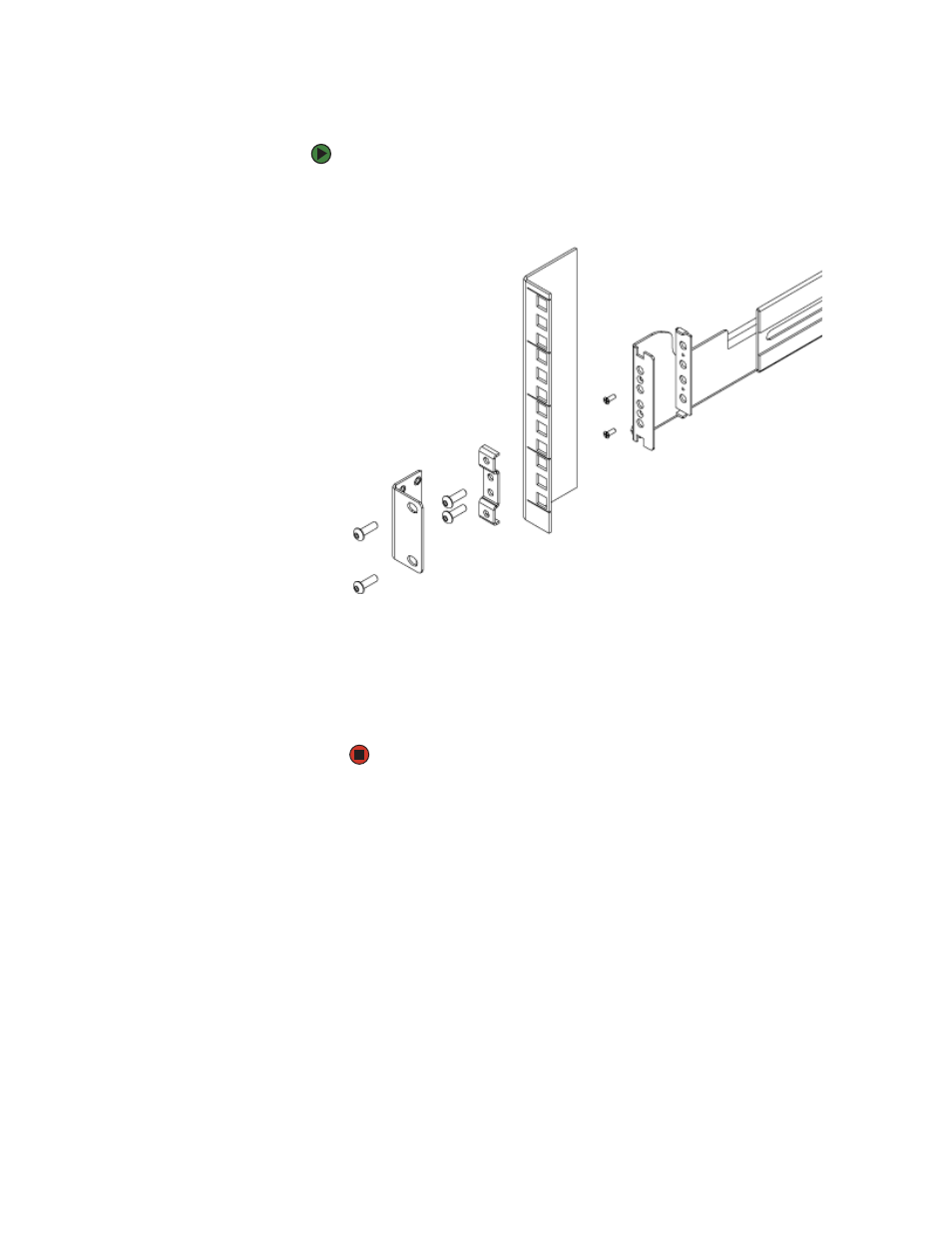

Front cover
plate
10-32 inside
nut plate
Rail
assembly
Vertical rail
Autoloader tab
(autoloader not
shown)
