Magnum 6K32 Managed Switch Installation and User Guide (02/05)
49
www GarrettCom com . .
FX , LC Small-Form-Factor

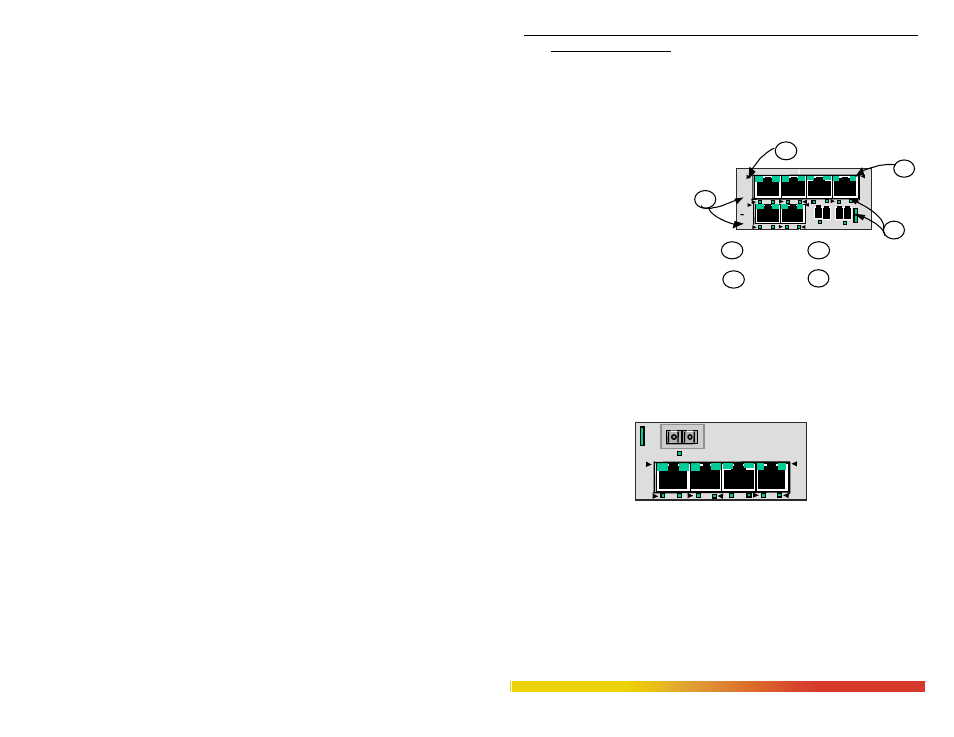

The Magnum 6KP8-45SLC eight port Module is a combo module with copper
and fiber (Small Form Factor) LC type fiber ports.
The small size of LC connectors
give an advantage of placing more
ports on one module. The 6KP8-45-
2SLC is equipped with 6 10/100
RJ-45 ports and 2 Single-mode fiber
ports.
When installed in a Magnum 6K32
Switch, it supports the standard
distances as mentioned on 5.2.4.
and the LEDs also act similarly.
5.2.11 GBIC-SXSC Gigabit fiber(1000Mb), multi-mode SC Connector
The Magnum GBIC-SXSC is a multi-mode Gigabit fiber connector
equipped with SC type connectors and can be easily snapped in and out. The Gigabit
fiber ports are most popular as server-to-switch and switch-to-switch applications. It
supports cable distances up to the IEEE 802.3z standard 1000Mbps distance limits, i.e.,
550m at full duplex.
1@ 1000Mb Fiber SC + 4@10/ 100Mb
The GBIC transceiver has been offered in the modular slot with multiple options as per
the user requirement. The two Giga port has been offered as GBPM-2OTX (fiber or RJ-
45), whereas the single Gigabit module comes in flavor of G+2 (100Mb fiber ports) or
G+4(10/100 RJ-45 ports) as shown in the above figure.
The GBIC transceiver is fastened using snap-in clips. Insert the transceiver
(take care to insert it the right way up, arrows on top) until it clicks in space. While
removing the transceiver, press the clips on either side of the transceiver at the same time
and pull the transceiver out.
Each port has an Activity (ACT) LED indicating packets being received and a
Link (LK) LED indicating proper connectivity with the remote device when lit.
1 3 5 7
10/100 L
F/ ACT
TX RX LK
ACT
F/
6KP8-45-2SLC
4
3 2 4 6 LK
2
ACT
F/ ACT
F/
-
6 Port@ 10/100Mbps & 2 port @ 100Mbps
Single -Mode Fiber port
1 3 5
10/10 LK
1
F/H ACT
4 FULL/HALF
1
ACTIVITY
LINK 2
3
10/100
10/100
F/H
