6KP4-RJ10MST,
4 Port@ 10Mb ST Fiber Port
2 6 T
LK
RX
ACT
F/H
TX RX
LK
ACT
F/H
TX RX
LK
ACT
F/H
TX RX
LK
ACT
F/H
1 5
3
2
1
FULL/HALF
1
ACTIVITY
LINK
2
3

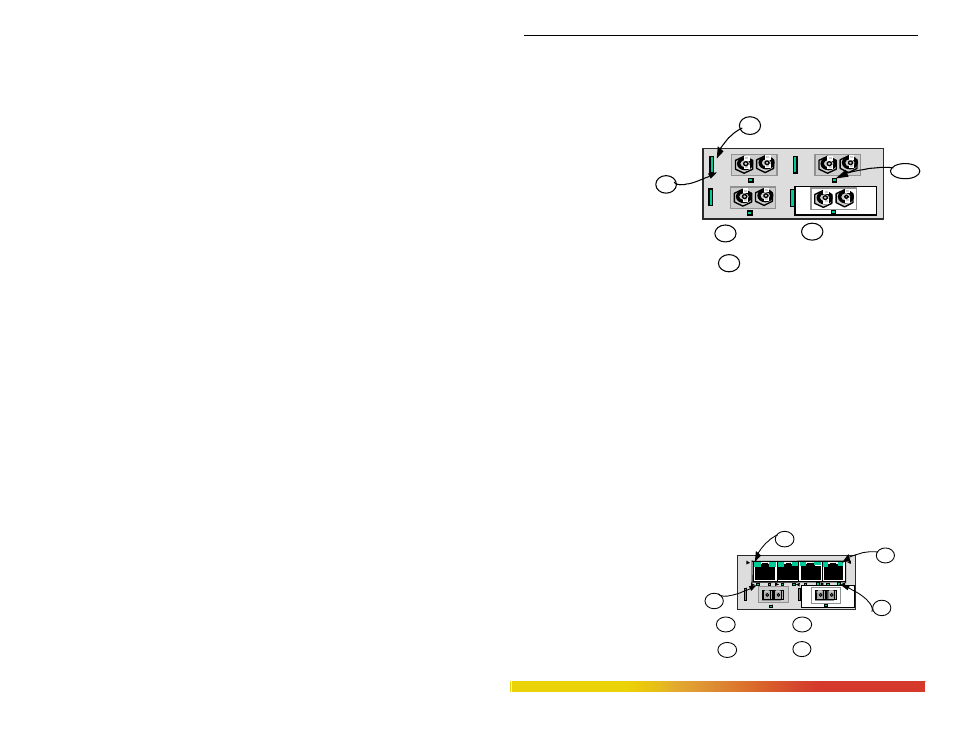

5.2.1c 6KP4-FLSTFX, 2@10Mb and 2@100Mb multi-mode FX-ST “twist
lock” Module
The Magnum 6KP4-
FLSTFX is a combo fiber
module with two 10Mb +
two 100Mb multi-mode
fiber module and in
combine 4 ST-Fiber ports.
All four fiber ports are ST
connectors and configured
as 10Mb Half-duplex by
default for 10Mb fiber and
100Mb Full duplex for the
100Mb fiber. The 10Mb ST-fiber ports allow the user to connect their legacy 10Mb
network to the Magnum 6K32 switch. They also provide a convenient way for the half
duplex hub to connect to the switch through 10Mb fiber ports. Whereas the 100Mb ST
module allow to connect the 100Mb demand of Switch devices. It supports distances
according to the 10Base-FL standard i.e, 2Km distance for multi-mode fiber. (Single-
mode for 10Km distance may be available as a special order).
Each port has an Activity (ACT) LED indicating packets being
received, a Link (LK) LED indicating proper connectivity with the remote device when
lit, and FDX/HDX LED indicating full-duplex mode when lit (or half-duplex if off).
5.2.2. 6KP6-RJMSC 4@10/100Mbps RJ-45 and 2@100Mb multi-mode FX-SC
“snap-in” Fiber connector
The Magnum 6KP6-
RJMSC is also a Combo 6 Port
module equipped with 4 10/100Mb
RJ-45 ports along with 2 multi-
mode 100Mbps fiber optic
transceivers all in one module. This
is similar to the 6K6-RJMST. It has
the same LEDs indicating port
activity (ACT), Link (LK), and
6KP6-RJMSC,
4 Port@ 10/100Mbps and 2 @100 Mb SC Fiber Port
4
FULL/HALF
1
ACTIVITY
LINK
2
4
3
3
10/100
1 3 5 7
2 6
TX RX
TX
LK RX
LK
ACT
F/H
ACT
F/H
10/100
LK
F/H
ACT
2
1
