Magnum 6K32 Managed Switch Installation and User Guide (02/05)
41
www GarrettCom com
.
.
6KP4-RJ10MST,
4 Port@ 10Mb ST Fiber Port
2 6 T
LK
RX
ACT
F/H
TX RX
LK
ACT
F/H
TX RX
LK
ACT
F/H
TX RX
LK
ACT
F/H
1 5
3
2
1
FULL/HALF
1
ACTIVITY
LINK
2
3
10/100 LED indicates the speed, if the LED is ON 100Mbps if it is OFF 10Mbps.
5.2.1a 6KP6-RJ10ST, 4@10/100Mbps RJ-45 and 2@10Mb multi-mode
FX-ST “twist lock” Combo Module
The 6KP6-RJ10ST is a six port combo module that looks similar to
the 100Mb combo module with the exception of 10Mb speed at the ST fiber module.
The ST-connector functions as a fiber optic transceiver to support 10BASE-FX network
segments. When installed in a Magnum 6K32 Managed Switch, the copper port supports
the standard distance 100m on each port and the fiber port supports fiber optic cable
distances up the IEEE-standard 10Mbps distance limits, i.e., typically 2km at full-duplex
and half-duplex.
Each port has an Activity (ACT) LED indicating packets being received, a
Link (LK) LED that indicates proper connectivity with the remote device when lit, and
FDX/HDX LED to indicate full-duplex mode when lit (or half-duplex when off). The
10/100 LED indicates the speed, if the LED is ON, 100Mbps if it is OFF, 10Mbps.

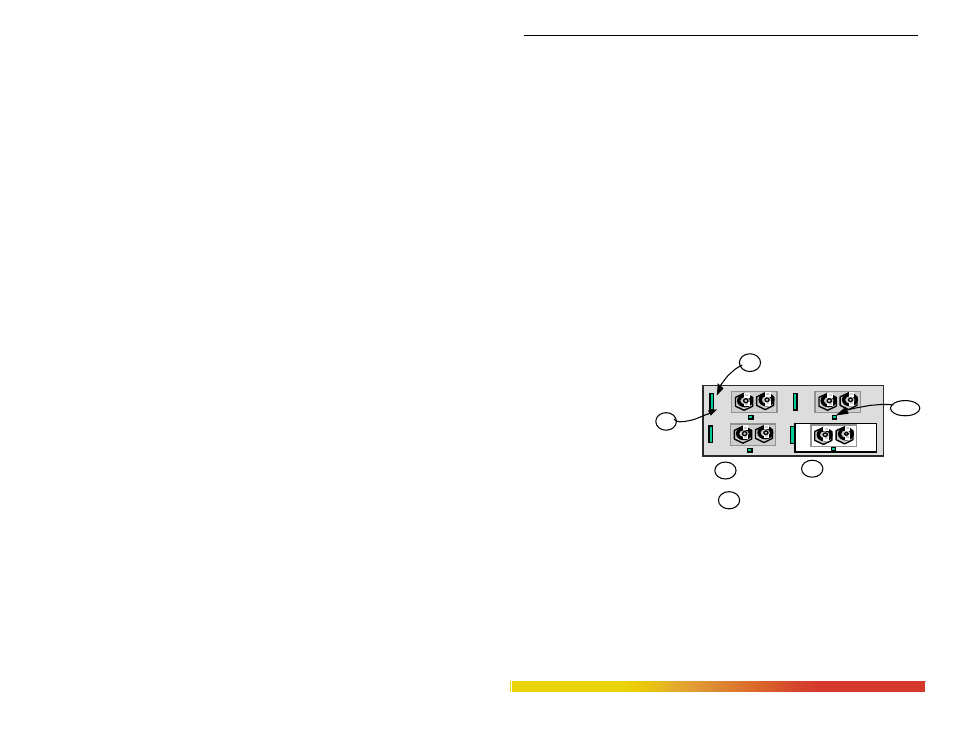

5.2.1b 6KP4-F10ST, 4@10Mb multi-mode FX-ST “twist lock” Module
The Magnum 6KP4-F10ST
is a 10Mb multi-mode
fiber module with 4 ST-
Fiber ports. All four fiber
ports are ST connectors
and configured as 10Mb
Half-duplex by default.
The 10Mb ST-fiber ports
allow the user to connect
their legacy 10Mb network
to the Magnum 6K32
switch. They also provide a convenient way for the half duplex
hub to connect to the switch through 10Mb fiber ports. It supports distances according to
the 10Base-FL standard i.e, 2Km distance for multi-mode fiber. (Single-mode for 10Km
distance may be available as a special order).
Each port has an Activity (ACT) LED indicating packets being
received, a Link (LK) LED indicating proper connectivity with the remote device when
lit, and FDX/HDX LED indicating full-duplex mode when lit (or half-duplex if off).
