FDX / HDX and 10/100 operation, and the same face-plate lettering.
While the functionality of these two modules is essentially the same, the 6KP6-
RJMSC is equipped with an SC-type "snap-in" connector instead of an ST-type.
5.2.3
6KP6-RJSSC 4@ 10/100Mbps RJ-45 Ports and 2@100Mbps single-mode
FX-SC-type,
“snap-in”
connector
The Magnum 6KP6-RJSSC
is also a Combo module
equipped with 4 dual speed
copper ports and 2 Single-
mode SC-type connectors. It
provides an advantage
through combining copper
and Fiber functions in one module of the 6K32 Switch supporting four Copper and two
single-mode fiber network segments.
The 6KP6-RJSSC, when installed in a Magnum 6K32 Switch operates on
copper at the 100m distance. The Fiber is single-mode and cable lengths can be as much
as 25+ Km (see Power Budget, Section 4.5)
Each port has an Activity (ACT) LED indicating packets being received, a
Link (LK) LED that indicates proper connectivity with the remote device when lit, and a
FDX/HDX LED to indicate full-duplex mode when lit (or half-duplex when off). The
10/100 LED indicates 100Mbps speed when lit and 10Mbps speed when off. To
distinguish the single-mode 6 K6-RJSSC from the multi-mode 6K6-RJMSC, the label
“Sgl. M.” is at the top of the faceplate of the 6K6-RJSSC.
5.2.4
6KP6-RJSSCL 4 @ 10/100 Mb copper port and 2@100Mbps single-mode
FX-SC-type, “snap-in” connector
The Magnum 6KP6-RJSSC is also a Combo module equipped with 4 dual speed copper
ports and 2 Single-mode (Long Reach) SC-type connectors. It provides a combination of
copper and Fiber functions in one module to the 6K32 Switches, supporting four Copper
and two single-mode (Long-Reach) fiber network segments.
The 6KP6-RJSSC, when installed in a Magnum 6K32 Switch has copper

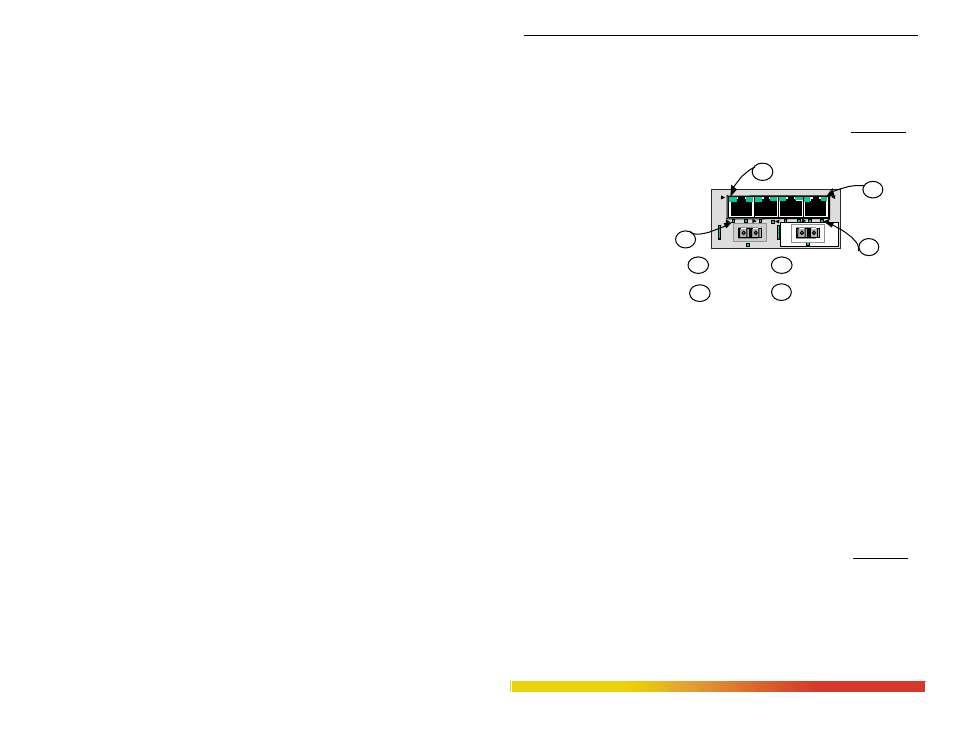

6KP6-RJMSSC,
4 Port@ 10/100Mbps and 2 @100 Mb SSC Fiber Port
