2.2.6
Gigabit (1000Mbps) port modules
The Magnum 6K32 offered a wide option Gigabit speed with multiple choice
for the modular slot. While up to two Gigabit modules (maxm.) can be configured in the
modular slot. The Gigabit port option for the modular slot comes in couple of different
configuration. The two Giga port has been offered as GBPM-2OTX (fiber or RJ-45),

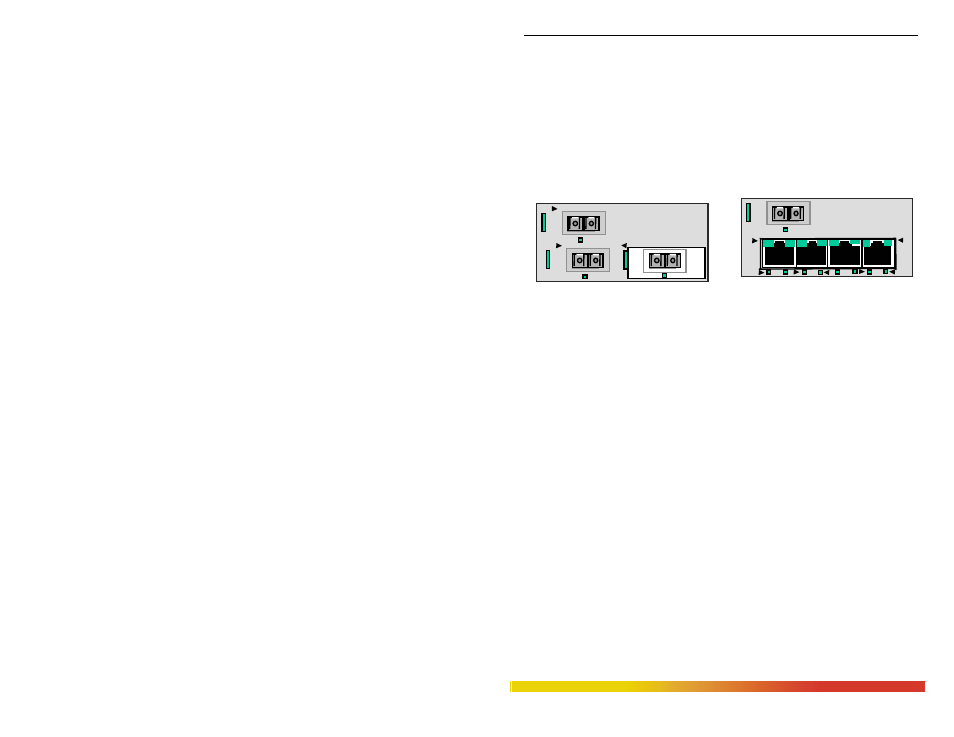

whereas the single Gigabit module comes in flavor of G+4(10/100 RJ-45 ports) or G+2
(100Mb fiber ports) as shown below in the figure.
1@ 1000Mb Fiber SC + 2@ 100Mb SC 1@ 1000Mb Fiber SC + 4@10/ 100Mb
The 6K32 modules provide a GBIC opening for insertion of industry-standard GBICs to
provide Gigabit (Gb) media flexibility. GBIC models are available for both multi-mode
(550m) and single-mode (10, 25, 40, 70)km fiber options, and for Gigabit copper as well,
with new models appearing often.
The 1000Mb Gigabit fiber-port modules on the Magnum 6K32 are normally set
(factory default) to operate at AUTO mode for best fiber distance and performance. The
1000Mbps SC fiber-optic module on the Gigabit -SX and Gigabit-LX transceivers are
compatible with the IEEE 802.3z Gigabit standards.
There are two LEDs mounted on each Gigabit port module. The Gigabit fiber
port is by default configured at AUTO mode, and can be fix at 1000Mbps speed full-
duplex mode at any times and has LEDs that indicate LK (Link status) and ACT
(receiving activity) on that port when lit.
2.2.7
Packet Prioritization, 802.1p QOS
Quality of Service means providing consistent predictable data delivery to
users from datagram paths that go all across a network. As a LAN device, the Magnum
6K32 can do its part to prevent any QOS degradation while it is handling Ethernet traffic
through its ports and buffers.
The Magnum 6K32 switching hardware supports the IEEE 802.1p standard and
