Magnum 6K32 Managed Switch Installation and User Guide (02/05)
45
www GarrettCom com
.
.
5.2.5 6KP8-MTRJ, 8 @100Mb multi-mode FX , MTRJ Small-Form-factor
Magnum 6KP8-MTRJ is a multi-mode fiber optic 8-port module equipped with
a small-form-factor MTRJ-type
connector. It looks almost like
an RJ-45 port, but it is black in
color. The MT-RJ’s small size
and ease of connection make it
a good choice for 100Mbps
“fiber-to-the-desktop” Ethernet
connectivity. When installed in
a Magnum 6K32 Switch, it
supports fiber optic cable
distances up the IEEE-standard
100Mbps distance limits, i.e.,
typically 2km at full-duplex and 412m at half-duplex.
The functionality of this 100BASE-FX multi-mode 8 Port module is essentially
the same as the ST and SC-types. It has the same LEDs per port indicating port activity
(ACT), Link (LK), and FDX or HDX operation.
5.2.5a 6KP6-MT10ST, 4 @100Mb multi-mode FX , MTRJ Small-Form-
Factor and 2@ 10Mb Multi-mode ST-Fiber port
The 6KP6-RJ10ST is a combo module with two different kinds of fiber flavor
with two different speeds. The top four ports of MTRJ Small form factor fiber support at
100Mb full-duplex, whereas the bottom two ports multi-mode ST-Fiber support 10Mb
half-duplex. This combo module provides more flexibility to the user to connect their
legacy 10Mb fiber as well as 100Mb to the Magnum 6K32 Switch.
When installed in a Magnum 6K32 Switch, the 100Mb MTRJ connector
supports fiber optic cable distances up to the IEEE-standard 100Mbps distance limits,
i.e., typically 2km at full-duplex and 412m at half-duplex. The 10Mb Multi-mode ST-
Fiber connector supports the standard fiber optic distance limit of 2Km at Full and Half-
duplex both.
The functionality of this 100BASE-FX multi-mode 4 port module is
essentially the same as the ST and SC-types. It has the same LEDs per port
“small-form-factor”
FULL/HALF
1
ACTIVITY
LINK
2
2
3
3
1 3 5 7
2 4 6 8
LK LK LK LK
ACT
F/H
ACT
F/H
ACT
F/H
1
ACT
F/H
LK LK LK LK
ACT
F/H
ACT
F/H
ACT
F/H
ACT
F/H

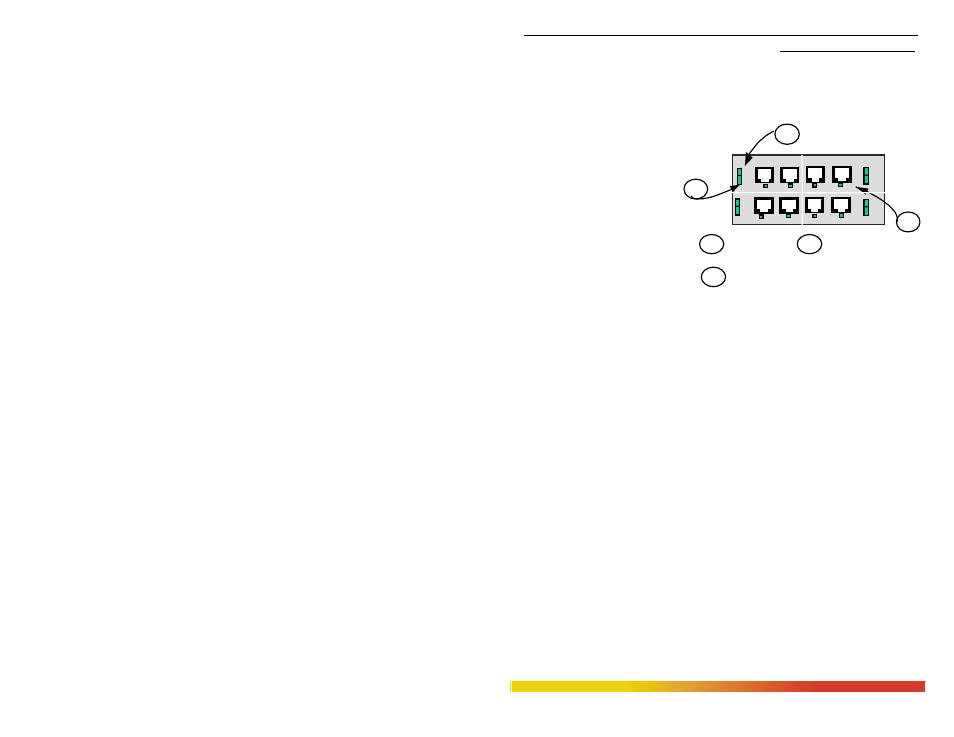

6KP8-MTRJ,
8 Port@ 100Mbps Multi-Mode Fiber port
