(#256 flat head ) which hold the PM Face plate card slot securely. These six screws

shown in the picture below are used to secure a PM face plate in position, but unscrew

only four of the screws as shown in Fig. below. These screws are also used to secure the

individual 6KPM cards screen plate which can be subjected to significant forces from the

attached cables. (See Figure 3.5.1d)

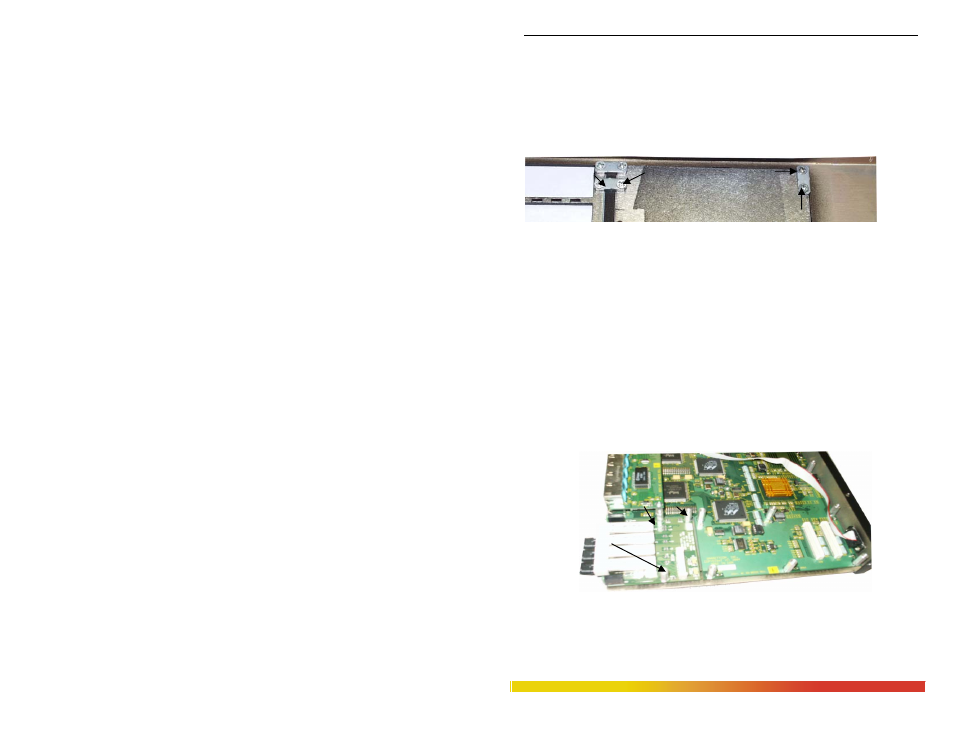

Figure 3.5.1d: Top View – 6KPM retaining screws hold Face Plate

3.5.2

Installing 6KPM Cards in the Magnum 6K32

Up to four front-mounted 6KPM cards may be installed in one Magnum 6K32

Managed Switch unit. Follow these steps to install a 6KPM.

Step 1. Remove top chassis cover. See procedure in Section 3.5.1 above.

Step 2. Placed Granddaughter board (as shown in fig. 3.5.2a and 3.5.2b) on the chassis

built in stand off (female) provided at the front of the 6K32 Main Board and

screw down tightly with the three 5/16 stand-off (male) on the top of the

Granddaughter board The 5/16 stand off has been used to place the daughter

board on the top of the granddaughter board and latch it securely.

Fig 3.5.2b Granddaughter Board placed in modular slot and secured with three 7/16

stand-off’s as shown with arrow mark
