(or half-duplex when off).
5.2.8
6KP8-45LC, Combo 4@ 100Mbps multi-mode -LC small-form
factor and 4@ 10/100 Mbps RJ-45 Connector

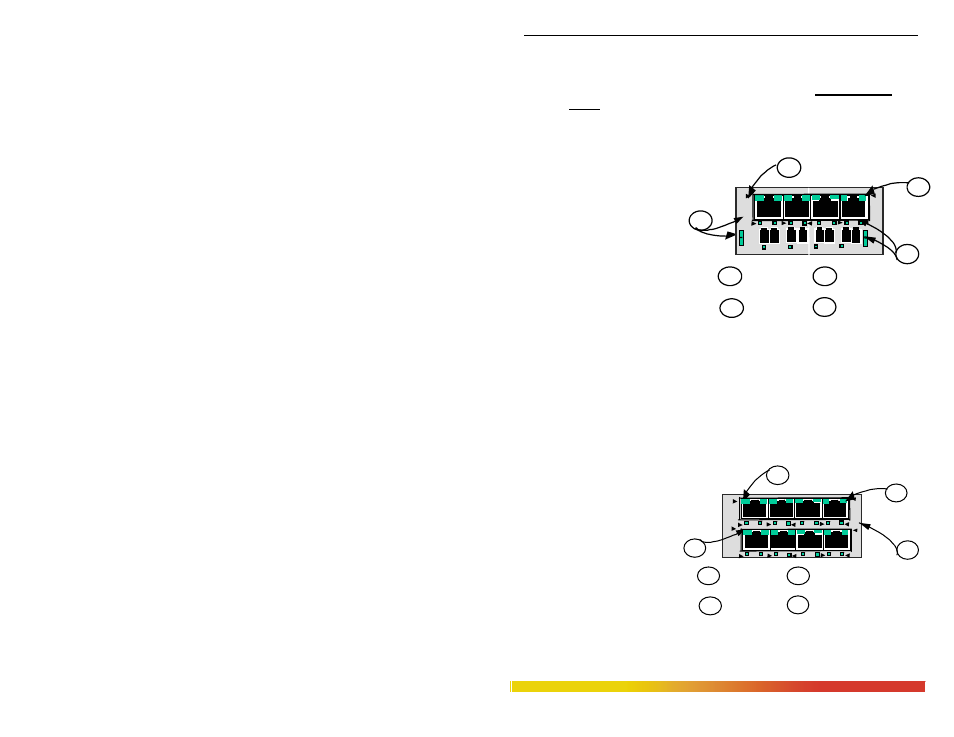

The Magnum 6KP8-
45LC Module is a combo module
with a combination of copper and
Fiber (Small Form Factor) LC
type ports. The small size of LC
connectors allows an advantage of
having more ports on one module.
The 6KP8-45LC is equipped with
4 10/100 RJ-45 ports and 4 LC(
Small form factor) multi-mode
fiber ports.
When installed in a Magnum
6K32 Switch, it supports the standard distances as per mentioned on 5.2.8. and the LEDs
also acts similarly as mentioned above.
5.2.9
6KP8-RJ45 (Twisted Pair), 10/100Mb 8-Port
The 6KP8-RJ45 module supports Ethernet twisted pair segments of any
standard length. It is equipped
with an eight-port RJ-45
connector, and offers 10/100
full / half-duplex auto-
negotiating capability on each
port. The RJ-45 connector is
shielded to minimize emissions
and will allow both unshielded
twisted pair (UTP) and
shielded twisted pair (STP)
cable connections. The 6KP8-
RJ45 module is equipped with a Media Dependent Interface-Crossover (MDI-X) switch,
which controls port#1 for cascaded connection. This feature eliminates the need for a
6KP8-RJ45,
8 Port@ 10/100Mb Copper ports
