indicating port activity (ACT), Link (LK), and FDX or HDX operation
5.2.6
6KP8-45MT, 4@ 10/100Mbps RJ-45 and 4@100Mb multi-mode
FX ,
MTRJ Small-Form-Factor

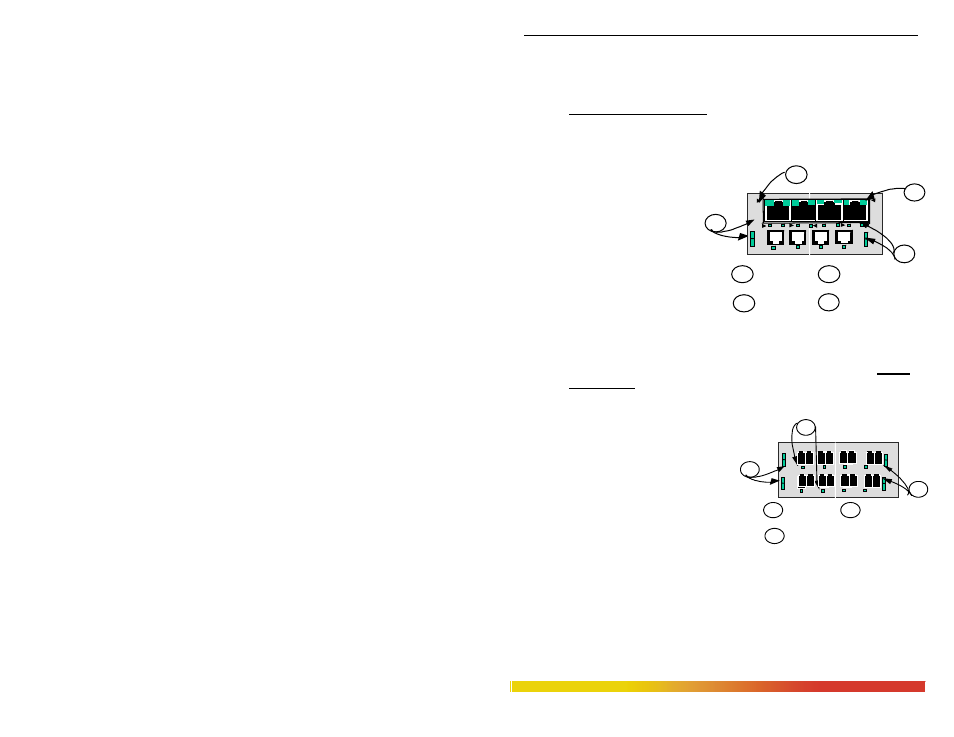

The Magnum 6KP8-45MT
Module is a combo module with
copper and fiber (Small Form Factor)
MTRJ type ports. The small size of
MTRJ connectors give an advantage
of placing more ports on one module.
The 6KP8-45MT is equipped with 4
10/100 RJ-45 ports and 4 MTRJ fiber
ports.
When installed in a Magnum 6K32
Switch, it supports the standard
distances as mentioned on 5.2.3. and the LEDs also act similarly.
5.2.7
6KP8-MLC, 8 ports @ 100Mbps multi-mode LC connector Small-
Form Factor
Magnum 6KP8-MLC is a eight-port
multi-mode fiber LC connector “small-form-
factor” used primarily in 100Mbps fiber-to-
the-desktop links. When installed in a
Magnum 6K32 Switch, it supports fiber optic
cable distances up to the IEEE-standard
100Mbps distance limits, i.e., typically 2km
at full-duplex and 412m at half-duplex.
The compact size of the LC
Connector reduces the size of wiring panels
in wiring closets while providing the advantage of “future-proof” fiber optic technology.
The cable end is a “plug-in” connector with both fiber strands terminated in
one housing that cannot be improperly inserted. Each port has an Activity (ACT) LED
indicating packets being received, a Link (LK) LED indicating proper connectivity with
the remote device when lit, and a FDX/HDX LED indicating full-duplex mode when lit
4
3 2 4 6 8
LK LK LK LK
ACT
F/H
ACT
F/H
2
ACT
F/H ACT
F/H
6KP8-45MT
4 Port@ 10/100Mbps & 4 port @ 100Mbps
Multi-Mode Fiber port
1 3 5 7
10/100 LK
1
F/H ACT
4
FULL/HALF
1
ACTIVITY
LINK 2
3
10/100
FULL/HAL
1 ACTIVIT
LINK
2
3
3
2
1
8-Port@ 100Mbps multi-mode LC fiber port
2 4 6
LK LK LK
ACT
F/
ACT
F/
ACT
F/H ACT
F/H
2 4 6
LK LK LK
ACT
F/
ACT
F/
ACT
F/H ACT
F/H
1 3 5
