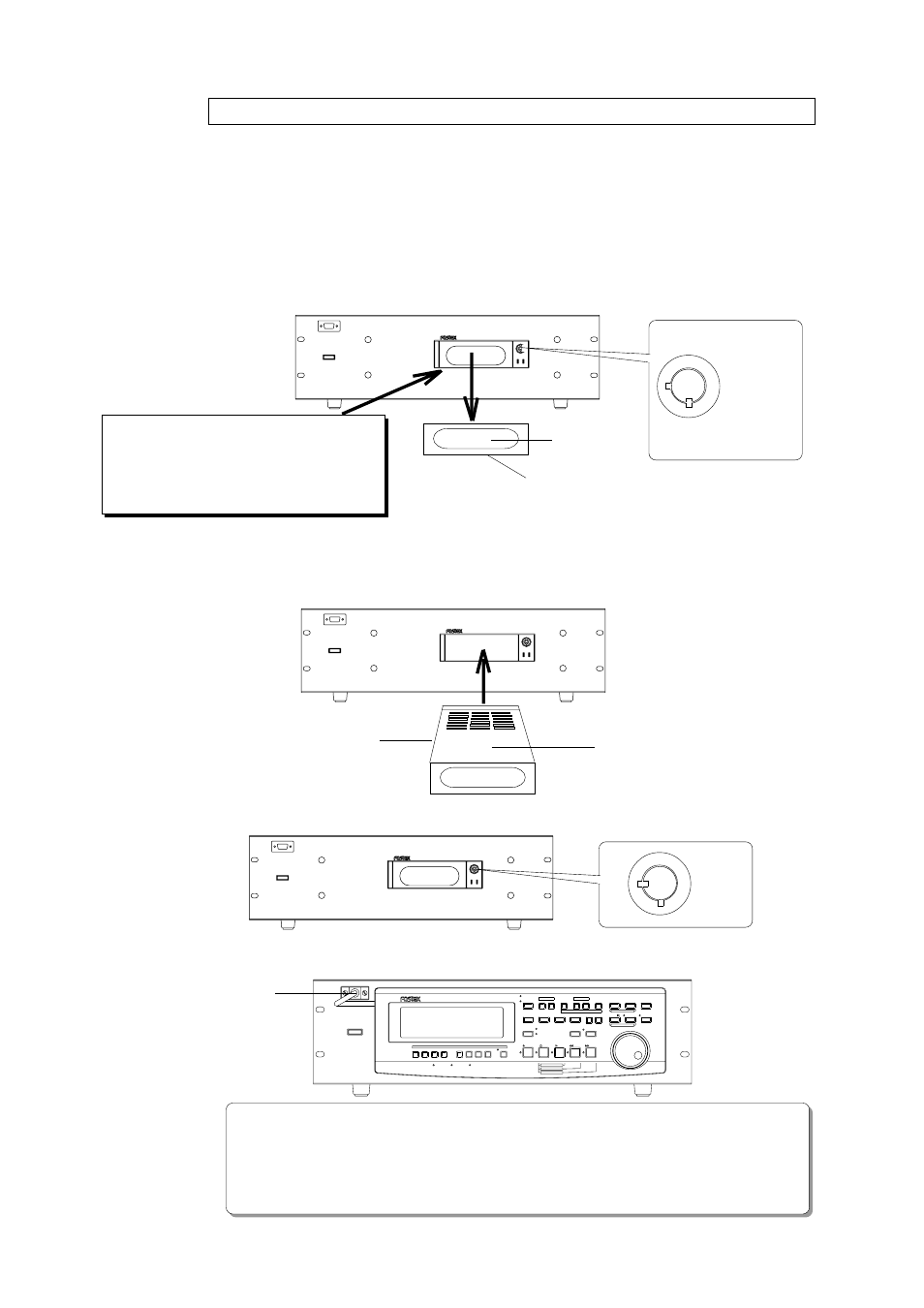

Installing a removable hard disk cartridge
A hard disk cartridge is not installed in the D-160 when it is shipped. You will need
to install a removable hard disk cartridge in the D-160. (You can use an optional
Model 9041 or a hard disk that has been approved for performance and installed
in the removable case that came with the D-160.)
Follow the procedure below to install a new hard disk cartridge. Be sure to format
the hard disk. The following procedure should be performed with the power to the
D-160 turned off.
1. Remove the blank panel from the cartridge slot.
The unit is
shipped from
the factory
with the lock
on the right
o f t h e s l o t
released.
1
2. Insert the hard disk cartridge (e.g., Model 9041) into the slot.
Make sure that you insert the cartridge until it clicks into place. Be sure to remove the
dust cap on the connector of the cartridge case before inserting the cartridge.
Blank panel
2 Model 9041
3. Lock the cartridge with the key included in the package.
3
4
4. Connect the connector of the detachable controller, and install the controller to the D-160.
* When installation is completed, follow the procedure “Formatting a hard disk” on
page "43" to format the hard disk.
* If you are using a hard disk (that has been approved for performance) and installing
it in the removable case that came in the package, refer to “Installing a hard disk in the
removable case” on page "42."
Do not try to insert your fingers into the removable
hard disk cartridge drive after the cartridge has
been removed. Otherwise, electric shock or
unexpected injury could result.
