6. Multitrack system using a D-90 / D-80 (Ver. 2) / DMT-8 (Ver.2/VL)
This section explains a multitrack system that uses the D-160 as master and a D-90, D-80,
D-80Ver. 2, DMT-8 Ver. 2, or DMT-8VL as slave. Using the D-160 as a master device
allows for Chase Lock operation using the Vari-pitch function or the MTC.
The example explained here uses Fostex DMT-8 Ver. 2 as a slave machine, but you can
use another model with the same settings to configure the multitrack system.
A DMT-8, which does not have a Slave Sync function, cannot be used in this system.
However, it can be used as a master device. Refer to the “Hint” described later.
Note the following when you use the D-160 along with a D-90, D-80, D-80 Ver. 2, DMT-8 Ver.
2, DMT-8VL, or DMT-8.
1. Use only Programs P1 - P5.
2. Select 44.1kHz for the sampling frequency.
3. Select S/P DIF for the digital signal. An adat digital signal can be used only on the D-90.
* Initialize the D-160 and the DMT-8 Ver. 2.
* Check the Programs on both machines (P1-P5).
* Set the sampling frequency on both machines to 44.1kHz.

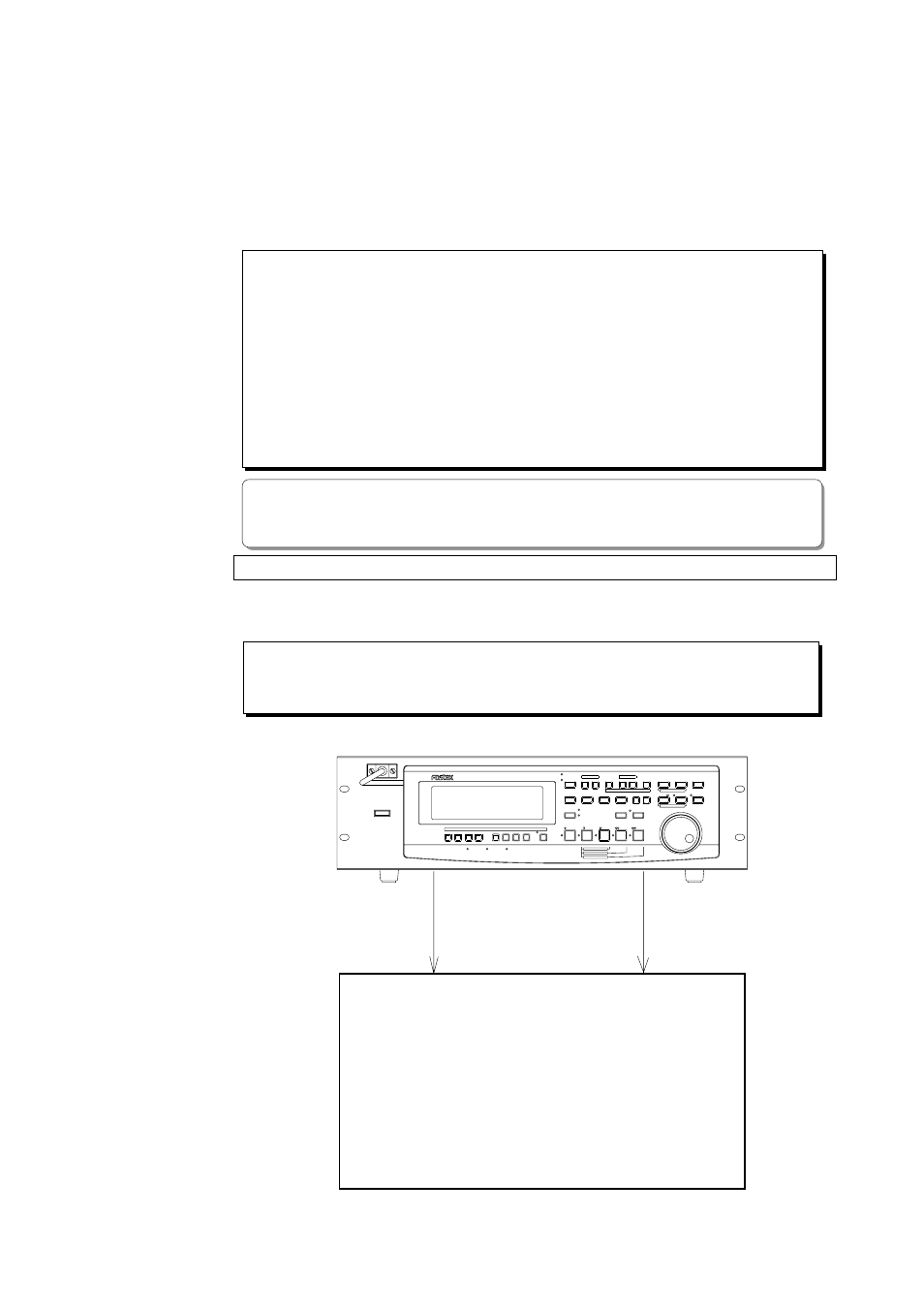

Connecting the devices
* Connect DATA OUT of the D-160 to DATA IN of the DMT-8 Ver. 2, and MIDI OUT of the
D-160 to MIDI IN of the DMT-8 Ver. 2.
The best setup is to supply the MTC and S/P DIF digital signal from the master device so
slave operation will be successful.
MIDI IN
DATA OUTPUT 1-8
DATA IN
D-160 (Master)
DMT-8 ver.2(Slave)
MIDI OUT
