40. Hard disk access LED
This LED lights up or blinks when the hard disk is writing or reading data.
Do not turn the power off while this LED is lit or blinking. Otherwise, data on the hard disk may
be damaged.
41. MIDI Time Code In LED [MTC IN]
This LED lights up when MTC (MIDI Time Code) is input from an external MIDI device to
the MIDI IN connector of the D-160.
42. Punch In/Out jack [PUNCH IN/OUT] (Connector: PHONE jack)
Connecting the optional foot switch will let you control punch In/Out (and rehearsal)
recording. Use a Fostex Model 8051 foot switch.
Be sure to use an “unlatch type” foot switch if you use a foot switch other than the Model 8051.
Otherwise, a malfunction could occur.
* Refer to page "81" for information about Punch In/Out recording using the foot switch.
50 49 51
48 47 43 44 45 46

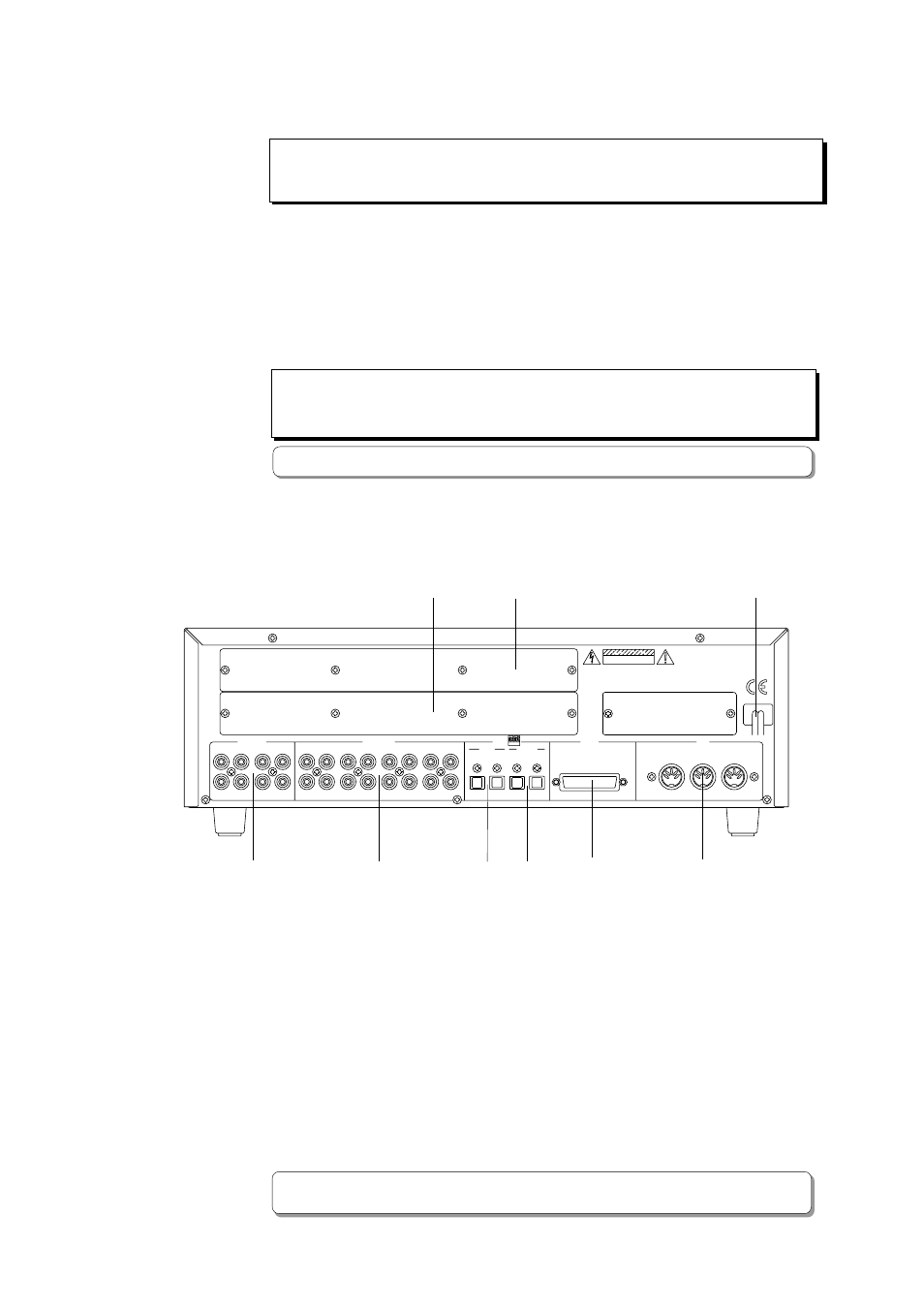

43. Input jack [ANALOG IN 1-8] (connector: RCA pin)
Analog audio signal from the mixer is routed here.
Connect this jack to the Group out (BUSS OUT) connector of the mixer.
44. Output jack [ANALOG OUT 1-16] (connector: RCA pin)
Analog audio signal of the D-160 is output here.
Connect this jack to the TAPE IN connector of the mixer.
45. Data Input connector [DATA INPUT 1-8, 9-16] (connector: OPTICAL)
Use this connector to load song data (audio + setup data) from an external device to the
D-160. It is also used to input S/P DIF digital signal (from a DAT, CD, or MD) or adat
digital signal (from RD-8, CX-8, or adat). DATA INPUT 9-16 is constantly fixed to "adat"
input.
* Refer to pages "102" and "165" for information about "LOAD" function.
* Refer to page "60" for information "Digital Recording."
